SUNWARD SWE90F-1 - Boundary Dimension

120

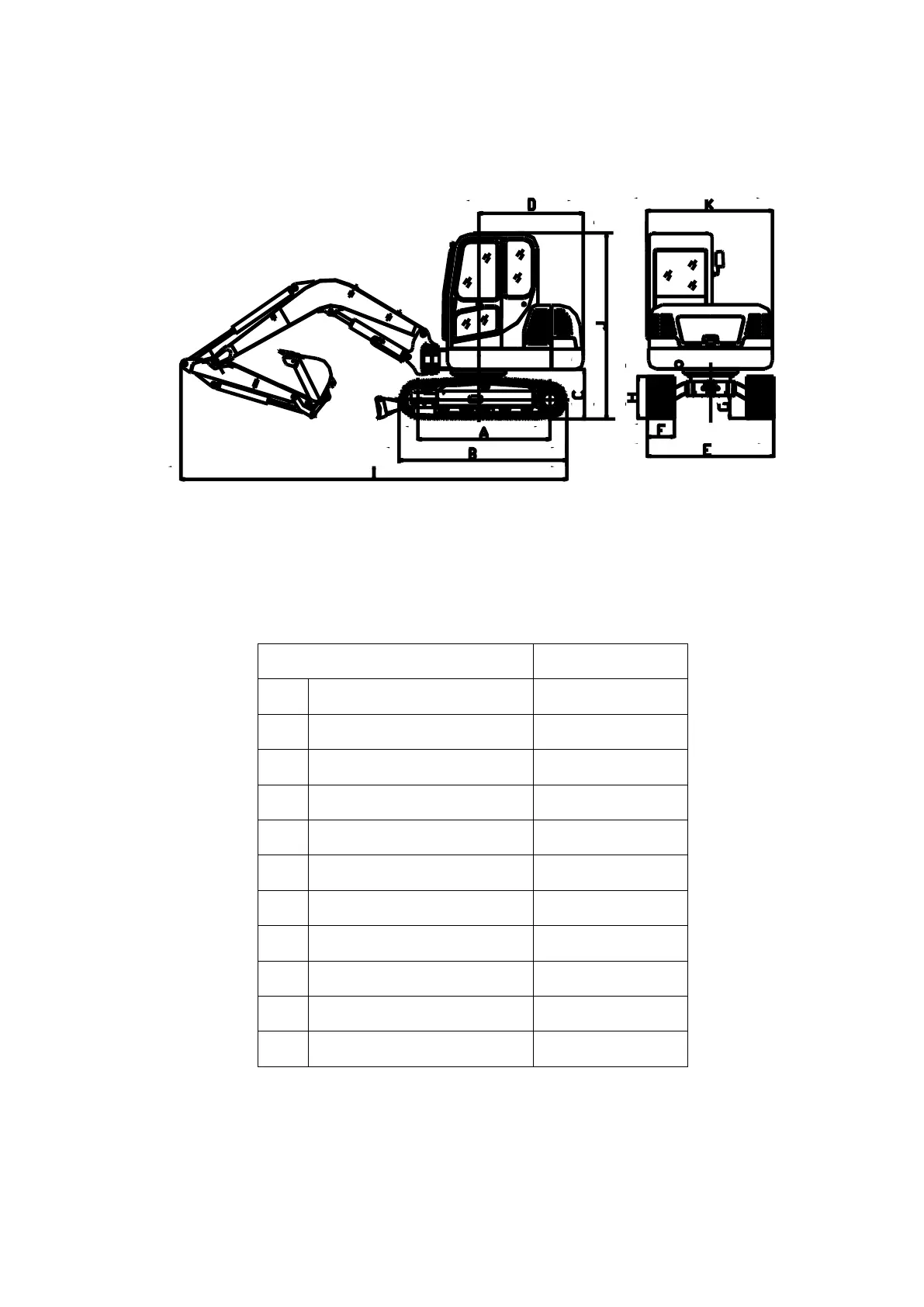

6.1.2 Boundary Dimension
Machine Model
SWE50B
A
Tumbler distance
1900
B
Overall length of crawler
2425
C
Platform ground clearance
665
D
Tail swing radius
1500
E
Chassis width
1850
F
Track shoe width
400
G
Chassis ground clearance
310
H
Crawler height
575
I
Overall length
5560
J
Overall height of cab
2570
K
Upper structure width
1900
Unit：mm
