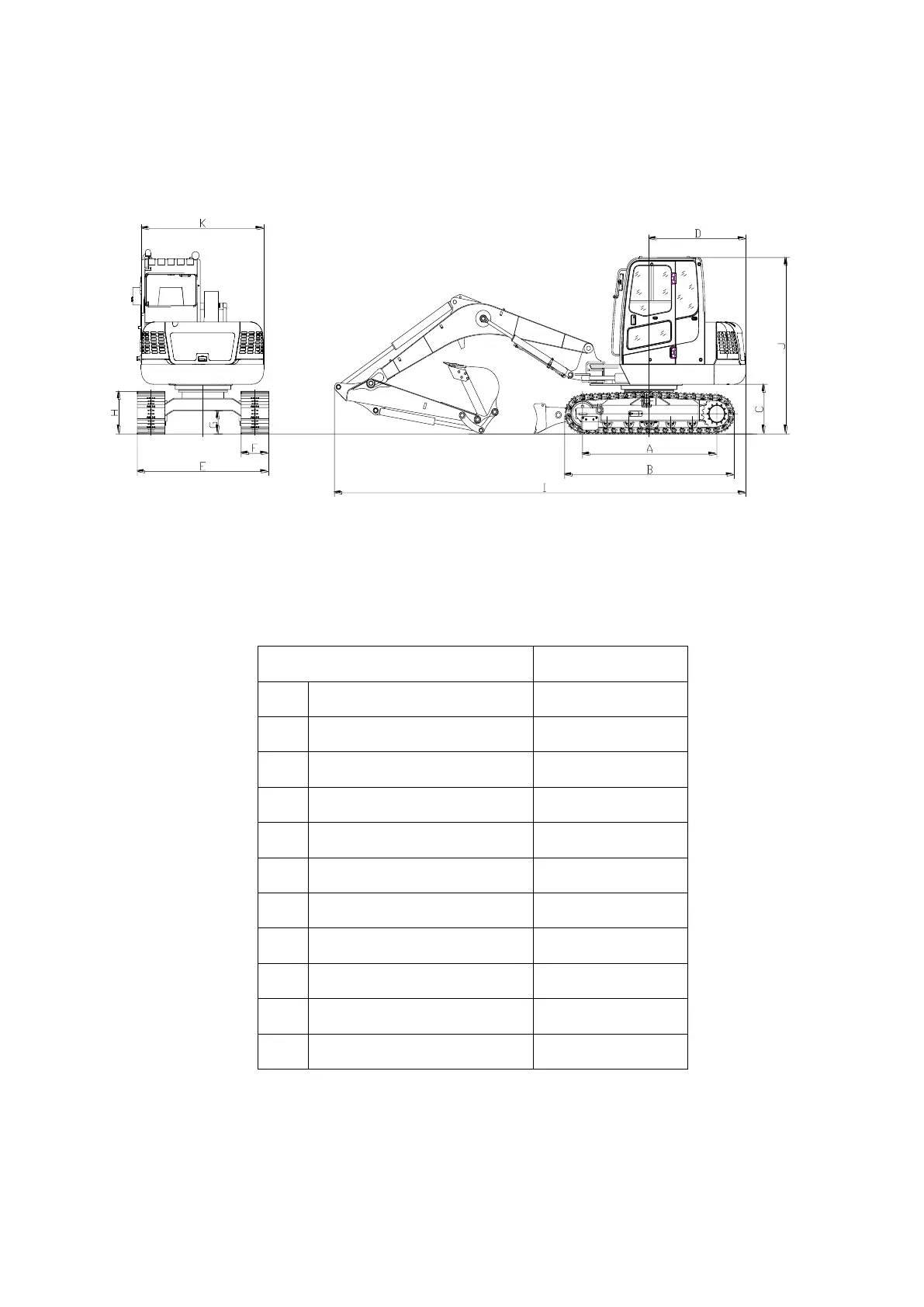

6.4.2 Boundary Dimension
Machine Model
SWE80B
A
Tumbler distance
2200
B
Overall length of crawler
2785
C
Platform ground clearance
745
D
Tail swing radius
1680
E
Chassis width
2150
F
Track shoe width
450
G
Chassis ground clearance
340
H
Crawler height
640
I
Overall length
6805
J
Overall height of cab
2665
K
Upper carriage width
2160
Unit：mm
