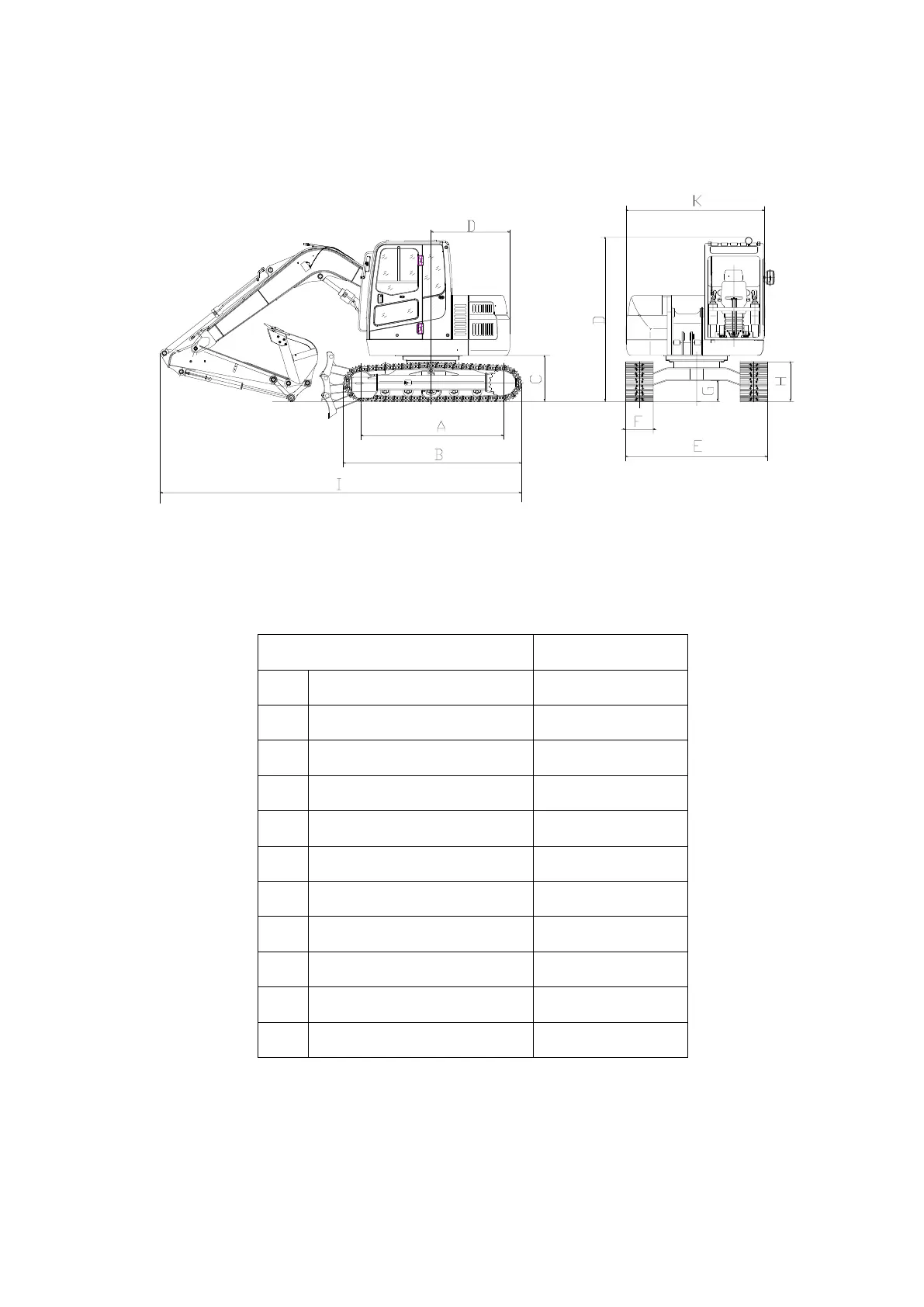

6.5.2 Boundary Dimension
Machine Model
SWE90UB
A
Tumbler distance
2335
B
Overall length of crawler
2920
C
Platform ground clearance
760
D
Tail swing radius
1295
E
Chassis width
2320
F
Track shoe width
450
G
Chassis ground clearance
345
H
Crawler height
660
I
Overall length
5920
J
Overall height of cab
2685
K
Upper carriage width
2425
Unut ：mm
