SUNWARD SWE90F-1 - Throttle Control

28
2.8 THROTTLE CONTROL
SWE50B/SWE50F/SWE60B/SWE60F accelerograph control
SWE50B/SWE50F/SWE60B/SWE60F engine accelerograph rotary knob adjusts engine rev (As figure 2.8.1).
When accelerograph rotary knob is lifted to the top, engine runs at high idle speed; lower it to the bottom,
engine runs at low idle speed(while lifting and lowering, the red knob should be pressed down at the same
time), adjust accelerograph between upmost and bottommost to control engine revs, and also you can screw
black hand wheel to adjust accelerograph imperceptibly.
Engine throttle push rod is used to adjust engine revs (Figure2.8), operate push pole can select different revs in
different shifts, forward push pole increase rev of engine, backward push pole decrease rev of engine.
SWE70B/SWE70F/SWE80B/SWE80F/SWE90UB/SWE90UF throttle control
Engine throttle rotary knob is used to adjust engine revs (Figure2.8.2). operate throttle knob can choose

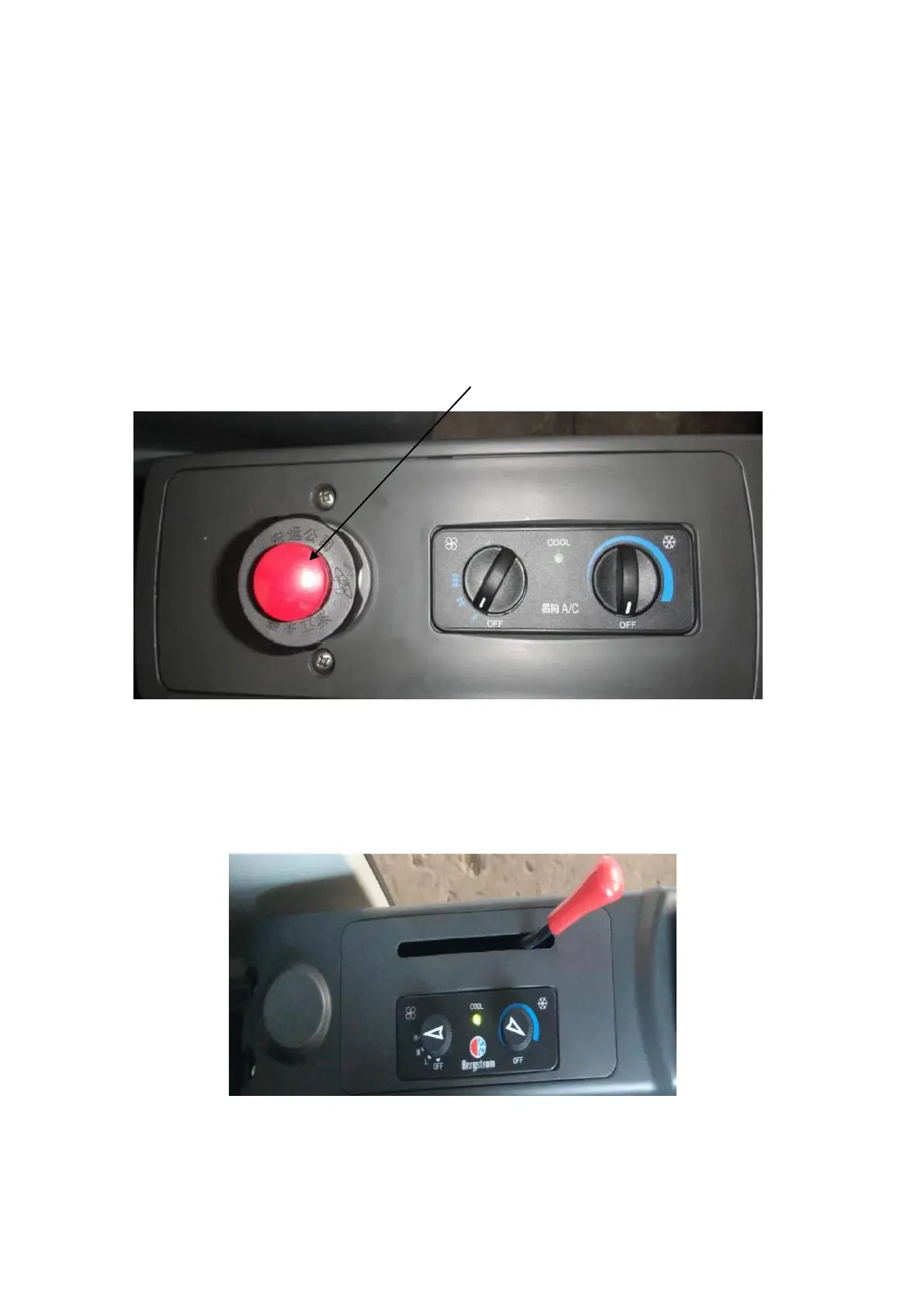

Accelerograph rotary knob
Figure 2.8
Figure 2.8.2
