SUNWARD SWE90F-1 - PILOT CONTROL JOYSTICK

27
 After shut off air conditioner, it must be
5 or more minutes later to permit
starting air conditioner again.
 It had better use the air conditioner
when the engine operates.
Screw knob B to adjust temperature.
2.7 PILOT CONTROL JOYSTICK

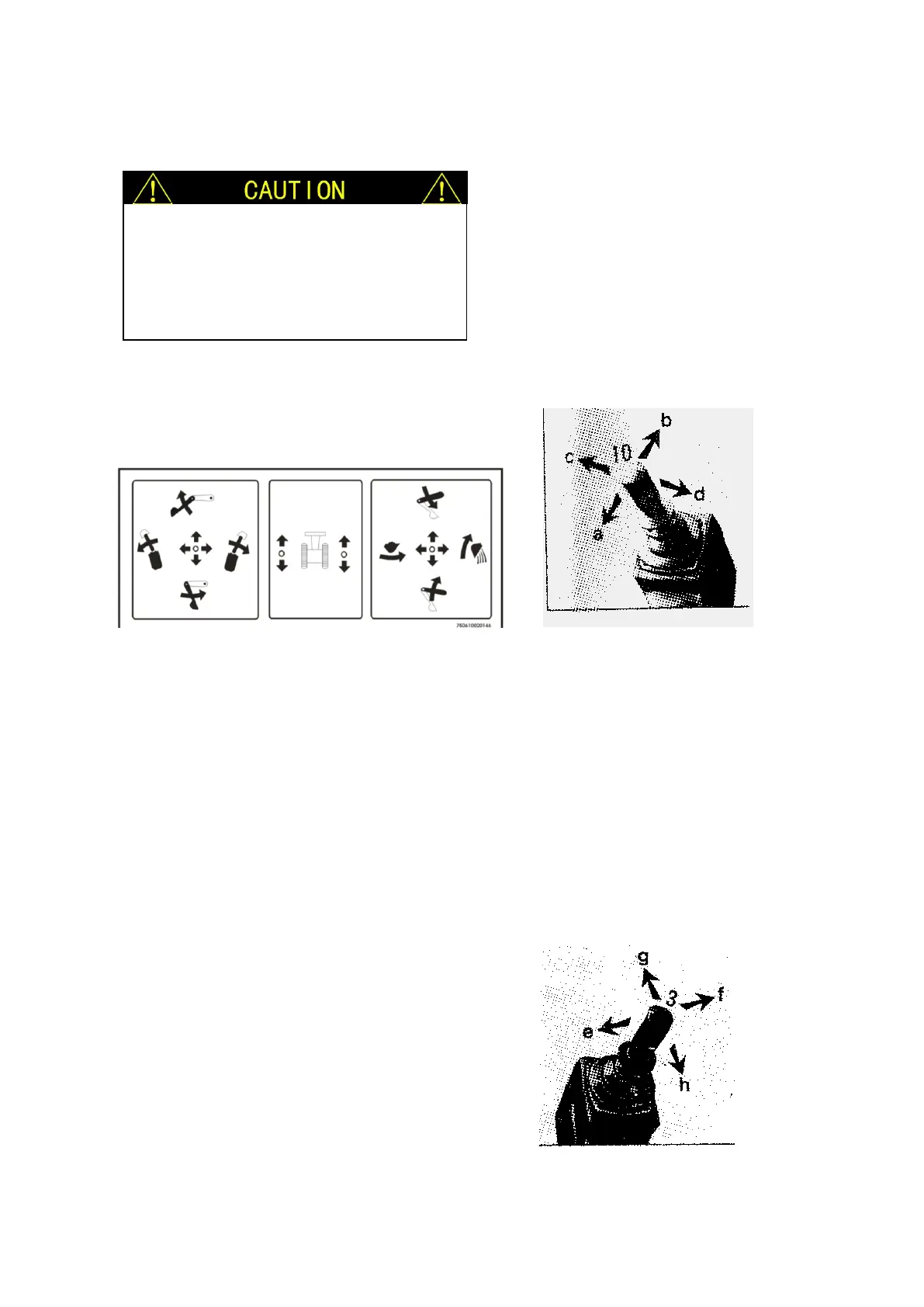

Operation marks (As figure 2.7.1)：
The machine equipped with left and right pilot control joystick.
The right pilot joystick controls following movements (As figure 2.7.2):
a —— lift boom
b —— lower boom
c —— backhole loading, or grab bucket rotate clockwise
d ——backhole dumping, or grab bucket rotate anticlockwise
The left pilot joystick controls following movements
e—— rotate upper carriage anticlockwise
f —— rotate downcarriage clockwise
g —— extend arm
h —— retract arm
Composite movements can be achieved by two joysticks’
assorted operation.
Also, horn button and breaker hammer button are
equipped on joysticks.
Figure 2.7.1
