SUNWARD SWE90F-1 - Boundary Dimension

162

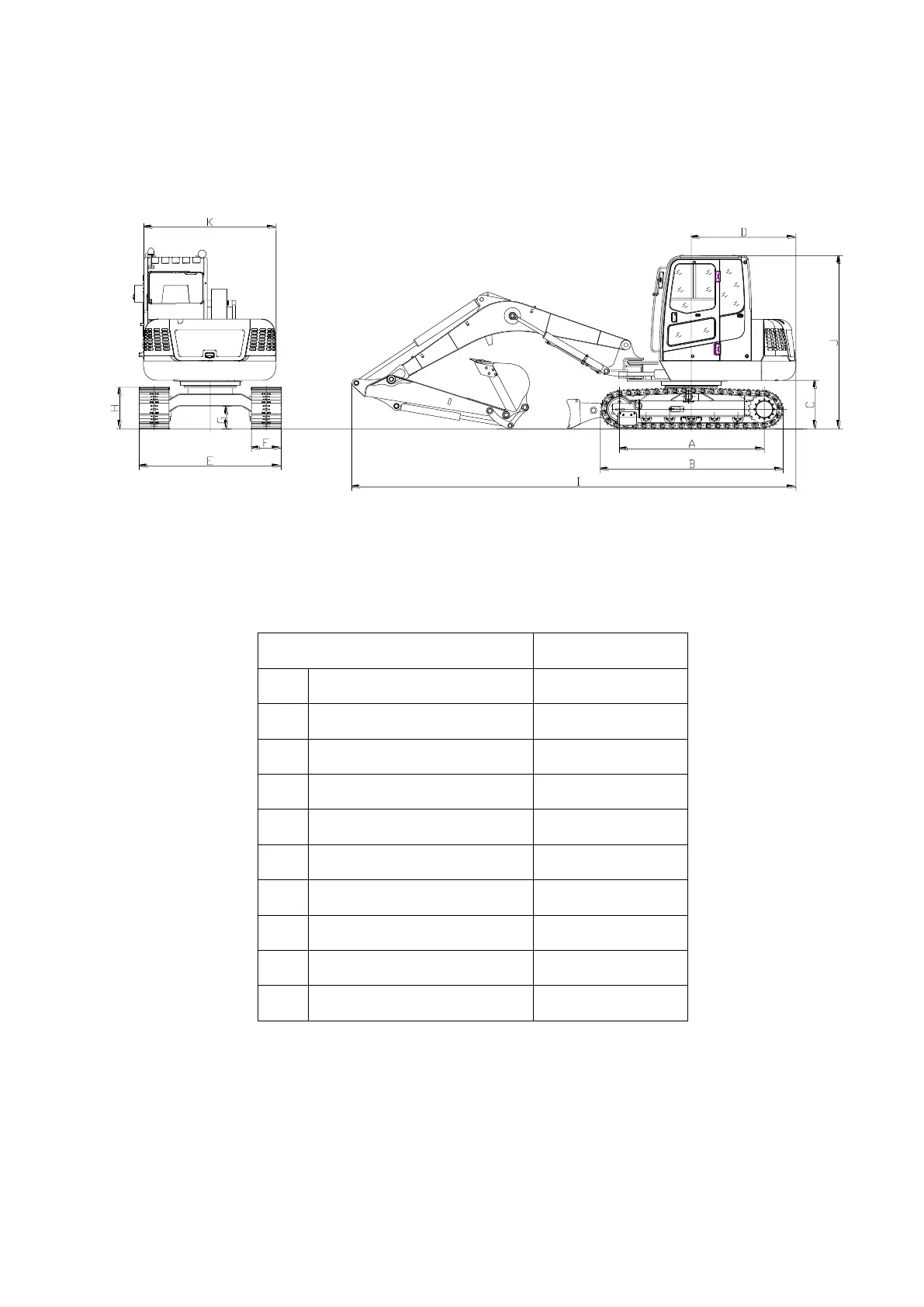

6.7.2 Boundary Dimension
Machine model
SWE80F
A
Tumbler distance
2200
B
Overall length of crawler
2785
C
Platform ground clearance
745
D
Platform slewing radius
1680
E
Chassis width
2150
F
Track shoe width
450
G
Chassis ground clearance
335
H
Crawler height
640
I
Overall length
6730
J
Overall height of cab
2665
Unit：mm
