26

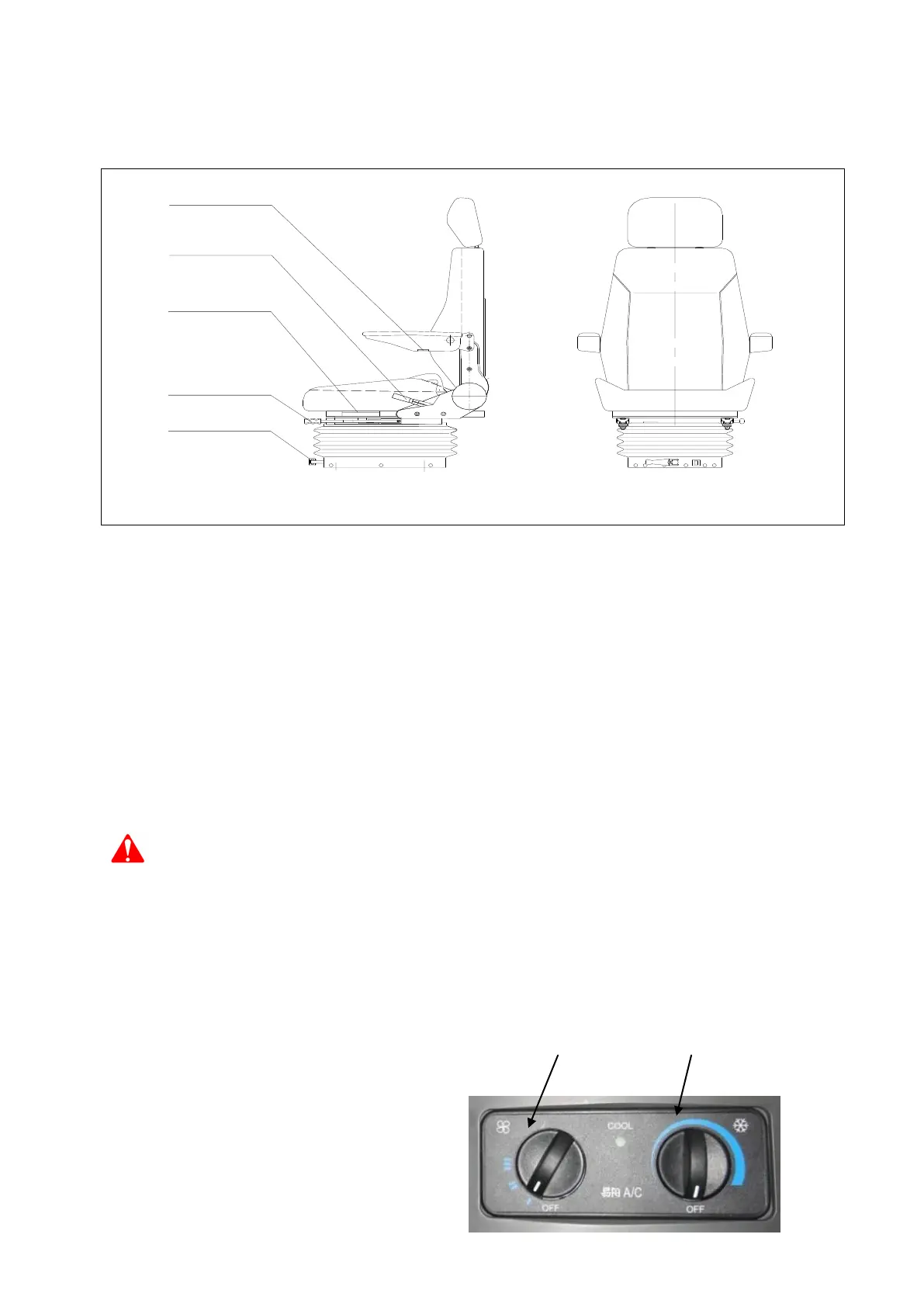

2.5 SEAT ADJUSTMENT
Armrest adjustment knob A
Recliner knob B
Height riser knob C
Slider knob D
Weight adjustment knob E
SWE series cab seat is a specially designed deluxe driver seat for construction machineries. The backrest and
cushion are both designed according to the body engineering ergonomics, which offers the driver the most
comfort. The seat is assembled with a suspension device, which can help to reduce harmful vibration
effectively and ease the fatigue of the driver.
Technical Features
(1) headrest adjustment: imposed the upward force the headrest can make the head pillow to proper height.
(2) backrest adjustment: lightly back seat backrest t, upward rotate handle, push backrest to the proper position
with the back, loosen the handle, the backrest can be locked.
(3)damping adjustment: rotate handwheel, according to road conditions and driver weight to preset force to the
needed numerical value. Do not adjust white pointers to the position which is less than 40 to more than 130.
(4) the level adjustment: upward move rod which is under the seat, the seat forward (back) to the proper
position, loosen the tie rod, the seat can be locked.
Caution
(1) Only adjust the seat when the driver is in safety condition
(2) For slider and recliner adjustment, please make sure the knob is in the proper position; only when
the adjustment mechanism parts are separate, then do the adjustment.After all the adjustments,
please make sure every knob stays in the proper position and every part is locked.
2.6 AIR CONDITIONER
Air conditioner (As figure 2.6), functions are as below:
Wind speed adjustment:
Screw knob A to adjust wind speed.
Temperature adjustment:
