SUNWARD SWE90F-1 - Boundary Dimension

127

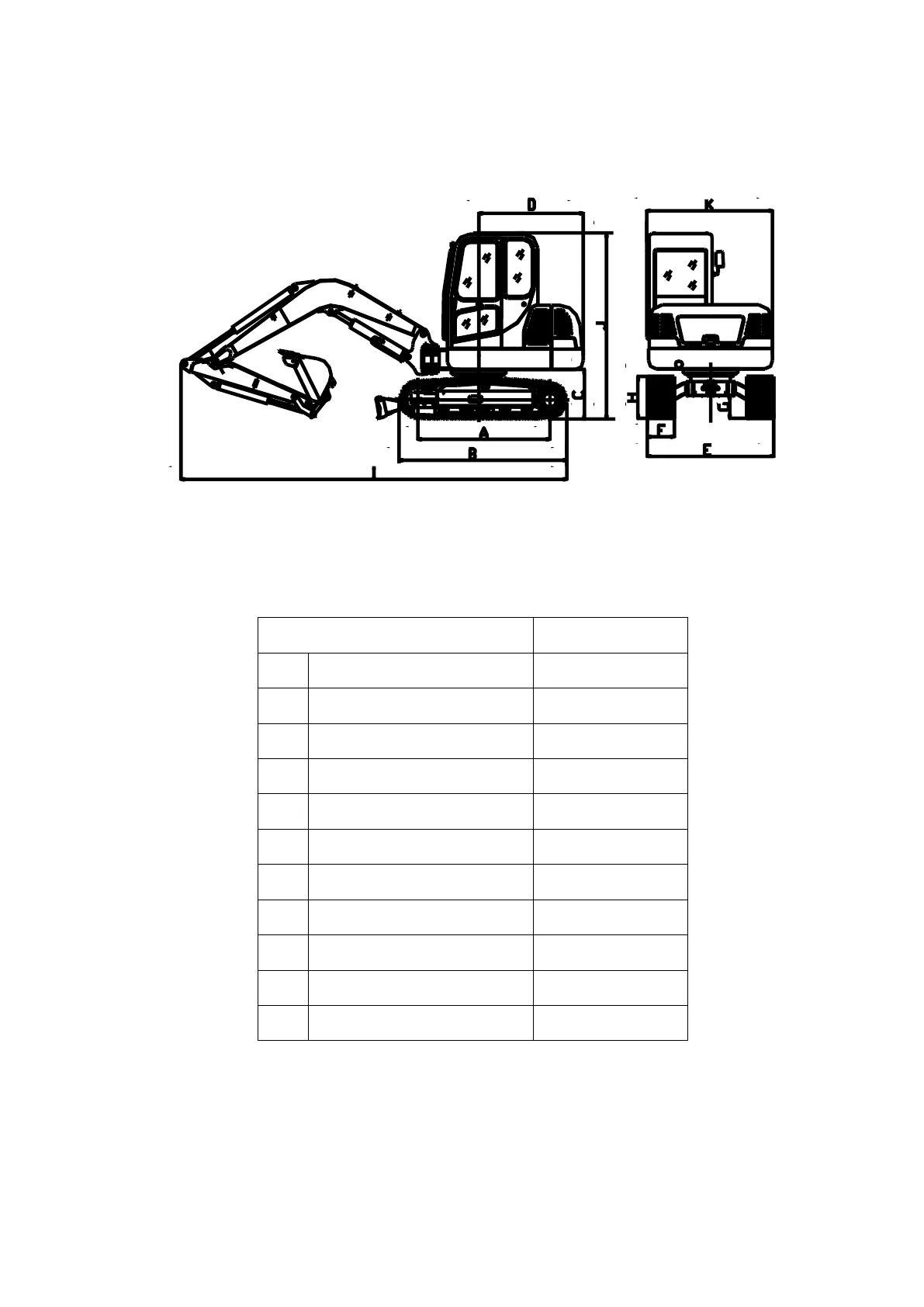

6.2.2 Boundary Dimension
Machine Model
SWE60B
A
Tumbler distance
1965
B
Overall length of crawler
2495
C
Platform ground clearance
700
D
Tail swing radius
1600
E
Chassis width
1880
F
Track shoe width
400
G
Chassis ground clearance
320
H
Track height
595
I
Overall length
5875
J
Overall height of cab
2615
K
Upper structure width
1900
Unit：mm
