52

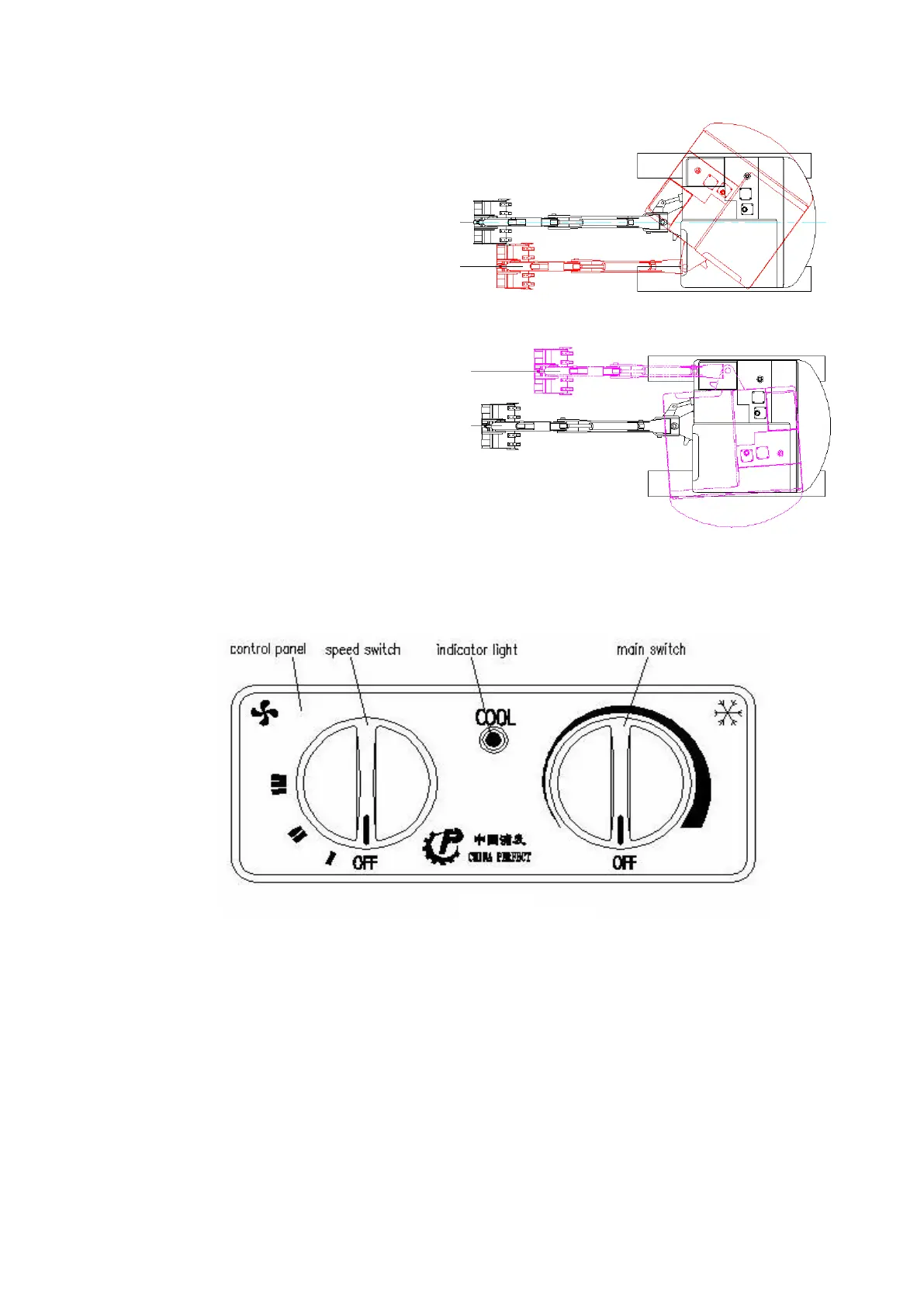

A The distance from superstructure central line to left
swing.
B The distance from superstructure central line to
right swing.
3.10 AIR CONDITIONER OPERATION
Basic operations
Aeration operation
(1) As figure 3.10.1 shows, counter-clockwise turn the main switch to OFF.
(2) As figure 3.10.1 shows, clockwise turn the speed switch to I, II or III, you can make low, moderate and
high wind speed.
(3) As figure 3.10.3 and 3.10.4, turn the wind exit to a proper direction, you can choose proper wind direction.
(4) As figure 3.10.1 shows, counter-clockwise turn the speed switch to OFF to shut down the whole system.
