SWL2820 Operator’s Manual
31
Because the cabin is quite heavy and it needs to operate the lock device while raise the
cabin, two or more persons are needed to raise cabin.
3.4.6 SEAT

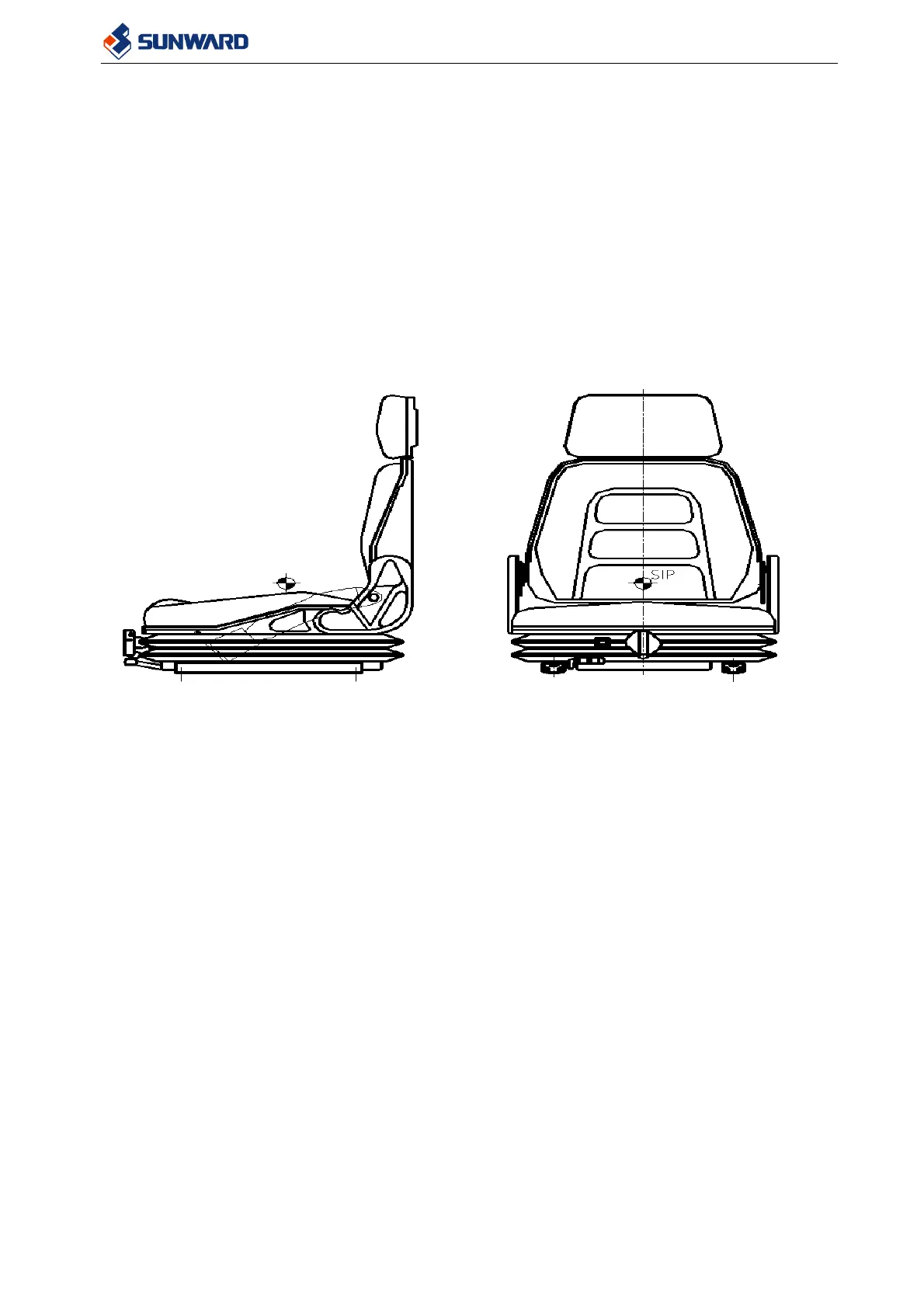

Sunward skid steer loader seat is a specially designed deluxe driver seat for construction
machineries. The backrest and cushion are both designed according to body engineering
ergonomics, which will offer driver most comfort. The seat is assembled with suspension, which
helps to reduce the harmful vibration effectively and ease the fatigue of driver. The seat can be
adjusted forward and backward which supply the best comfortable position for driver. When use
the machine first time or driver changed, the driver should adjust the seat according to his own
status.
(1) Body weight adjustment
According to operator body weight，rotate adjusting handle in the front middle of seat by hand
until feeling comfortable。Rotating handle anti-clockwise，vibration rigidity reduced；
Rotating handle clockwise，vibration rigidity increased，suspension vibration device can be
adjusted in no level according to body weight of 50-130kg。
(2) Forward and backward adjustment
Raise forward and backward adjusting handle in the right of seat by hand，then push or pull
handle along seat front and back direction to make it in ideal position，put down the handle
and lock automatically，the seat front and back adjusting distance is 210mm, the adjusting
clearance is 10mm。
(3) Armrest angle adjustment
While adjusting the armrest angle, put up the armrest to the proper angle, then rotate the
adjustment knob until it is on locking position, by which adjustment is done.
Attention：
Only adjust the seat when the driver is in safety status.
For slider and recliner adjustment, please make sure the knob in the proper position; only
when the adjustment mechanism parts are separate can you do the adjustment.
After all the adjustment, please make sure every knob stays in proper position and every
part is locked.
