SWL2820 Operator’s Manual
40
3.17 ENGINE HOOD
Never open engine hoods while the engine is
running.
Never start the engine with engine hood open,
only when the maintenance procedure makes it
necessary.
Do not maintain the engine hood open without
the safety bar engage in the cylinder.
To open the engine hood, press the locking device by lift
the latch and raise the engine hood. A safety bar is installed in the cylinder. Lock this safety bar
every time you raise the engine hood.
To close the engine hood, unlock the engine safety bar and press the cover down until the lock
engaged.
3.18 REAR COVER
Important
The rear cover can only be opened after open
the engine hood.
To open the rear cover you must open first the engine
hood. There is a lever that allows you to open the rear

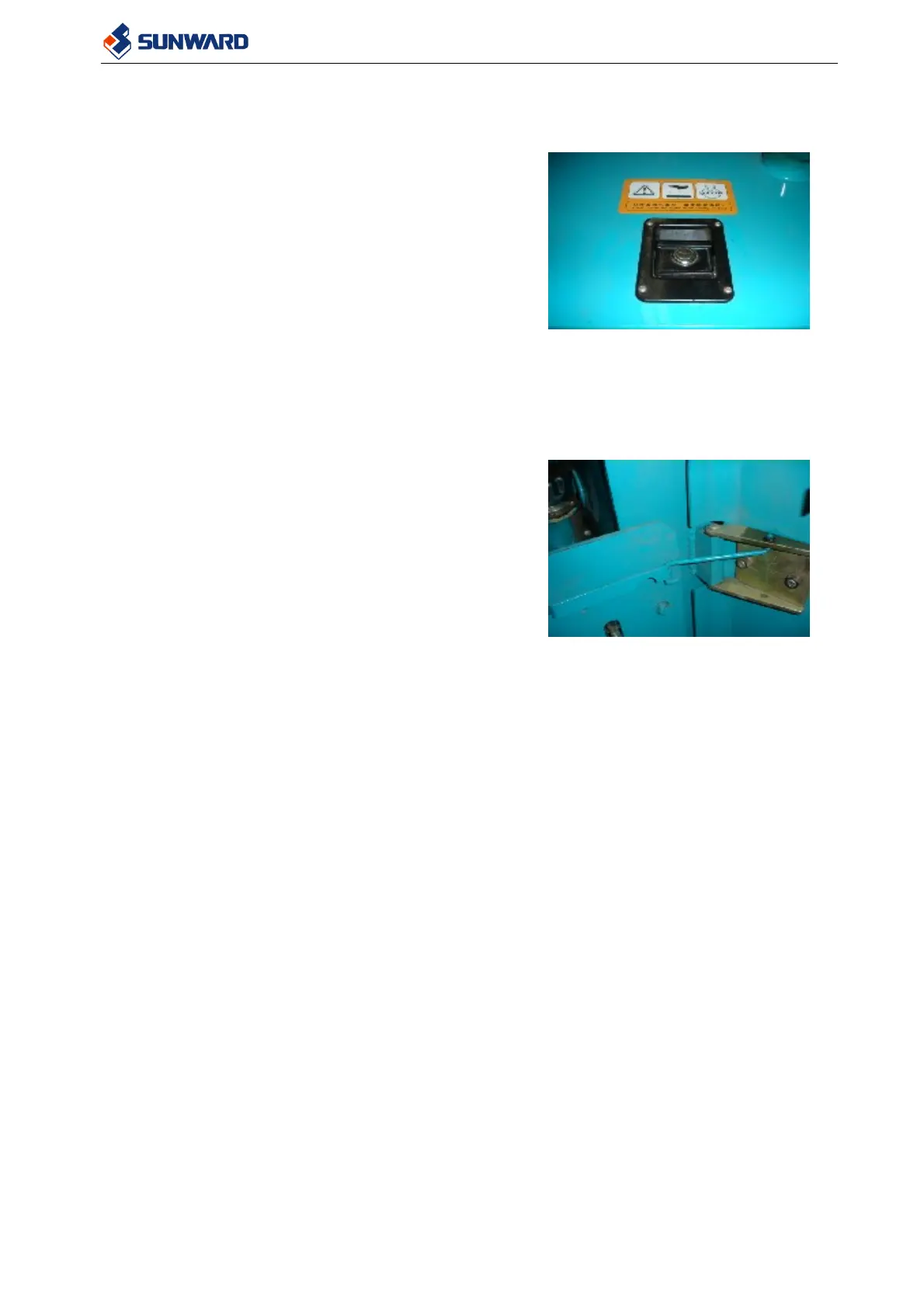

cover (See the picture below).
Lift up the lever and at the same time turns the door.
Once you have disengaged the lock turn the door to the maximum and fix this position with the
retainer. For engage the retainer you just need to turn the restrainer and rest it to the rear cover
once you have turned the door to the maximum.
To close the rear cover disengaged the restrainer, turn the door and press it against the chassis.
3.19 BATTERY
Complete with battery manual.
