SWL2820 Operator’s Manual
37
3.10.1 FASTEN THE SEAT BELT
To fasten the seat belt, the operator needs to be seated and then follow these steps:
1. Take first the male clasp and introduce it into the female clasp until the blocking
position.
2. Once it is in a blocking position wait until the belt rolls up the belt to a tight position.
3.10.2 UNDO THE SEAT BELT

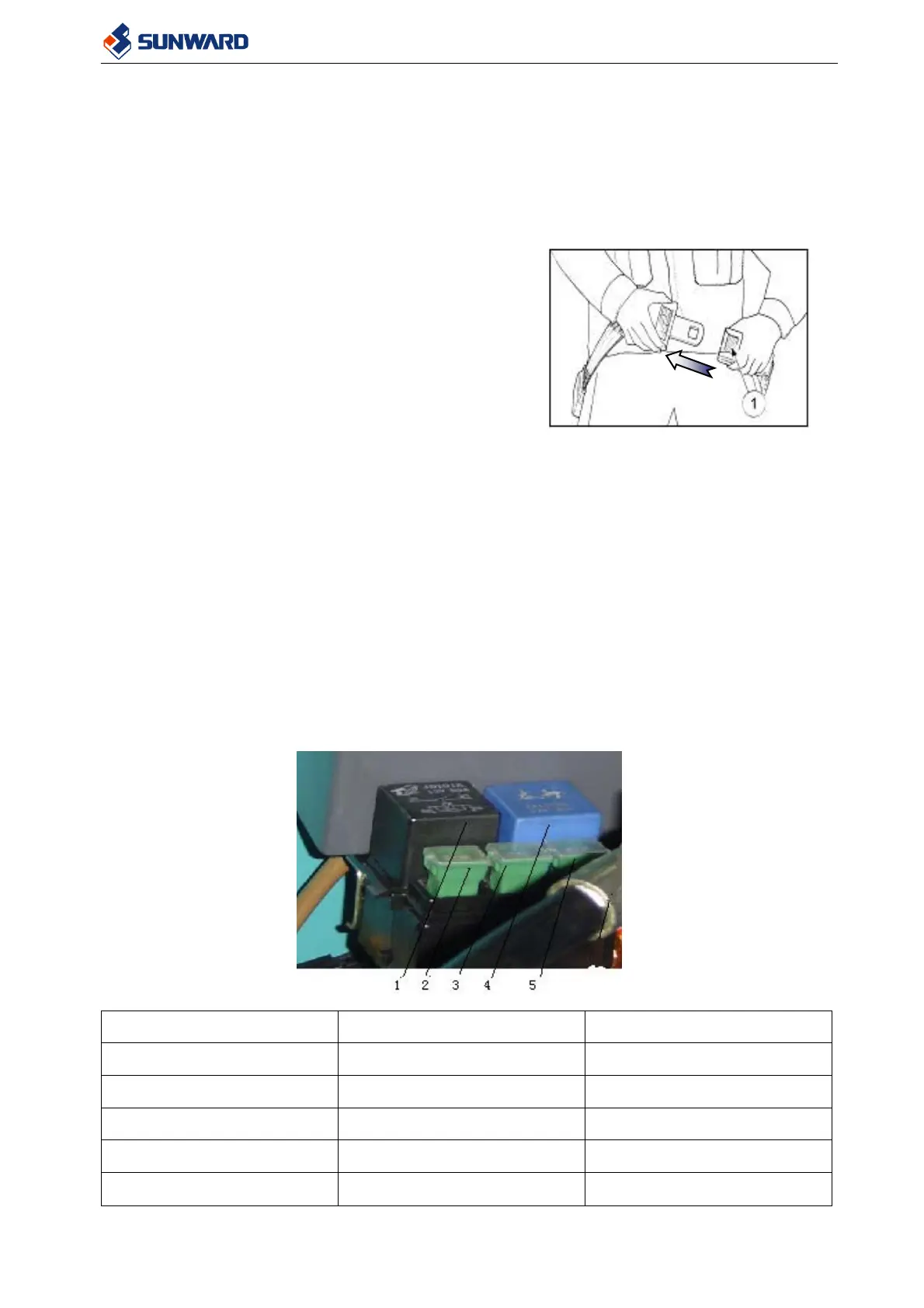

To undo the seat belt just press the button (1) shown in
the picture and wait until the belt rolls up.
For checking if the seat belt works correctly, just pull
strongly form the belt once the belt is fasten. The belt
should block you pulls. In case the belt does not block
your pulls, repair or remove it immediately.
3.11 AUTO-LEVELLING SYSTEM
The auto levelling system consists in maintain the bucket parallel to the floor when the boom is
moving up. It helps the operator to maintain the bucket so that the load not falls down when the
boom goes up.
The auto leveling system is always operational.
3.12 FLOATATION SYSTEM
A special valve activates the floatation system .When the right joystick was put front and the
joystick and the valve absorbed together, the boom floating function was started. It is very
useful with a bucket for levelling.
3.13 Electrical control box
1．The following table shows the position of the fuses and relays in engine room.
Position Descriptions Location
1 Starter relay see photo
2 Starter fuse see photo
3 Fuse of fuel valve see photo
4 Relay of fuel valve see photo
5 Main Fuse see photo
