7 OTHER DATA

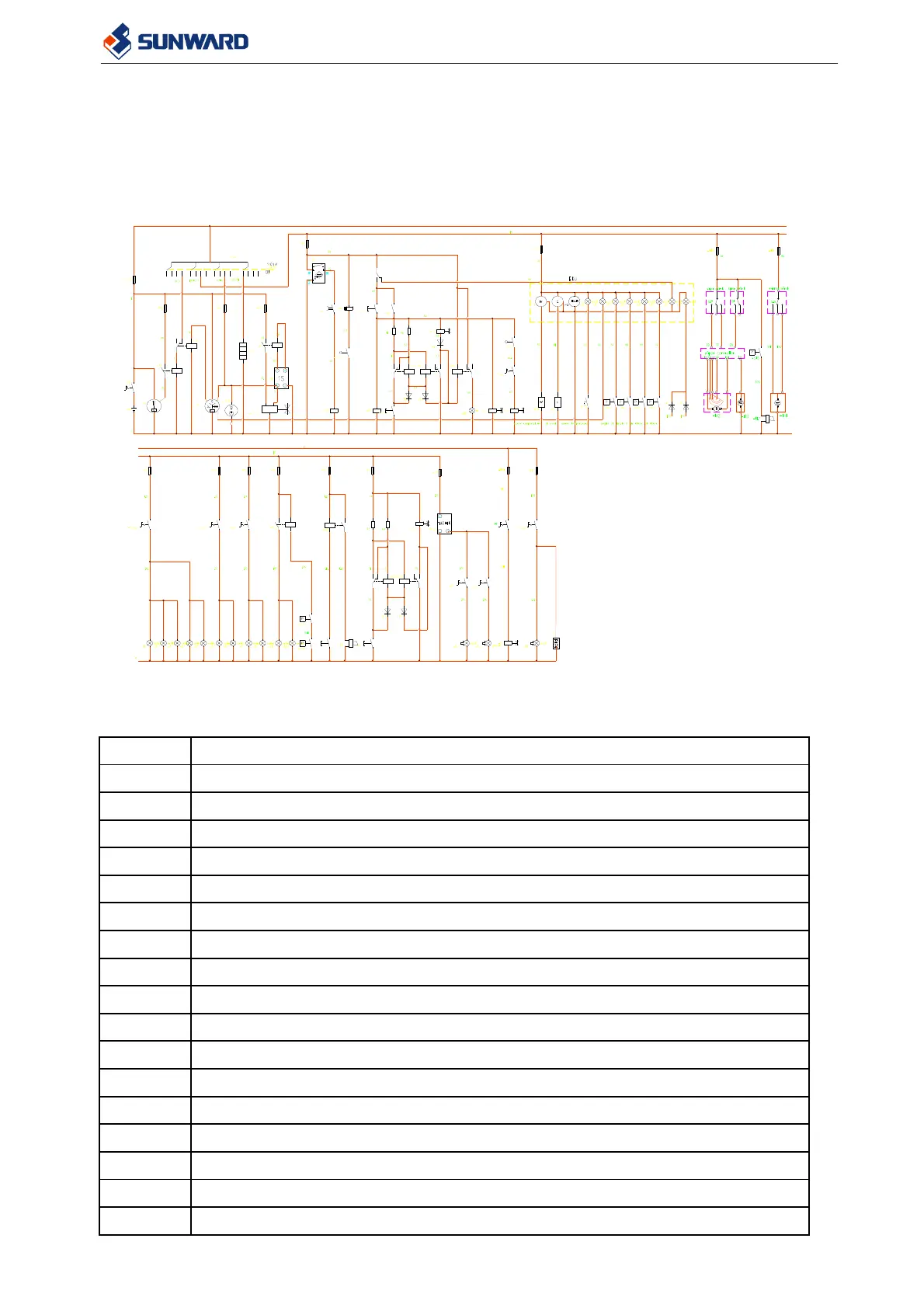

7.1 ELECTRIC DIAGRAM
7.2 ELECTRIC ELEMENTS CHART
Code Name and function
BAT Battery 12V
G Alternator
M1 Starter
F00 Main fuse
F01 Starting fuse
F02 Fast pull fuse
F0 Start switch fuse
F1 Safety switch fuse
F2 Meter fuse
F3 Clearance light fuse
F4 Head work lamp fuse
F5 Rear work lamp fuse
F6 Parking brake light fuse
F7 Horn fuse
F8 Float valve fuse
F9 Turning light fuse
F10 Beacon lamp fuse
