3.14 FUSES
The electric circuit is equipped with fuses that maintain the amperage of the electric circuit
under a maximum allowed. Most of fuses are grouped in one box located on the right side of the
cabin .

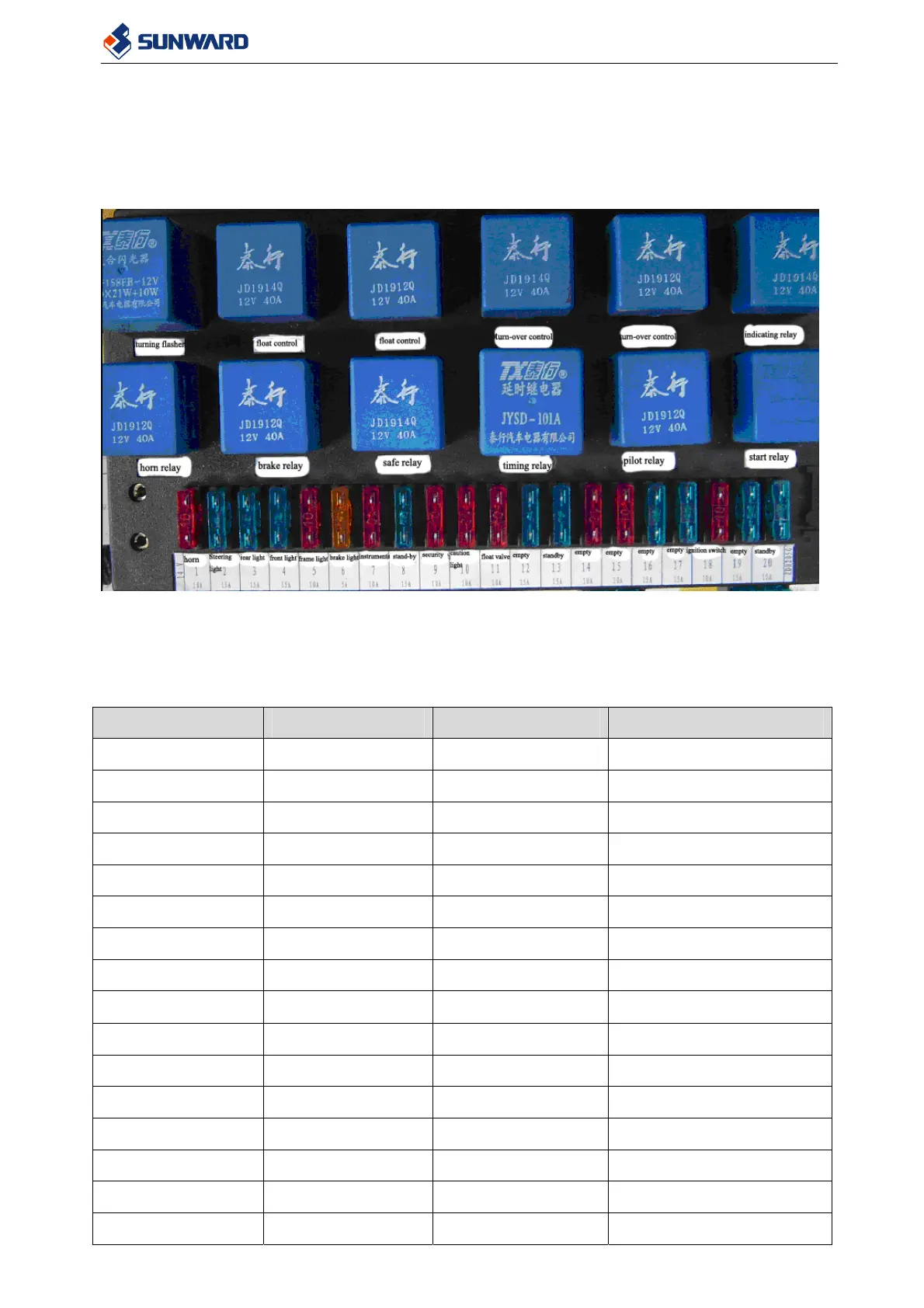

The following table shows the fuses of the electric system. (The position no. direction is from
left to right)
POSITION COLOUR CAPACITY (A) INVOLVED CIRCUIT
1 Red 10 Horn
2 Green 15 Steering light
3 Green 15 Rear working light
4 Green 15 Front working light
5 Red 10 Frame Light
6 Yellow 5 Braking light
7 Red 10 Instruments
8 Green 15 Standby
9 Red 10 Security
10 Red 10 Caution light
11 Red 10 Floating
12 Green 15 Standby
13 Green 15 Standby
14 Red 10 Standby
15 Red 10 Standby
16 Green 15 Standby
