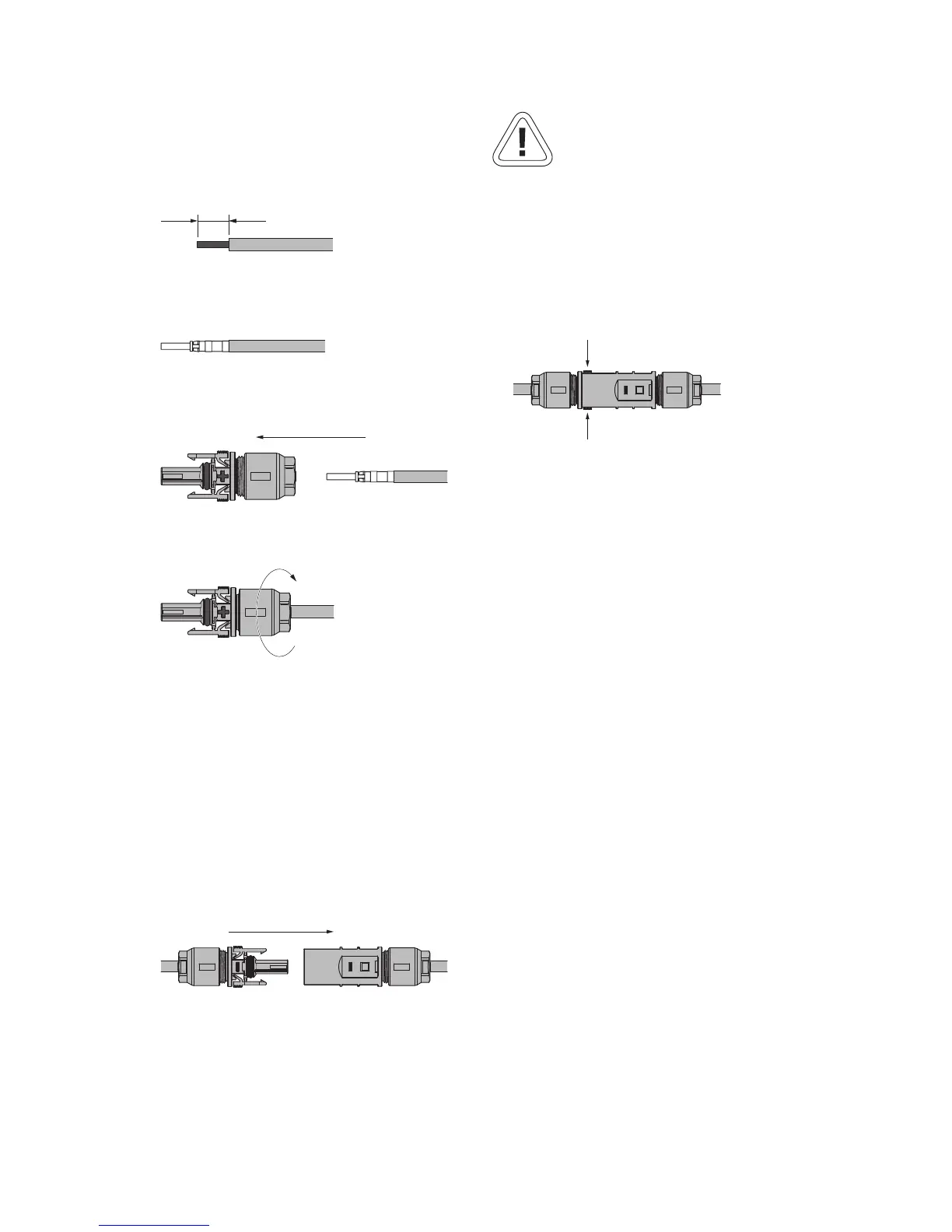

2. Crimping on the circular contact with the Tyco
Solarlok hand crimping pliers.
3. Sliding the cable gland onto the line and engag-
ing the contact in the connector housing.
4. Tightening the cable gland with 1.5 Nm.
Handling
The positively/negatively coded connectors are
marked with polarity symbols and a coloured ring
(blue = negative, red = positive). They are equipped
with coding ribs for assignment, which ensures that
only connectors of the same polarity can be con-
nected to each other.
Connecting socket and plug. The system is only cor-
rectly locked if the locking hooks are recessed flush
in the mating piece.
CAUTION
The connectors may not be separated while under
load. The circuit must be opened at a suitable point
for this purpose.
Release the locking device by pressing on the rib-
bing of the locking hooks and pulling them apart.
