1 Product description
9

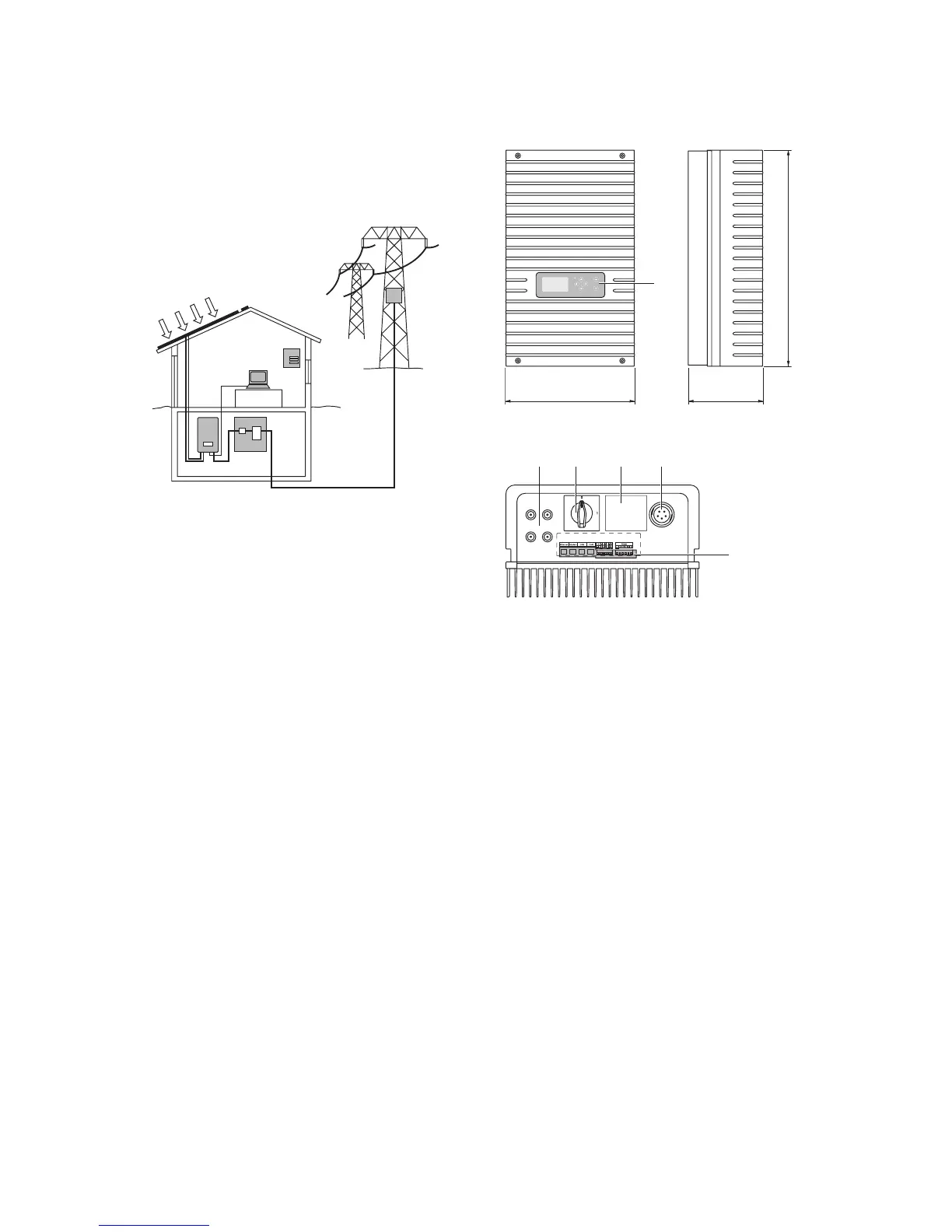

Standard components of a solar system
Depending on the recommendations of your PV
planning expert, your PV system consists of the fol-
lowing components:
1
4
5
2
3
6
DC
AC
1 Solar generator
2 Solar Inverter with integrated DC load break
switch
3 Mains fuse and energy meter
Options
4 Irradiation sensor with integrated temperature
sensor
5 PC for monitoring system
6 Large display
1.4 Assembly description
+–
+–
1
2
350
585
205
2 3 4 5
6
1
87 9 13121110
6
Solar Inverter NT 5000
1 Operating field with LCD display, operating LED
and keyboard
2 DC connections
3 DC load break switch
4 Rating plate
5 AC connection
6 Communication interfaces
