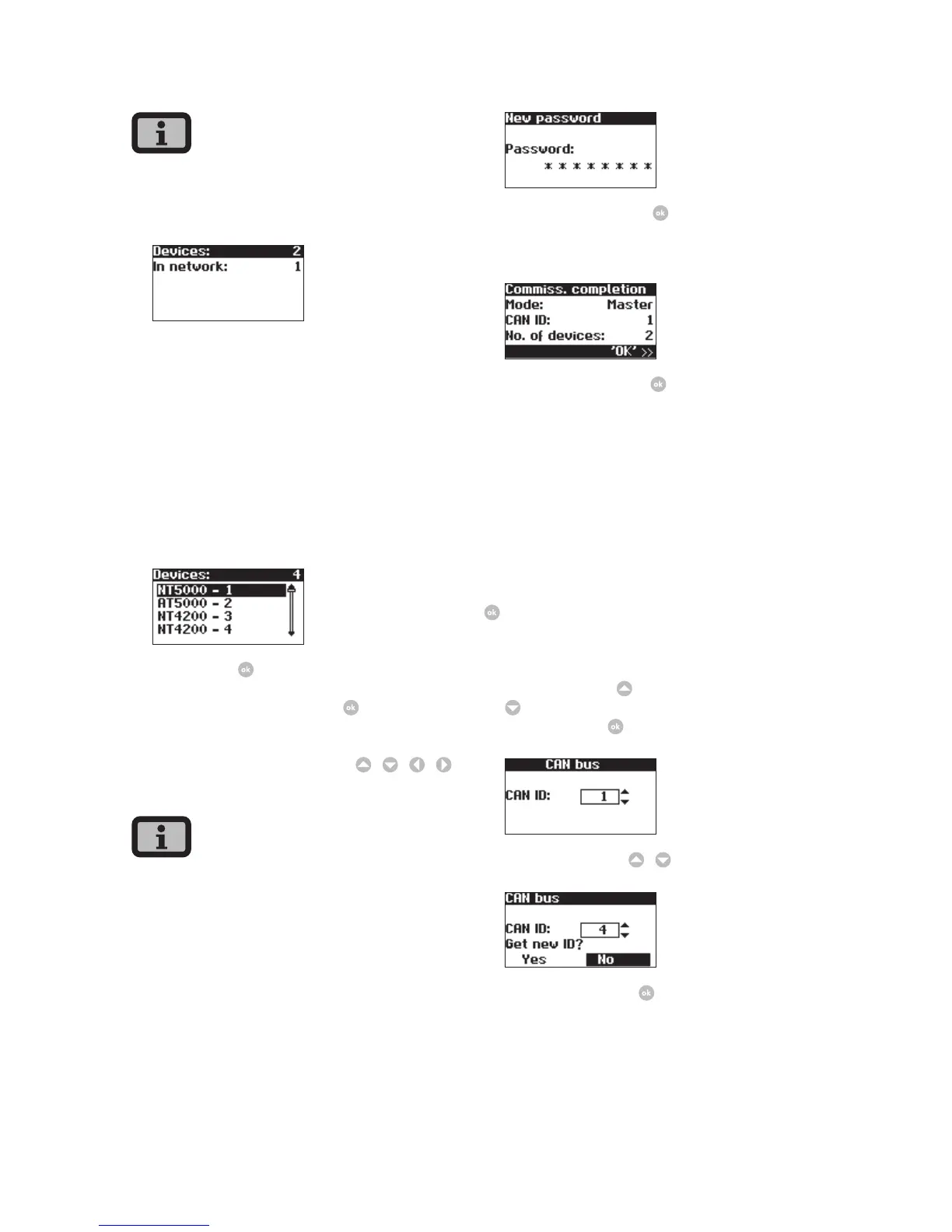

4 Commissioning
33
Depending on the size of the network, it may take
a moment until the master has found all slaves and
added them to the list.
Devices = total number of devices found in CAN
network, including master
In network = number of configured devices,
including master
After the master has found all connected slaves,
these must be configured before commission-
ing of the master is continued. The device list
is updated and extended whenever a slave is
configured.
Confirm with .
6. Set password. Select password
Default password is:
* * * * * * * *
A new password can be set with
/
/
/
as an option.
Please note:
Numerals from 0 – 9 and letters from a – z and from
A – Z are admissible.
The password always has 8 characters. If the pass-
word you choose is fewer than 8 characters in
length, the remainder, up to the full 8 characters, is
filled with “*” symbols.
For example:
You choose “Solar” as your password. This password
has 5 characters. The system therefore then auto-
matically adds three “*” symbols, meaning that your
password becomes “Solar***”.
Confirm password with .
7. Completion of commissioning
Confirm overview with .
Commissioning slaves
The procedure for commissioning secondary units
depends on the type of device search. Once a main
unit has been defined and manual ID allocation
was selected (e.g. for systems with AT and PT), each
secondary unit automatically displays a CAN ID
request. If automatic ID allocation was selected on
the main unit, this step is skipped. In this case com-
pletion of commissioning must be confirmed with
at each secondary unit.
1. For manual device search only:
Request CAN ID. Request next highest free ID
from master with
or next lowest free ID with
. The master assigns a free ID to the slave. Con-
firm the ID with
within 5 seconds.
Request further IDs
/
.
Confirm CAN ID with
within 5 seconds.
