NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Gas Controls / Control Compartment
Access
The gas controls can be found on the right hand
side of the appliance as shown in Figure 61.
The standard controls for appliance operation
are remote wall switch and remote control.
Operation and Care of Your Appliance
Familiarize yourself with the gas control valve
that your appliance uses. Refer to Figure 2 for
access to the gas control valve.
Appliances are fitted with the electronic valve
shown in Figure 60.
To light the appliance refer to the detailed
lighting instructions (see Page 49). The
appliance lighting instructions can also be
found on the pull-out lighting instruction
labels attached to the gas control valve.
Your appliance is equipped with a wall receiver
switch and a remote control.
INNOVATIVE HEARTH PRODUCTS • DIRECT-VENT GAS FIREPLACES (DRT6300/DRC6300) • CARE AND OPERATION INSTRUCTIONS
Variable Flame Height Adjustment
All appliances are equipped with a variable gas
control valve. Flame height for these models
may be adjusted through a range between
fixed low and high settings, alternately, while
the appliance is in operation. Use the remote
control to adjust the flame height as desired.
WARNING
Young children should be carefully supervised when they are in the
same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier
is recommended if there are at risk individuals in the house. To
restrict access to a fireplace or stove, install an adjustable safety
gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
OPERATION AND CARE OF YOUR APPLIANCE
AVERTISSEMENT
Les jeunes enfants devraient être surveillés étroitement lorsqu’ils
se trouvent dans la même pièce que l’appareil. Les tout petits,
les jeunes enfants ou les adultes peuvent subir des brûlures s’ils
viennent en contact avec la surface chaude. Il est recommandé
d’installer une barrière physique si des personnes à risques
habitent la maison. Pour empêcher l’accès à un foyer ou à un
poêle, installez une barrière de sécurité; cette mesure empêchera
les tout petits, les jeunes enfants et toute autre personne à risque
d’avoir accès à la pièce et aux surfaces chaudes.
Wire
(From DFC Wire
Harness)
Pressure
Regulator
Tower
Yellow Ground Wire
(From DFC Wire
Harness)
Green Wire
(From DFC Wire
Harness)
Line (In) Test Port
Manifold (Out)
Test Port
Connect GTMS
Wire Harness

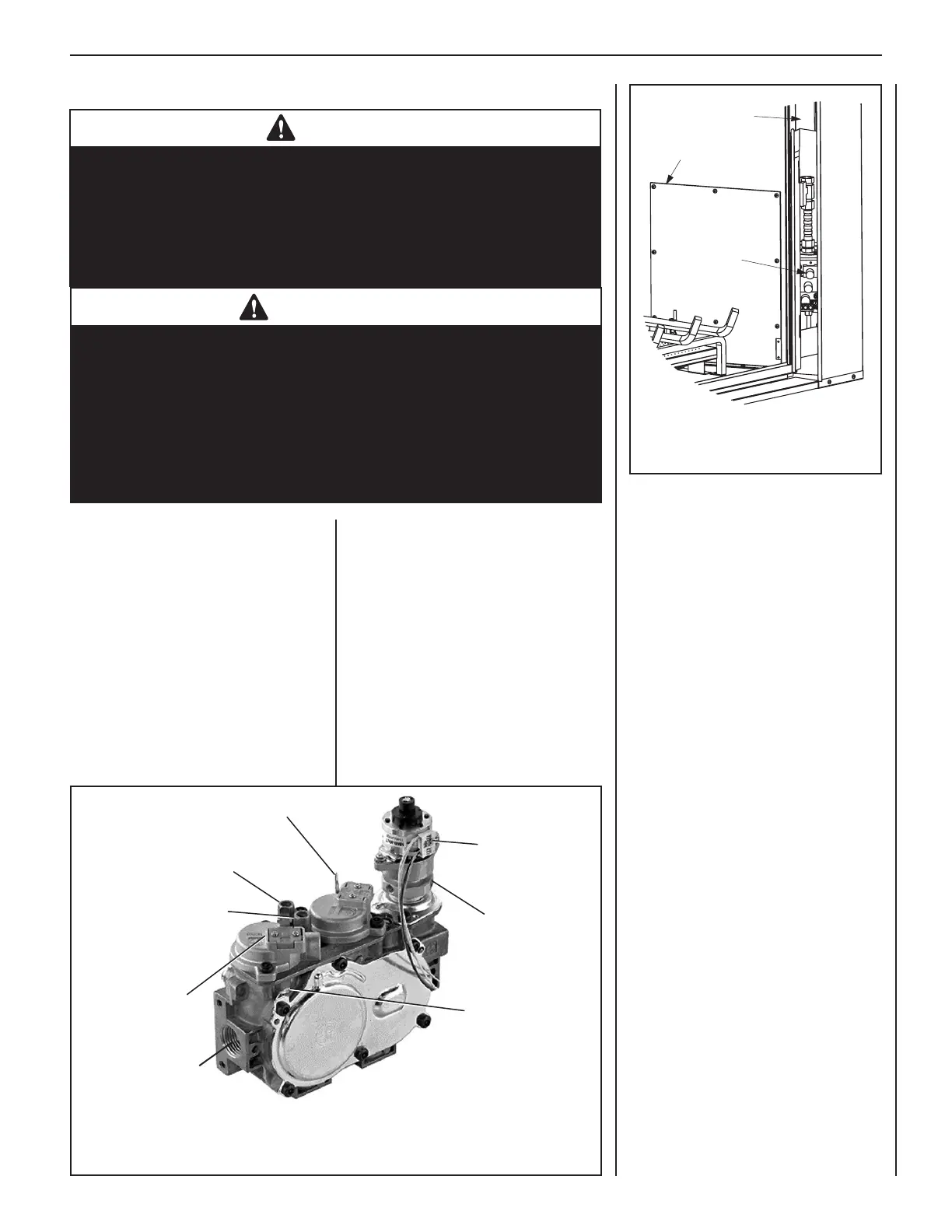

Figure 60—SIT Proflame Valve
Gas Valve
Access Plate
Right Side
Modesty Panel
Figure 61—Fireplace Interior,
Right Side, panel removed
Main Gas
Inlet
3/8" NPT
