Rear Chassis Features
Item Feature Description
A, B, C, D Node A, B, C, D Independent computing nodes
1 Power Supplies Redundant power modules
2 PCI Slots Two PCIe 3.0 x16 slots in each node
3 SIOM port
Network ports in each node; refer to table below for available SIOM
cards
Unlabeled I/O ports Described in Section 4.2
SIOM Networking Add-on Card Options
Speed Ports Add-on Card Part Number
GbE
Two RJ45 AOC-MGP-i2M
Four RJ45 AOC-MGP-i4M
10 G SFP+
Two SFP+ AOC-MTGN-i2SM
Four SFP+ AOC-MTG-i4SM
10GBase-T Two RJ45 AOC-MTG-i2TM
Check the following link for updates:
https://www.supermicro.com/support/resources/AOC/AOC_Compatibility_SIOM.cfm

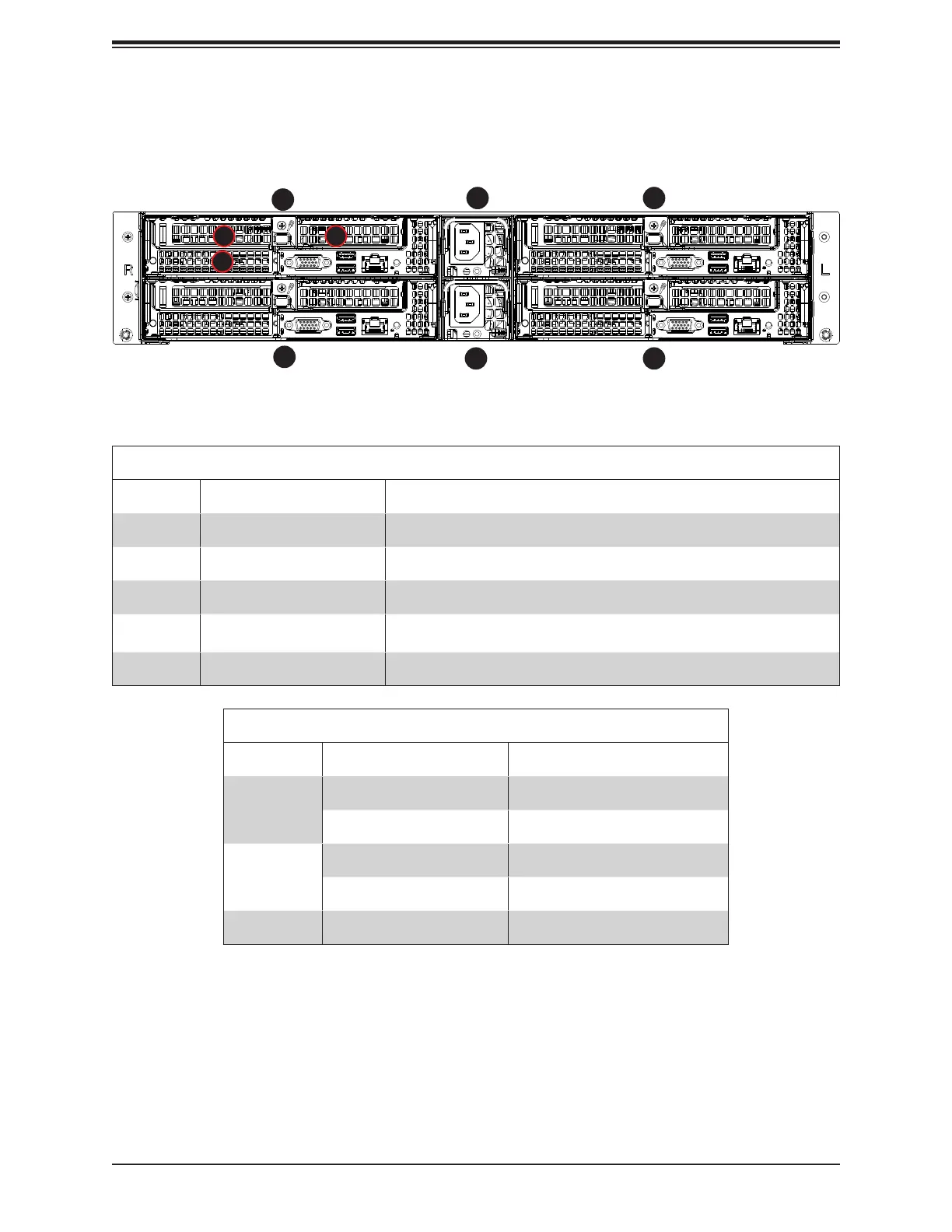

Figure 1-3. Chassis Rear View
Rear Features
The illustration below shows the features included on the rear of the chassis.
