Installing Expansion Cards

E16R and RSC-P-6) for a total of eight (4+4) in the chassis. Install an add-on card on the

Installing an Expansion Card
1. Power down the node and remove it from the chassis.
2. Remove the screws holding the riser card brackets.
• For the right side (looking from the node rear), remove the three screws on the right.
• For the left side, remove the three screws on the left.
3. Remove the blank PCI shield from the bracket.
4. Slide the expansion card bracket into the open PCI slot while plugging the expansion
card into the riser card.
5. Secure the expansion card bracket into the PCI slot with a screw.
6. Replace the riser card brackets and secure with the screws.

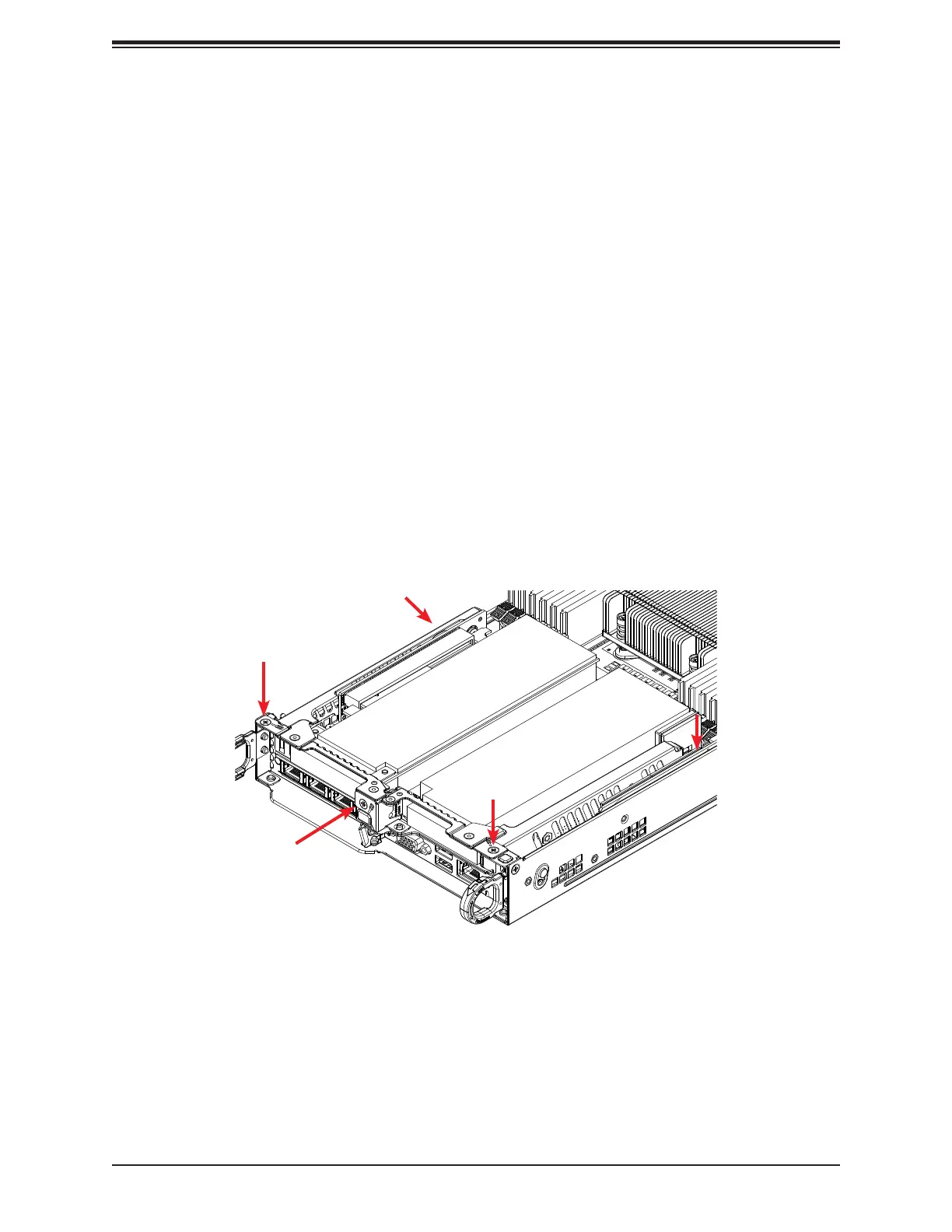

Figure 3-24. Installing Expansion Cards
Riser Card
Bracket screw
Riser Card
Bracket screw
Riser Card
Bracket screw
Riser Card
Bracket screw
Riser Card
Bracket screw
