41
Chapter 3: Maintenance and Component Installation

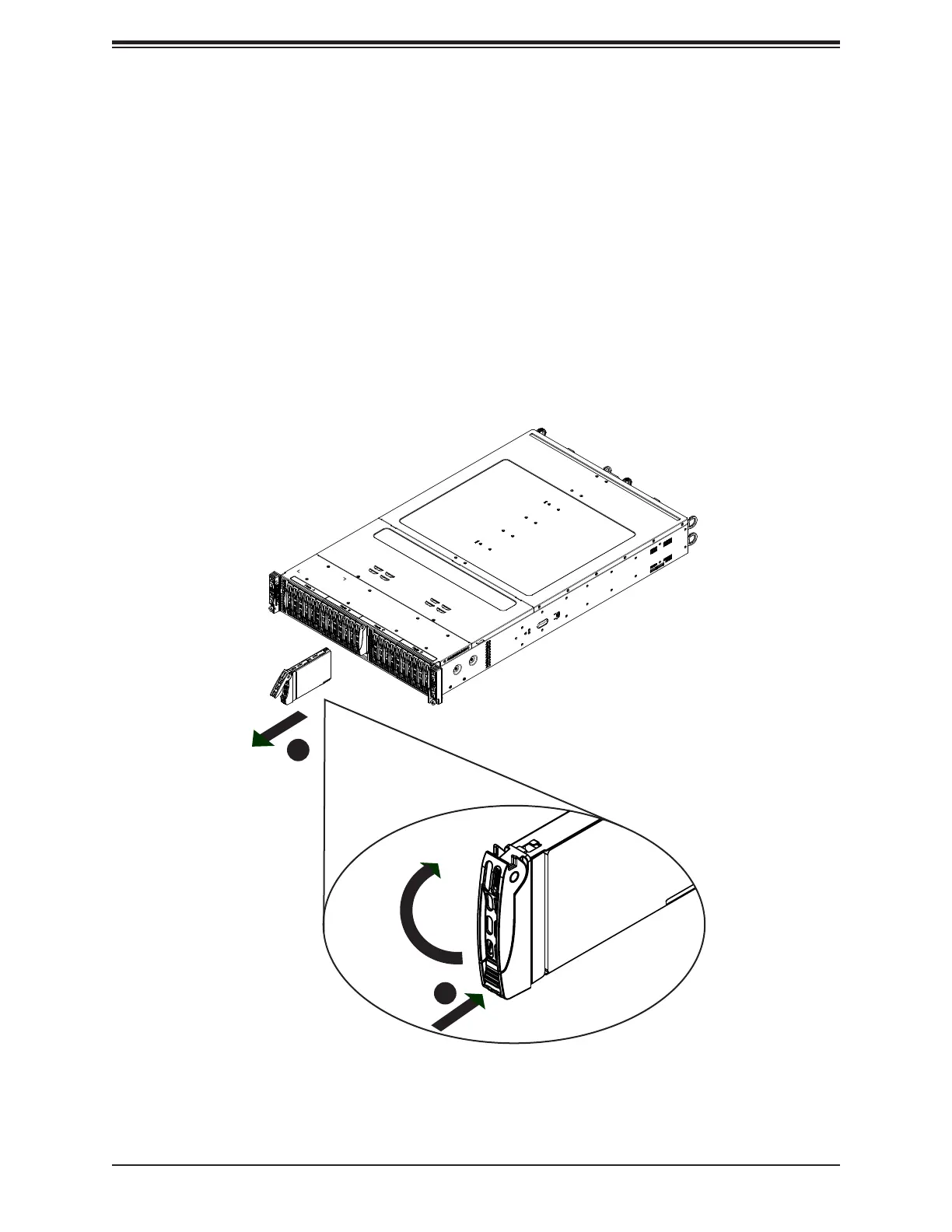

Figure 3-20. Removing a Drive Carrier
1
2
Installing Drives
Removing Drive Carriers from the Chassis
1. Press the release button on the drive carrier. This extends the drive carrier handle.
2. Use the handle to pull the carrier out of the chassis.
3. Remove the dummy drive from the carrier (Figure 3-18).
Caution: Except for short periods of time (swapping drives), do not operate the server with
the drive carriers removed from the bays, regardless of how many drives are installed, for
