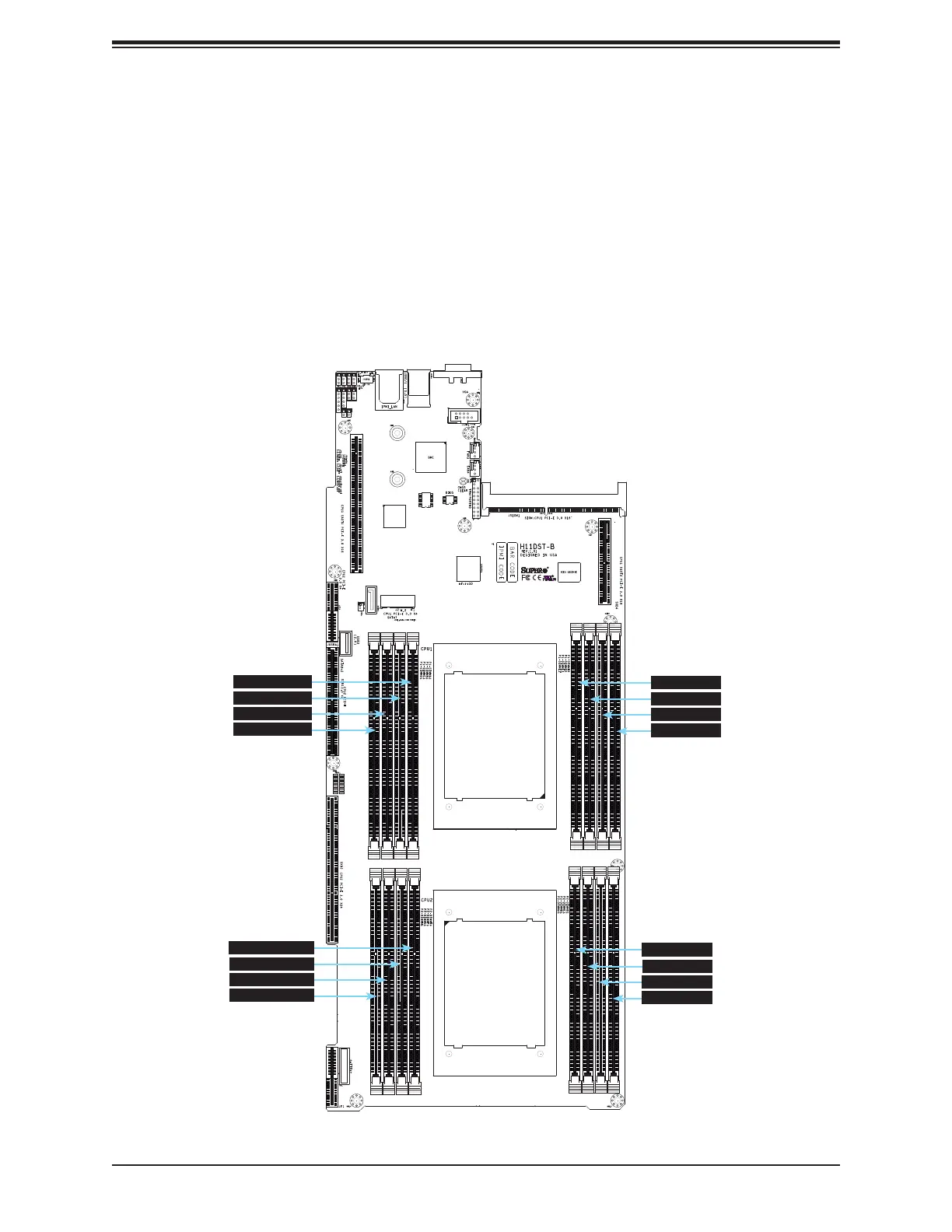

Figure 3-17. DIMM Numbering
DIMM Module Population
do keep the following in mind:
• Always use DDR4 DIMM modules of the same type, size and speed in a node.
• The motherboard will support odd-numbered modules (1 or 3 modules installed). However,
to achieve the best memory performance, a balanced memory population is recommended.
BMC FLASH
P2-DIMME1
P2-DIMMF1
P2-DIMMG1
P2-DIMMH1
P1-DIMMB1
P1-DIMMC1
P1-DIMMD1
P1-DIMME1
P1-DIMMF1
P1-DIMMG1
P1-DIMMH1
P2-DIMMA1
P2-DIMMB1
P2-DIMMC1
P2-DIMMD1
P1-DIMMA1
