A+ Server AS -2123BT-Hxxx User's Manual
26

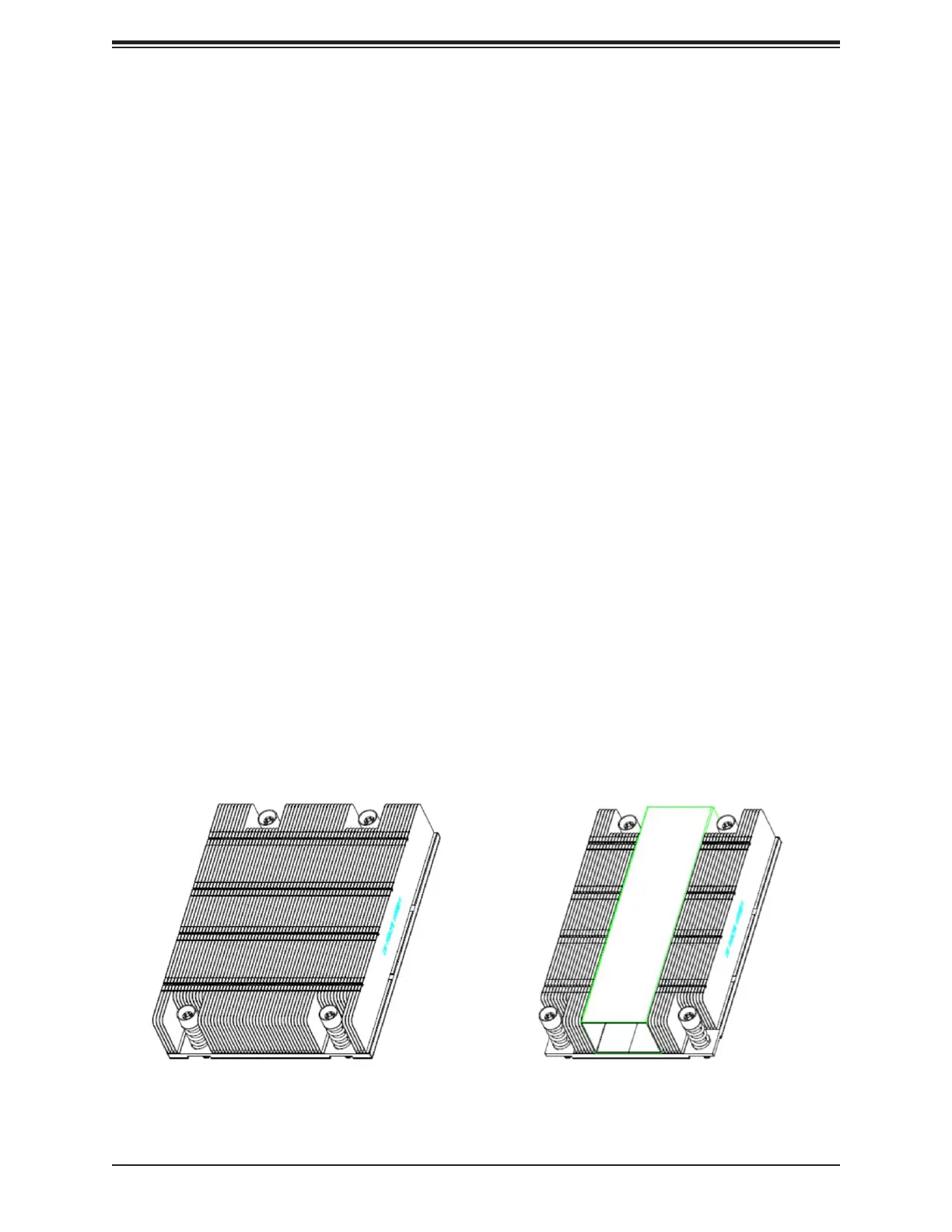

Figure 3-4. Heatsink SNK-P0062PM
(for CPU2)
Figure 3-3. Heatsink SNK-P0062PW
(for CPU1)
Heatsinks
P0062PM model is used for CPU2, the CPU closer to the mid-chassis fans.
3.3 Motherboard Components
Processor and Heatsink Installation
heatsink module (PHM), and then install the PHM into the CPU socket.
Caution: Use industry-standard anti-static equipment, such as gloves or wrist strap, and
follow precautions to avoid damage caused by ESD. Do not touch the underside of the CPU.
Improper installation or socket misalignment can cause serious damage to the CPU or socket
which may require manufacturer repairs.
Notes:
•
• When handling the processor package, avoid placing direct pressure on the label area of
the CPU or socket.
• Check that the plastic socket dust cover is in place and none of the socket pins are bent—
otherwise, contact your retailer.
• Refer to the Supermicro website for updates on CPU support.
•
