Supermicro X11DPL-i User Manual

118
X11DPL-i User's Manual
Appendix B
Software Installation
B.1 Installing Software Programs
The Supermicro website that contains drivers and utilities for your system is located at http://
www.supermicro.com/wftp. Some of these must be installed, such as the chipset driver.
After accessing the product drivers and utilities page, go into the CDR_Images directory and
locate the ISO le for your motherboard. Download this le to create a DVD of the drivers
and utilities it contains. (You may also use a utility to extract the ISO le if preferred.)
After creating a DVD with the ISO les, insert the disk into the DVD drive on your system
and the display shown in Figure B-1 should appear.
Another option is to go to the Supermicro website at http://www.supermicro.com/products/.
Find the product page for your motherboard here, where you may download individual drivers
and utilities to your hard drive or a USB ash drive and install from there.
Note: Please refer to the documents posted on our website at http://www.supermicro.
com/support/manuals/ for additional instructions that may be applicable to your system.

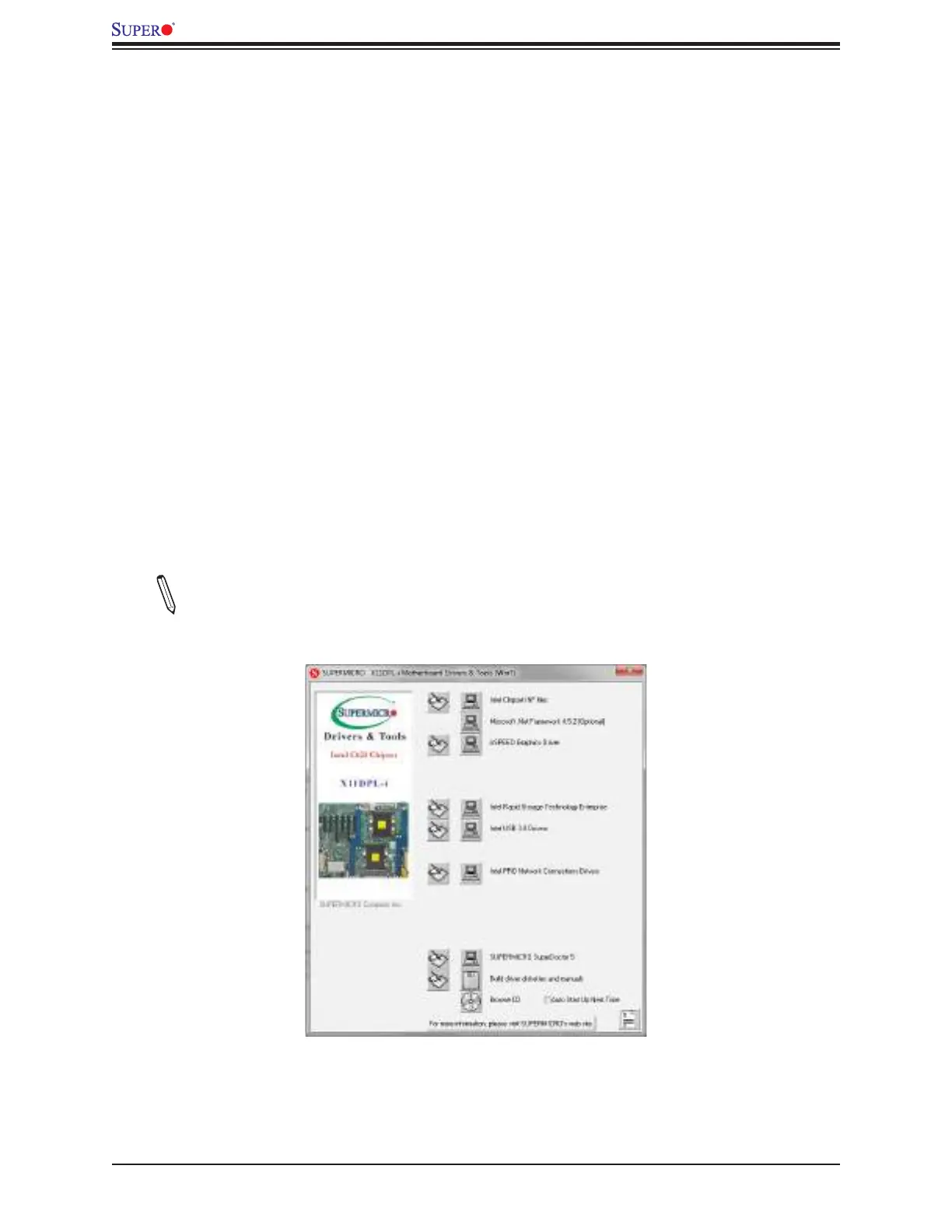

Figure B-1. Driver/Tool Installation Display Screen

Supermicro X11DPL-i Specifications

General

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Supported DIMM module capacities	64GB, 128MB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
RAID levels	0, 1, 5, 10
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
System bus rate	10.4 GT/s
Processor manufacturer	Intel
Processor thermal power (max)	140 W
PCI Express x16 (Gen 3.x) slots	2
BIOS type	UEFI AMI
Motherboard chipset	Intel® C621
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	257.8 mm
Width	306.7 mm
