X11DPL-i User's Manual
112

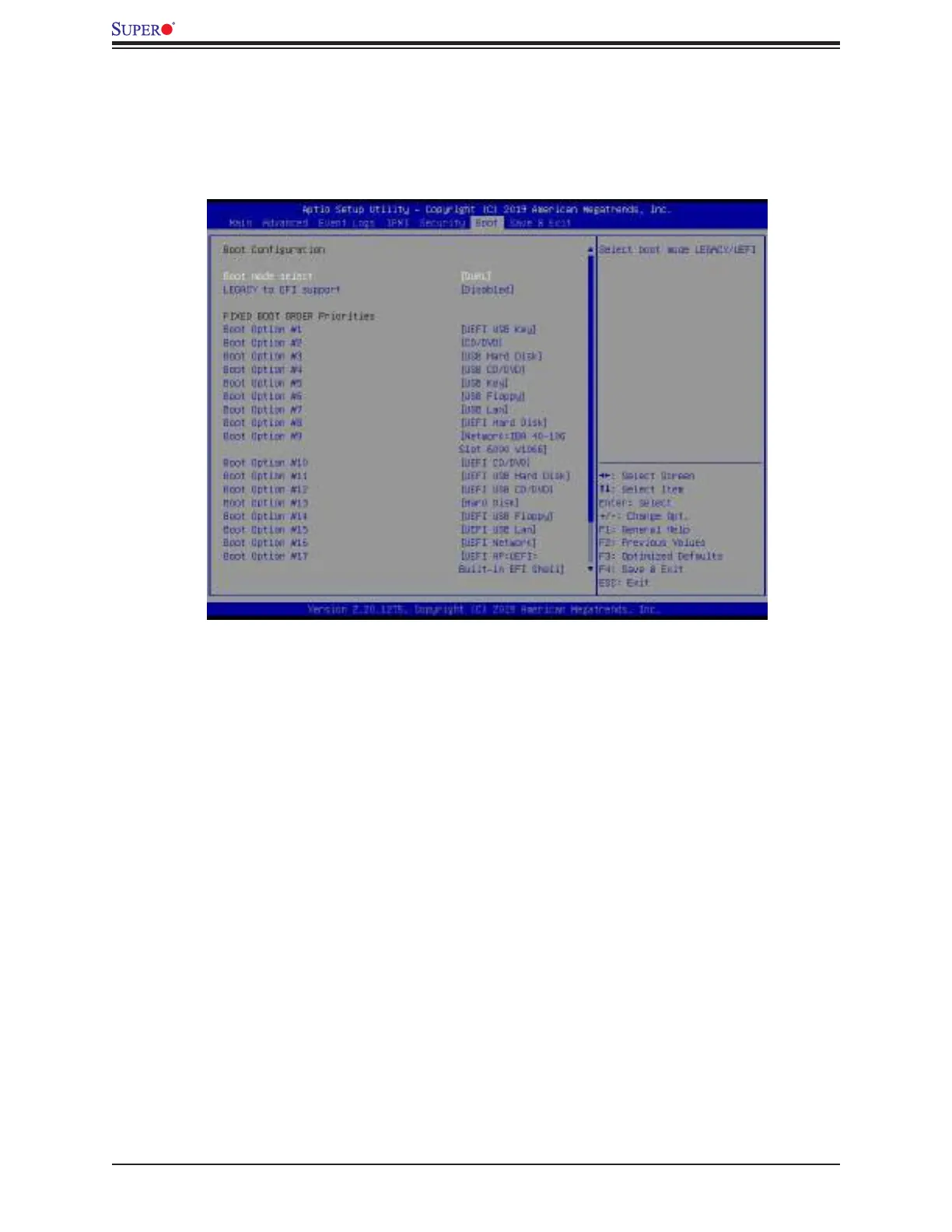

4.7 Boot
Use this feature to congure Boot Settings:
Boot Conguration
Boot Mode Select
Use this feature to select the type of devices from which the system will boot. The options
are Legacy, UEFI (Unied Extensible Firmware Interface), and Dual.
Legacy to EFI Support
Select Enabled for the system to boot from an EFI OS when the Legacy OS fails. The options
are Enabled and Disabled.
Fixed Boot Order Priorities
This feature prioritizes the order of a bootable device from which the system will boot. Press
<Enter> on each item sequentially to select devices.
When the item above -"Boot Mode Select" is set to Dual (default), the following items will be
displayed for user's conguration:
• Boot Option #1 - Boot Option #17

Supermicro X11DPL-i Specifications

General

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Supported DIMM module capacities	64GB, 128MB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
RAID levels	0, 1, 5, 10
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
System bus rate	10.4 GT/s
Processor manufacturer	Intel
Processor thermal power (max)	140 W
PCI Express x16 (Gen 3.x) slots	2
BIOS type	UEFI AMI
Motherboard chipset	Intel® C621
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	257.8 mm
Width	306.7 mm
