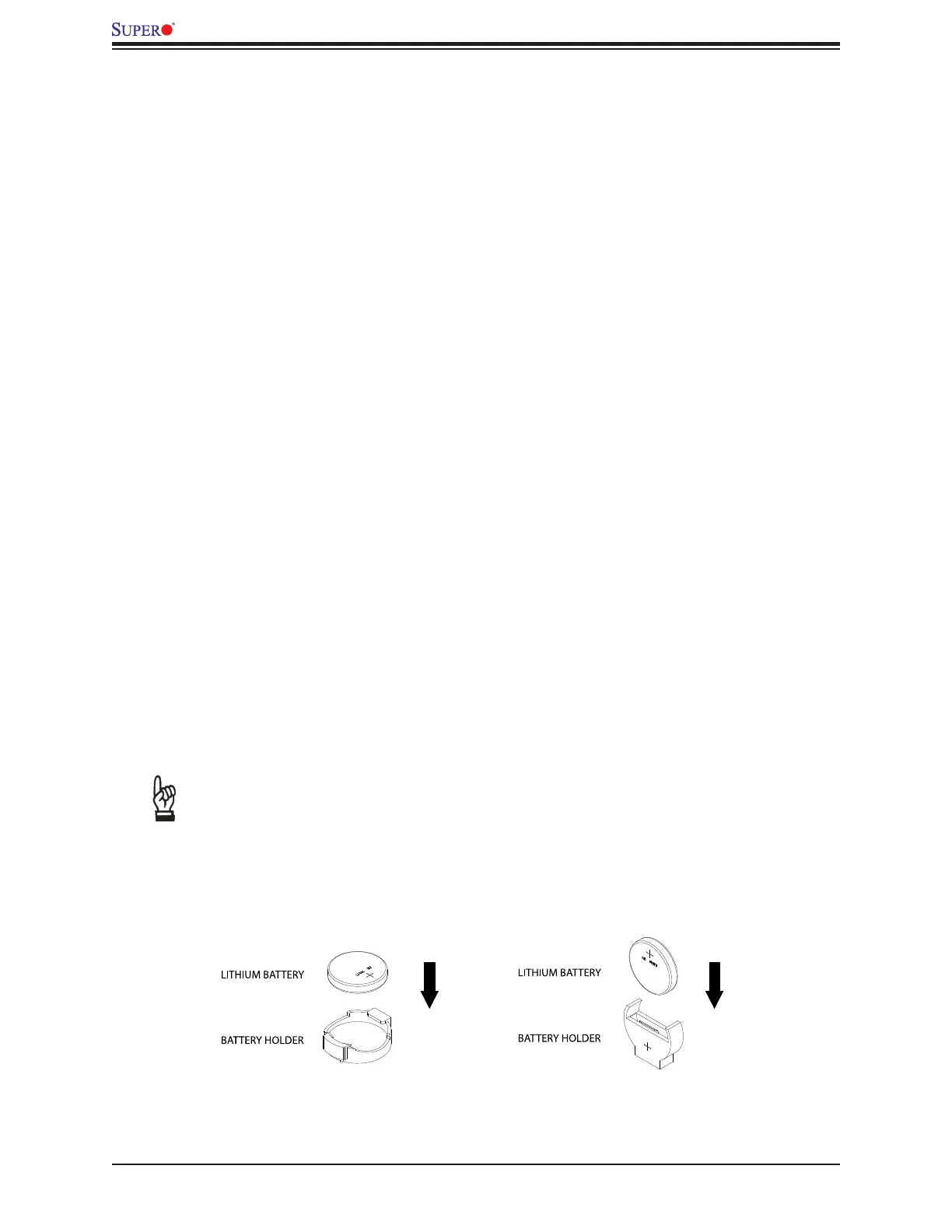

3.4 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to
unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.
Proper Battery Disposal
Please handle used batteries carefully. Do not damage the battery in any way; a damaged
battery may release hazardous materials into the environment. Do not discard a used battery
in the garbage or a public landll. Please comply with the regulations set up by your local
hazardous waste management agency to dispose of your used battery properly.
Battery Installation
1. To install an onboard battery, follow the steps 1 & 2 above and continue below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a click to
ensure that the battery is securely locked.
Important: When replacing a battery, be sure to only replace it with the same type.
OR

Supermicro X11DPL-i Specifications

General

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Supported DIMM module capacities	64GB, 128MB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
RAID levels	0, 1, 5, 10
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
System bus rate	10.4 GT/s
Processor manufacturer	Intel
Processor thermal power (max)	140 W
PCI Express x16 (Gen 3.x) slots	2
BIOS type	UEFI AMI
Motherboard chipset	Intel® C621
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	257.8 mm
Width	306.7 mm
