Supermicro X11DPL-i User Manual

55
Chapter 2: Installation
2.8 Jumper Settings

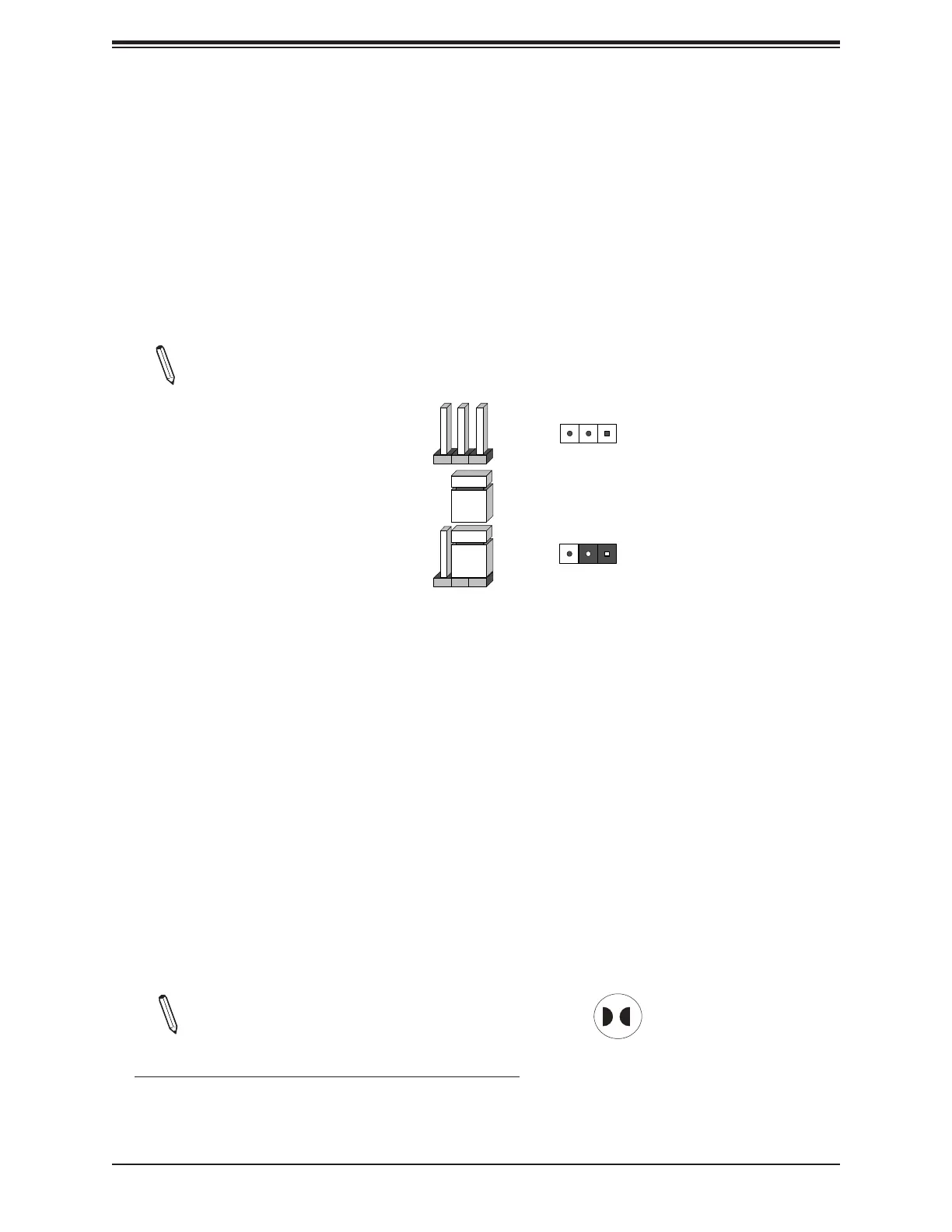

How Jumpers Work
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector.
Pin 1 is identied with a square solder pad on the printed circuit board. See the diagram
at right for an example of jumping pins 1 and 2. Refer to the motherboard layout page for
jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the
jumper is off the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
CMOS Clear
JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper
consists of contact pads to prevent accidentally clearing the contents of CMOS.
To Clear CMOS
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four
seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.
Note: Clearing CMOS will also clear all passwords.
JBT1 contact pads
Do not use the PW_ON connector to clear CMOS.

Supermicro X11DPL-i Specifications

General

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Supported DIMM module capacities	64GB, 128MB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
RAID levels	0, 1, 5, 10
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
System bus rate	10.4 GT/s
Processor manufacturer	Intel
Processor thermal power (max)	140 W
PCI Express x16 (Gen 3.x) slots	2
BIOS type	UEFI AMI
Motherboard chipset	Intel® C621
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	257.8 mm
Width	306.7 mm
