46
X11DPL-i User's Manual

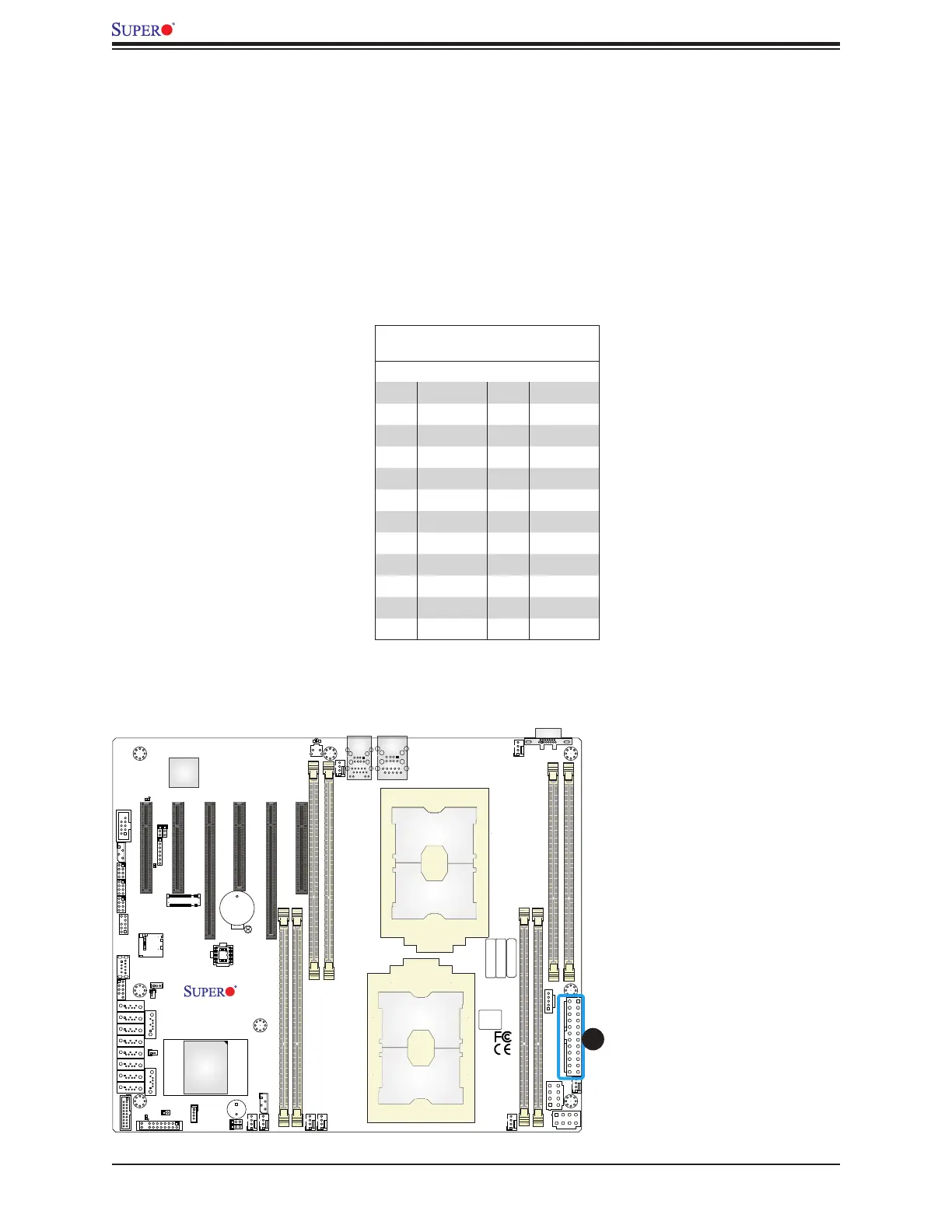

2.7 Connectors
Power Connector
ATX and CPU Power Connectors
JPWR3 is the 24-pin ATX main power supply connector. This primary power supply connector
meets the ATX SSI EPS 24-pin specication. You must also connect the 8-pin (JPWR1/
JPWR2) CPU power connectors to your power supply.
ATX Power 24-pin Connector
Pin Denitions
Pin# Denition Pin# Denition
13 +3.3V 1 +3.3V
14 NC 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
Required Connection
1. JPWR3 24-pin Power
Supply
IPMI CODE
1
1
BIOS LICENSE
MAC CODE
BAR CODE
DESIGNED IN USA
X11DPL-i
REV:1.01
CPU1
CPU2
BMC
PCH
LE6
JSDCARD1
JTPM1
JUSB3
JRK1
LE1
SP1
JPI2C1
JPWR1
JPWR2
JBT1
JUIDB1
JSD1
JSD2
JLAN1
JPWR3
J26
JF1
JP2
JSTBY1
BT1
J25
JVRM1
JVRM2
JPME2
JWD1
JNVI2C1
LEDM1
LE2
FAN4 FAN3
FAN5
FAN2
FAN6
FAN1
FANB
FANA
SATA7
SATA8
SATA9
BIOS
M.2
JL1
JIPMB1
S-SGPIOI-SGPIO2I-SGPIO1
USB5/6(3.0)
USB2/3
USB4(3.0)
I-SATA7I-SATA6I-SATA5I-SATA4I-SATA3I-SATA2I-SATA1
S-SATA1
P2-DIMMA1
P2-DIMMB1
P1-DIMME1
P1-DIMMA1
P1-DIMMB1
P2-DIMME1
CPU1 SLOT6 PCI-E 3.0 X8
CPU1 SLOT2 PCI-E 3.0 X8
CPU2 SLOT3 PCI-E 3.0 X16
CPU1 SLOT5 PCI-E 3.0 X16
CPU1 SLOT4 PCI-E 3.0 X8
CPU1 SLOT1 PCI-E 3.0 X4 (IN X8)
S-SATA0
I-SATA0
VGA
LAN1/2
COM1
P2-DIMMD1
P1-DIMMD1
USB0/1
IPMI_LAN
1
