X11DPL-i User's Manual
2.2 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly.
Phillips
Screwdriver (1) Standoffs (8)
Phillips
Screws (8)
Tools Needed
IPMI CODE
1
1
BIOS LICENSE
MAC CODE
BAR CODE
DESIGNED IN USA
X11DPL-i
REV:1.01
CPU1
CPU2
BMC
PCH
LE6
JSDCARD1
JTPM1
JUSB3
JRK1
LE1
SP1
JPI2C1
JPWR1
JBT1
JUIDB1
JSD1
JSD2
JLAN1
JPWR3
J26
JF1
JP2
JSTBY1
BT1
J25
JVRM1
JVRM2
JPME2
JWD1
JNVI2C1
LEDM1
LE2
FAN4 FAN3
FAN5
FAN2
FAN6
FAN1
FANB
FANA
SATA7
SATA8
SATA9
BIOS
M.2
JL1
JIPMB1
S-SGPIOI-SGPIO2I-SGPIO1
USB5/6(3.0)
USB2/3
USB4(3.0)
I-SATA7I-SATA6I-SATA5I-SATA4I-SATA3I-SATA2I-SATA1
S-SATA1
P2-DIMMA1
P2-DIMMB1
P1-DIMME1
P1-DIMMA1
P1-DIMMB1
P2-DIMME1
CPU1 SLOT6 PCI-E 3.0 X8
CPU1 SLOT2 PCI-E 3.0 X8
CPU2 SLOT3 PCI-E 3.0 X16
CPU1 SLOT5 PCI-E 3.0 X16
CPU1 SLOT4 PCI-E 3.0 X8
CPU1 SLOT1 PCI-E 3.0 X4 (IN X8)
S-SATA0
I-SATA0
VGA
LAN1/2
COM1
P2-DIMMD1
P1-DIMMD1
USB0/1
IPMI_LAN

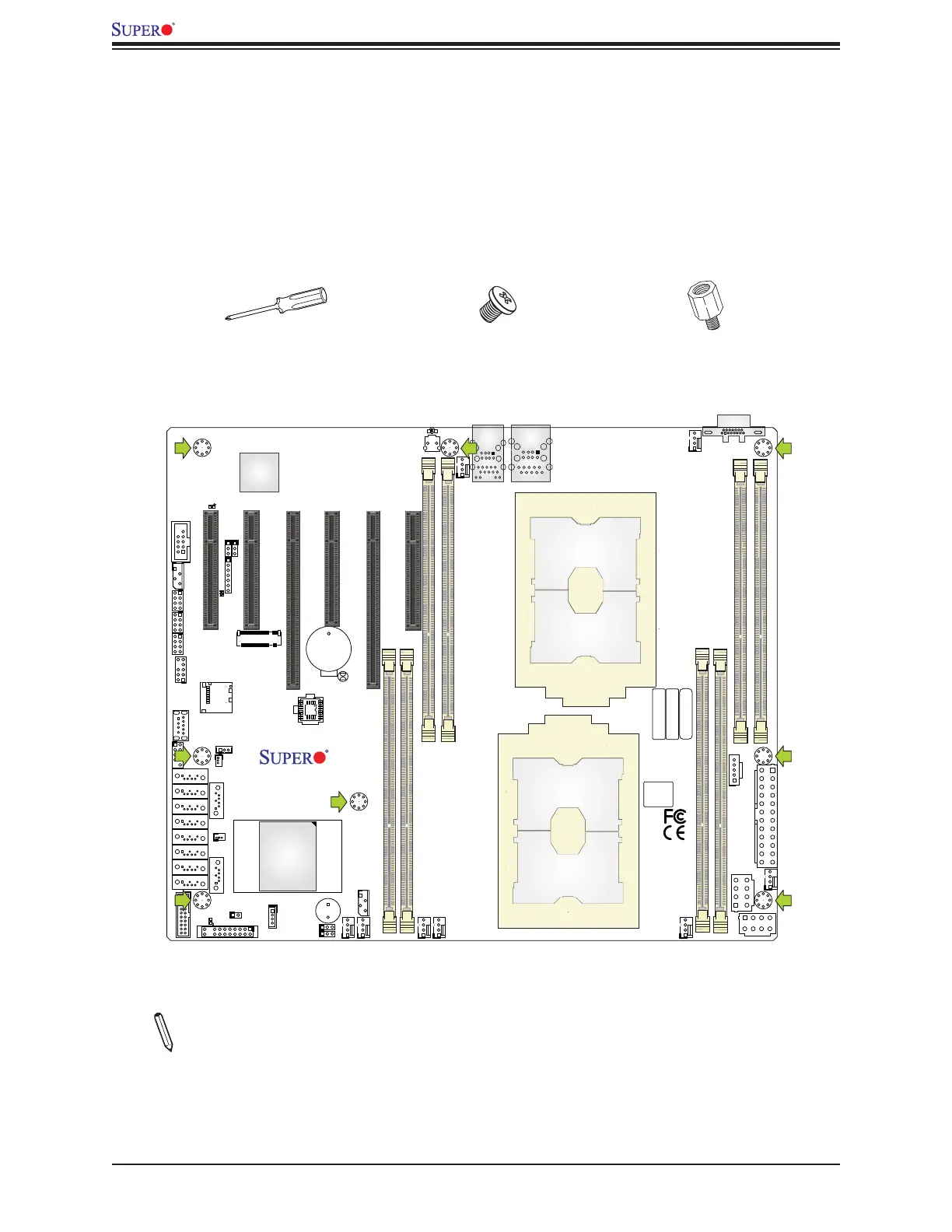

Location of Mounting Holes
Notes: 1. To avoid damaging the motherboard and its components, please do not use
a force greater than 8 lb/inch on each mounting screw during motherboard installation.
2. Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to
the chassis. 3. to avoid causing interference with other components, please be sure
to use an add-on card that is fully compliant with the PCI-standard on a PCI slot.
