2.3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on the label
area of the fan. Also, improper CPU installation or socket misalignment can cause serious
damage to the CPU or the motherboard that will require RMA repairs. Please read and follow
all instructions thoroughly before installing your CPU and heatsink.
Notes:
• Always connect the power cord last, and always remove it before adding, removing or
changing any hardware components. Make sure that you install the processor into the
CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an Intel-certied multi-directional
heatsink only.
• Make sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic
CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your
retailer immediately.
• Refer to the Supermicro website for updates on CPU support.

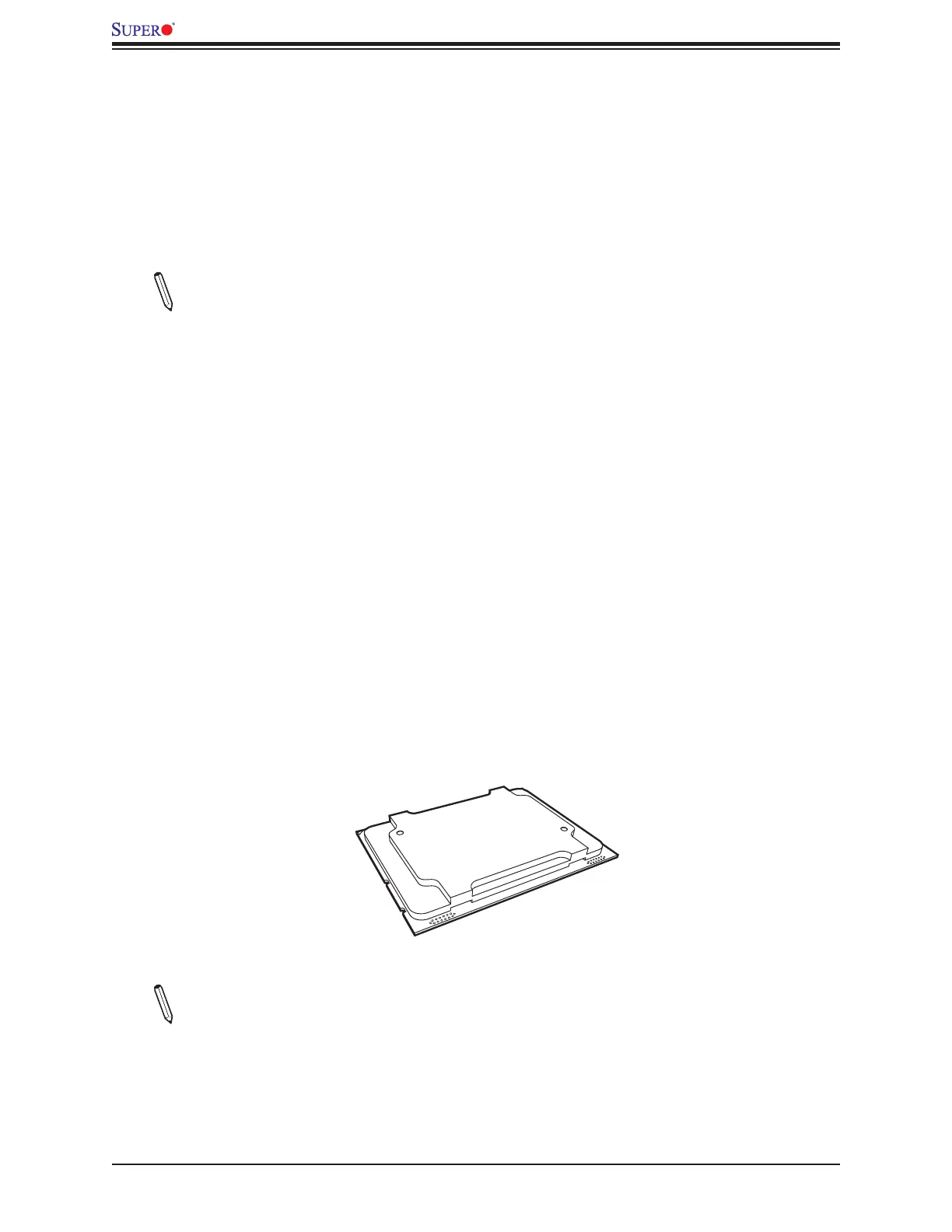

Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP
Processors
Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP Processor
Note: All graphics, drawings and pictures shown in this manual are for illustration only.
The components that came with your machine may or may not look exactly the same
as those shown in this manual.
