Installing the Processor Heatsink Module (PHM)
1. Once you have assembled the processor heatsink module (PHM) by following the
instructions listed on the previous page, align the processor heatsink module with the
CPU socket on the motherboard.
2. Align the large hole on the heatsink against the large notch on the CPU socket, the
small hole on the heatsink against the small notch on the socket. Carefully insert the
PHM into the socket, making sure that the large and small notches t through the
corresponding mounting holes on the socket. The PHM will only t one way. If it does
not t correctly, remove it and try again.
3. Using a T30-size star driver bit, tighten four screws into the mounting holes on the
socket to securely install the PHM into the motherboard, starting with the mounting hole
marked #1 (in the sequence of 1, 2, 3, and 4).
Note: Do not use excessive force when tightening the screws to avoid damaging
the CPU and the socket.
#1
#2
#3
#4

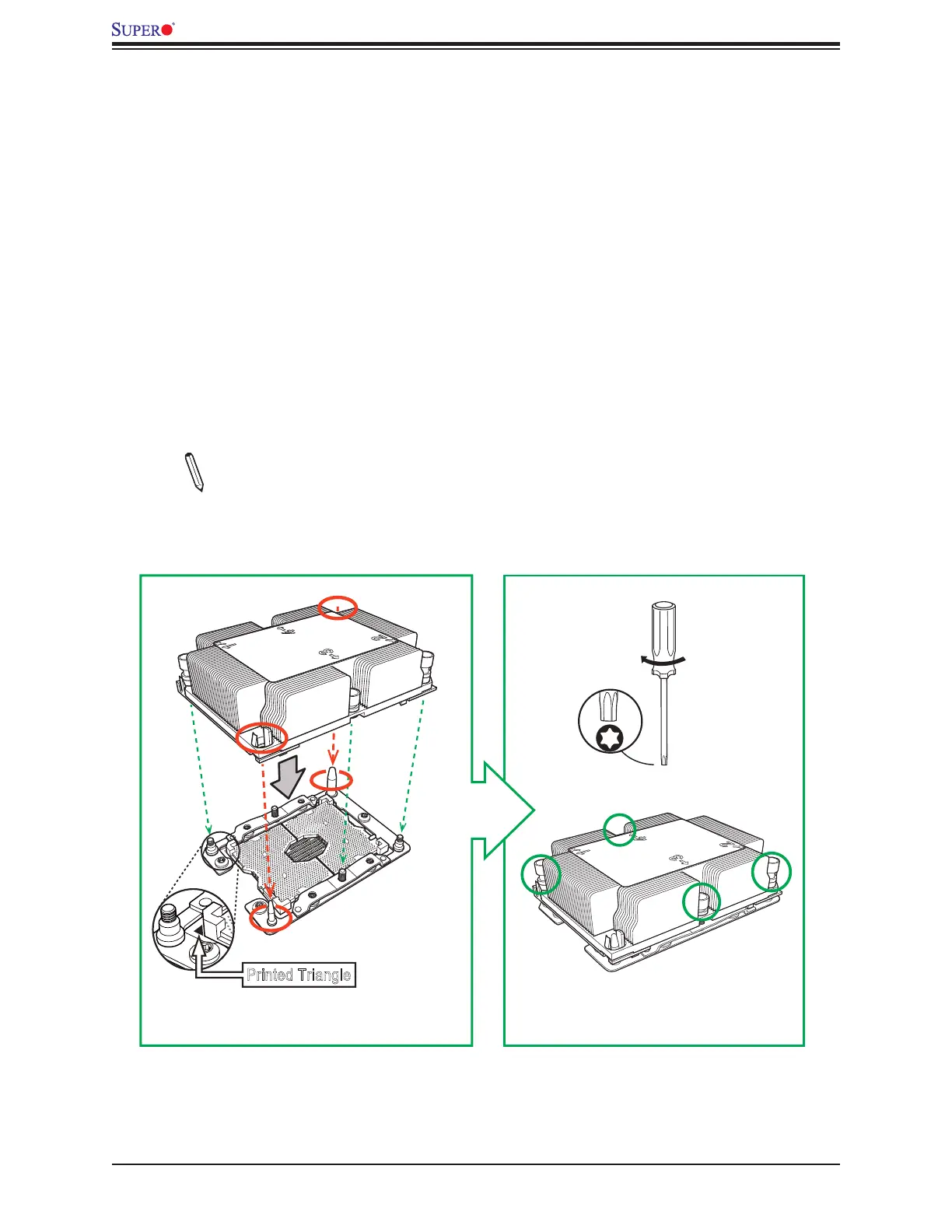

Small Guiding Post
Large Guiding Post
Oval D
T30 Torx Driver
Use a torque
of 12 lbf·in
Oval C
Printed Triangle
Mounting the Processor Heatsink Module
into the CPU socket (on the motherboard)
Tighten the screws in the
sequence of 1, 2, 3, 4 (top 3 quarter view)
