VGA Port
The onboard VGA port is located next to IPMI LAN port on the I/O back panel. Use this
connection for VGA display.
IPMI CODE
1
1
BIOS LICENSE
MAC CODE
BAR CODE
DESIGNED IN USA
X11DPL-i
REV:1.01
CPU1
CPU2
BMC
PCH
LE6
JSDCARD1
JTPM1
JUSB3
JRK1
LE1
SP1
JPI2C1
JPWR1
JBT1
JUIDB1
JSD1
JSD2
JLAN1
JPWR3
J26
JF1
JP2
JSTBY1
BT1
J25
JVRM1
JVRM2
JPME2
JWD1
JNVI2C1
LEDM1
LE2
FAN4 FAN3
FAN5
FAN2
FAN6
FAN1
FANB
FANA
SATA7
SATA8
SATA9
BIOS
M.2
JL1
JIPMB1
S-SGPIOI-SGPIO2I-SGPIO1
USB5/6(3.0)
USB2/3
USB4(3.0)
I-SATA7I-SATA6I-SATA5I-SATA4I-SATA3I-SATA2I-SATA1
S-SATA1
P2-DIMMA1
P2-DIMMB1
P1-DIMME1
P1-DIMMA1
P1-DIMMB1
P2-DIMME1
CPU1 SLOT6 PCI-E 3.0 X8
CPU1 SLOT2 PCI-E 3.0 X8
CPU2 SLOT3 PCI-E 3.0 X16
CPU1 SLOT5 PCI-E 3.0 X16
CPU1 SLOT4 PCI-E 3.0 X8
CPU1 SLOT1 PCI-E 3.0 X4 (IN X8)
S-SATA0
VGA
LAN1/2
COM1
P2-DIMMD1
P1-DIMMD1
USB0/1
IPMI_LAN

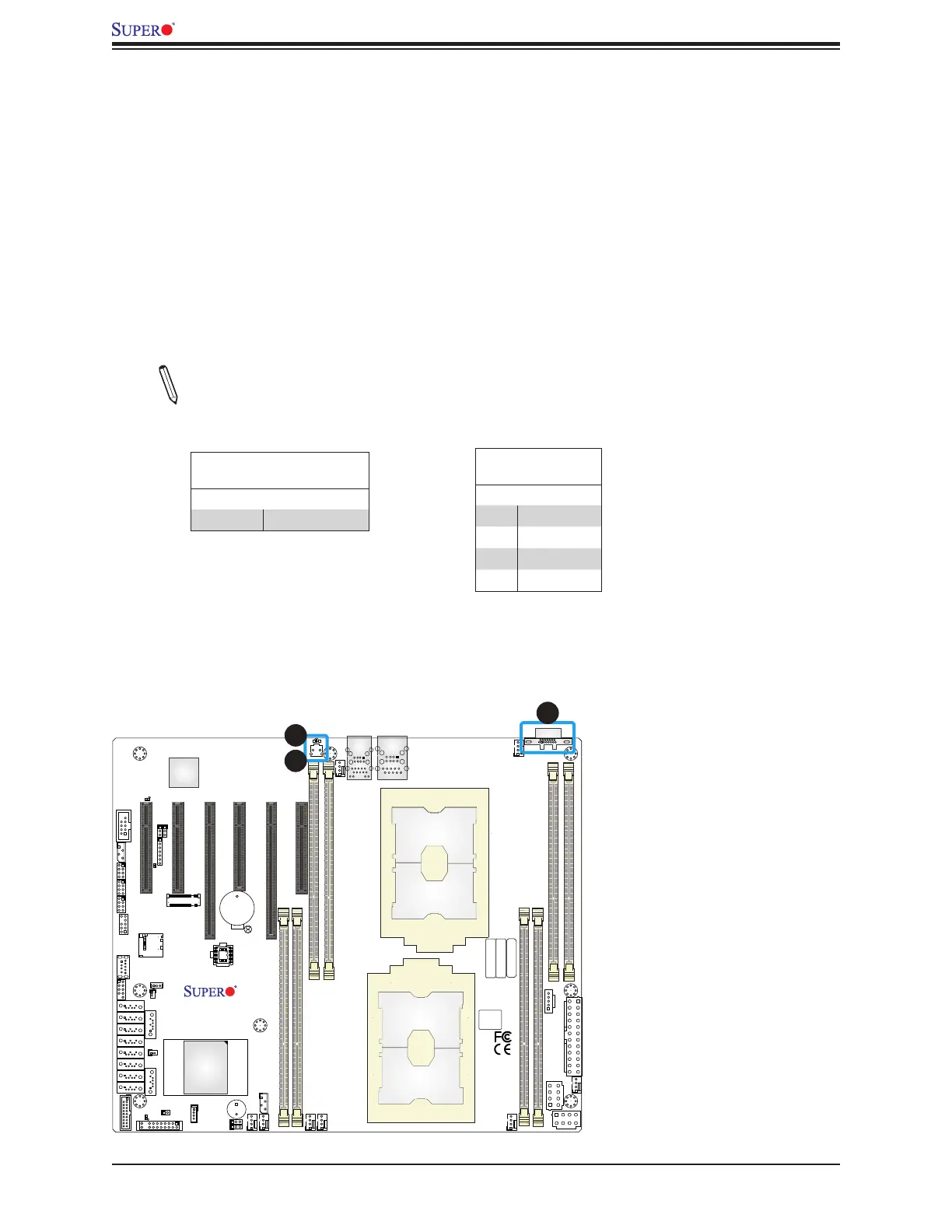

1. VGA Port
2. UID Switch
3. UID LED
Unit Identier Switch/UID LED Indicator
A Unit Identier (UID) switch (UID) and a UID LED Indicator (LE1) are located on the I/O
back panel. When you press the UID switcWh, the UID LED indicator will be turned on. Press
the UID switch again to turn off the LED. The UID Indicator provides easy identication of a
system unit that may be in need of service.
Note: UID can also be triggered via IPMI on the motherboard. For more information
on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.
supermicro.com.
UID Switch
Pin Denitions
Pin# Denition
1 Button In
2 Ground
3 Ground
4 Ground
UID LED
Pin Denitions
Color Status
Blue: On Unit Identied
