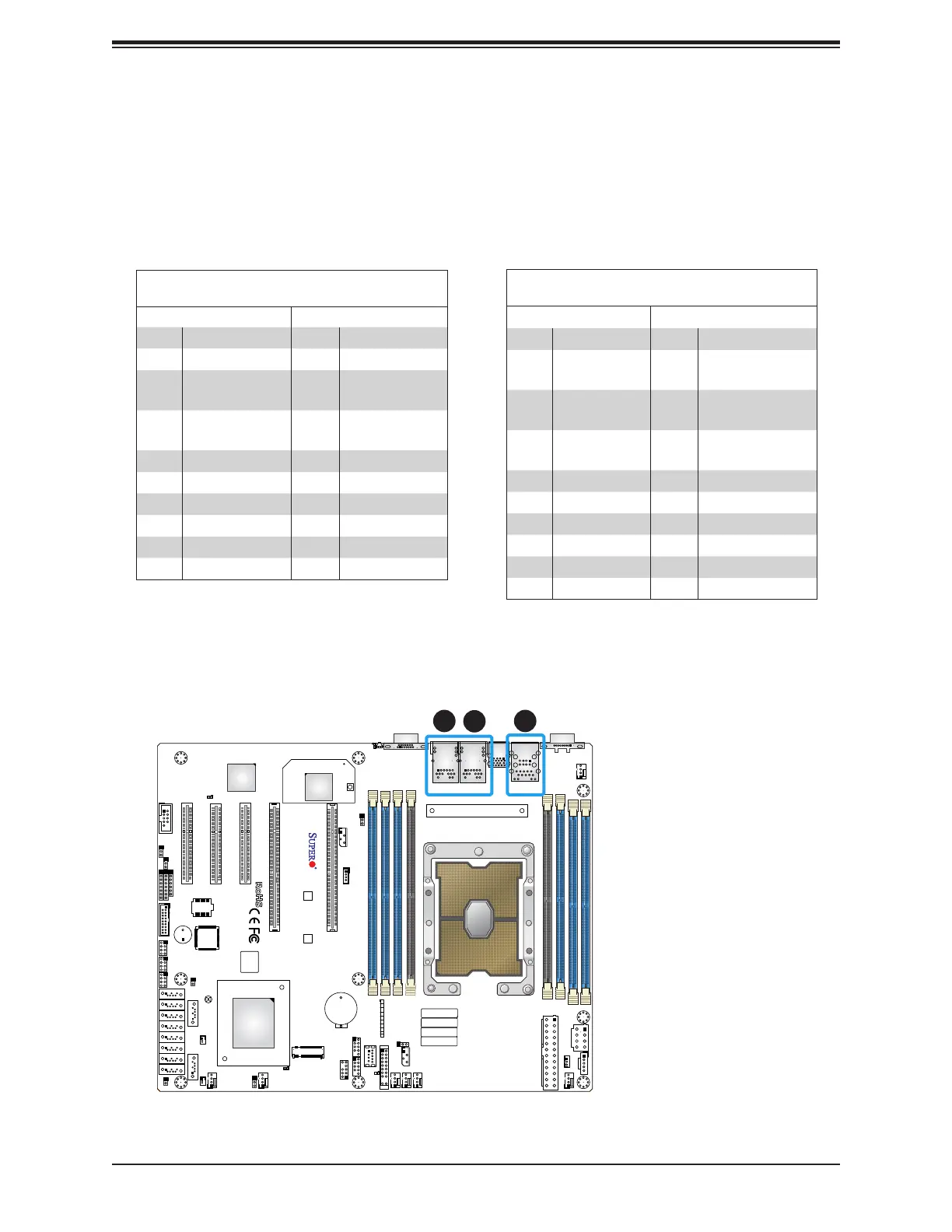

LAN Ports
Two Gigabit Ethernet ports (LAN1, LAN2) are located on the I/O back panel. In addition, a
dedicated IPMI LAN is located above the USB0/1 ports on the back panel. All of these ports
accept RJ45 cables. Please refer to the LED Indicator section for LAN LED information.
1
2 3
LAN Port
Pin Denition
Pin# Denition Pin# Denition
1 TD0- 11 P3V3_Dual
2 TD0+ 12 Act LED (Yellow)
3 TD1- 13
Link 1000
(Amber)
4 TD1+ 14
Link 100 LED
(Green)
5 TD2- 15 GND
6 TD2+ 16 GND
7 TD3- 17 GND
8 TD3+ 18 GND
9 COMMCT
10 GND
IPMI LAN
Pin Denition
Pin# Denition Pin# Denition
9 19 GND
10 TD0+ 20
Act LED
(Yellow)
11 TD0- 21
Link 100 LED
(Green)
12 TD1+ 22
Link 1000 LED
(Amber)
13 TD1- 23 SGND
14 TD2+ 24 SGND
15 TD2- 25 SGND
16 TD3+ 26 SGND
17 TD3-
18 GND
1. LAN1
2. LAN2
3. IPMI LAN
