Chapter 2: Installation

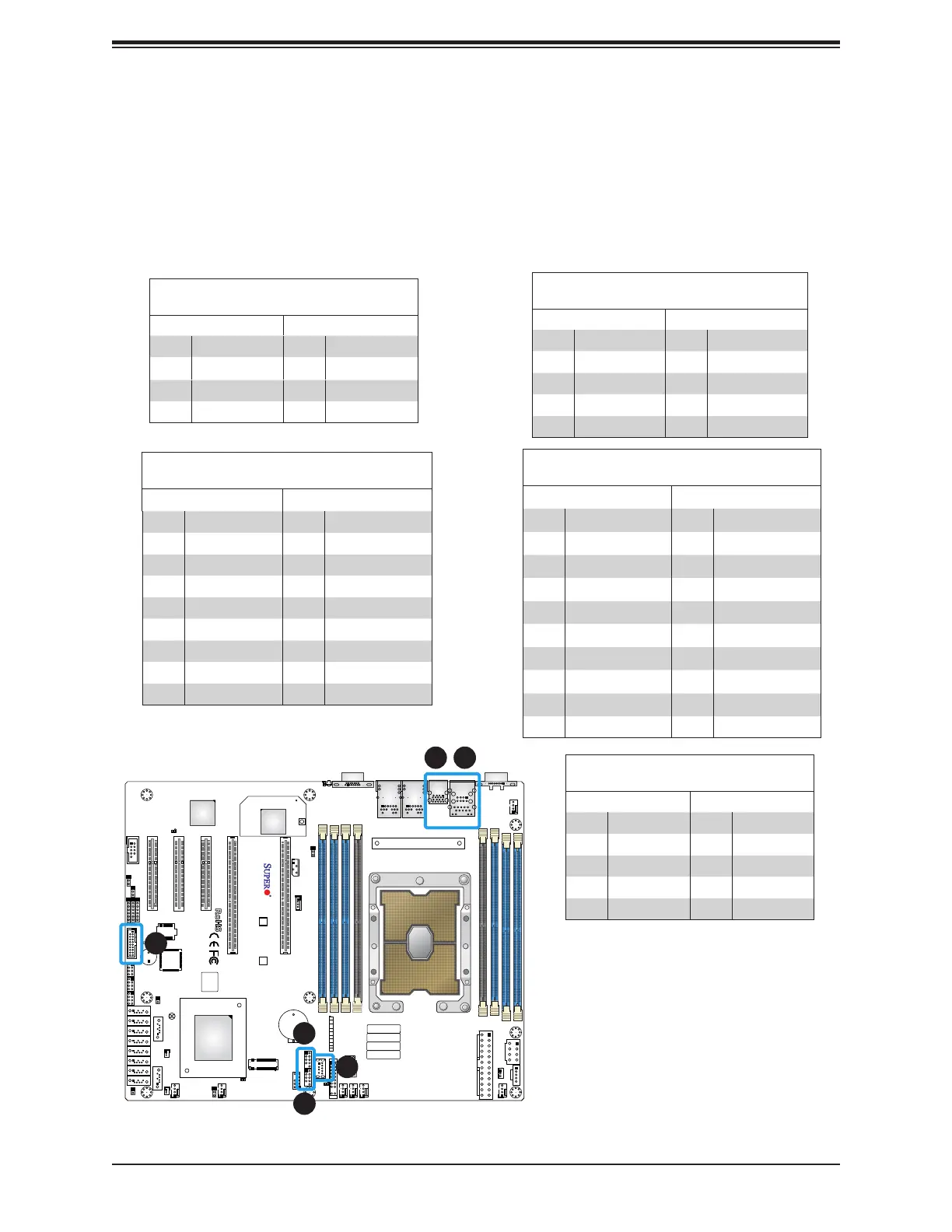

Universal Serial Bus (USB) Ports
There are two USB 2.0 ports (USB0/1) and two USB 3.0 ports (USB6/7) located on the I/O
back panel. The motherboard also has two front access USB 2.0 headers (USB2/3 and
USB4/5) and one front access USB 3.0 header (USB8/9). The USB10 header is USB 3.0
Type-A. The onboard headers can be used to provide front side USB access with a cable
(not included).
Back Panel USB 6/7 (3.0)
Pin Denitions
Pin# Denition Pin# Denition
A1 VBUS B1 Power
A2 D- B2 USB_N
A3 D+ B3 USB_P
A4 GND B4 GND
A5 Stda_SSRX- B5 USB3_RN
A6 Stda_SSRX+ B6 USB3_RP
A7 GND B7 GND
A8 Stda_SSTX- B8 USB3_TN
A9 Stda_SSTX+ B9 USB3_TP
Back Panel USB 0/1 (2.0)
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_N 6 USB_N
3 USB_P 7 USB_P
4 Ground 8 Ground
Front Panel USB 2/3, 4/5 (2.0)
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 2 +5V
3 USB_N 4 USB_N
5 USB_P 6 USB_P
7 Ground 8 Ground
9 Key 10 NC
Front Panel USB 8/9 (3.0)
Pin Denitions
Pin# Denition Pin# Denition
1
VBUS 19 Power
2
Stda_SSRX- 18 USB3_RN
3
Stda_SSRX+ 17 USB3_RP
4
GND 16 GND
5
Stda_SSTX- 15 USB3_TN
6
Stda_SSTX+ 14 USB3_TP
7
GND 13 GND
8
D- 12 USB_N
9
D+ 11 USB_P
10 x
Type A USB 10 (3.0)
Pin Denitions
Pin# Denition Pin# Denition
1 VBUS 5 SSRX-
2 USB_N 6 SSRX+
3 USB_P 7 GND
4 Ground 8 SSTX-
9 SSTX+
1. USB0/1
2. USB2/3
3. USB4/5
4. USB6/7
5. USB8/9
6. USB10
SAN MAC
DESIGNED IN USA
BIOS
LICENSE
X11SPi-TF
REV:1.02
IPMI CODE
MAC CODE
BAR CODE
