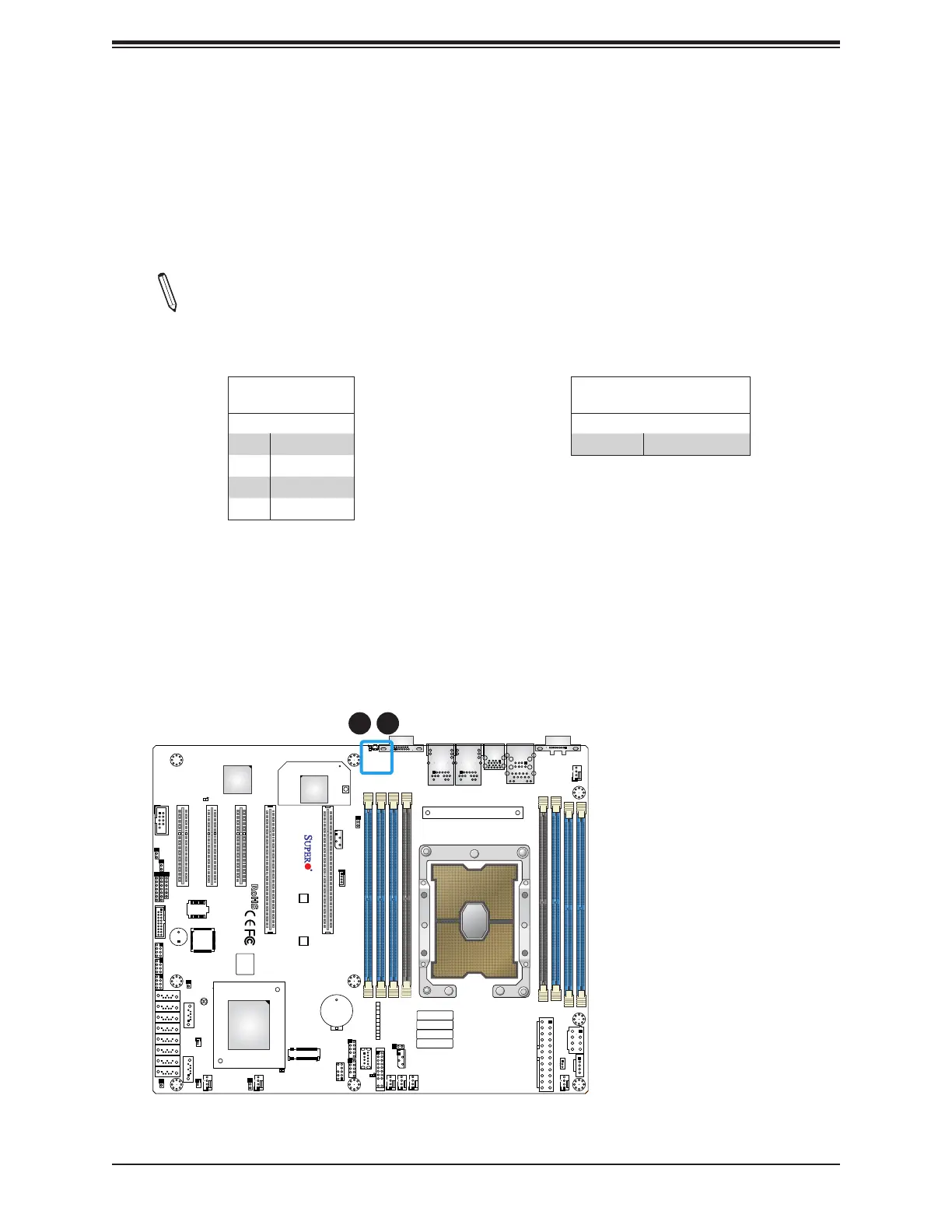

Unit Identier Switch/UID LED Indicator
A Unit Identier (UID) switch and an LED Indicator are located on the motherboard. The UID
switch is located at UID SW, which is next to the VGA port on the back panel. The UID LED
is located next to the switch. When you press the UID switch, the UID LED will be turned
on. Press the UID switch again to turn o󰀨 the LED indicator. The UID Indicator provides easy
identication of a system unit that may be in need of service.
Note: UID can also be triggered via IPMI on the motherboard. For more information
on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.
supermicro.com.
UID Switch
Pin Denitions
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Button In
UID LED
Pin Denitions
Color Status
Blue: On Unit Identied
1
1. UID Switch
2. UID LED
2
