Supermicro X9DRW-iF User Manual

Chapter 4: AMI BIOS
4-27
Gateway IP Address
This item displays the Gateway IP address for this computer. This should be in
decimal and in dotted quad form (i.e., 192.168.10.253).

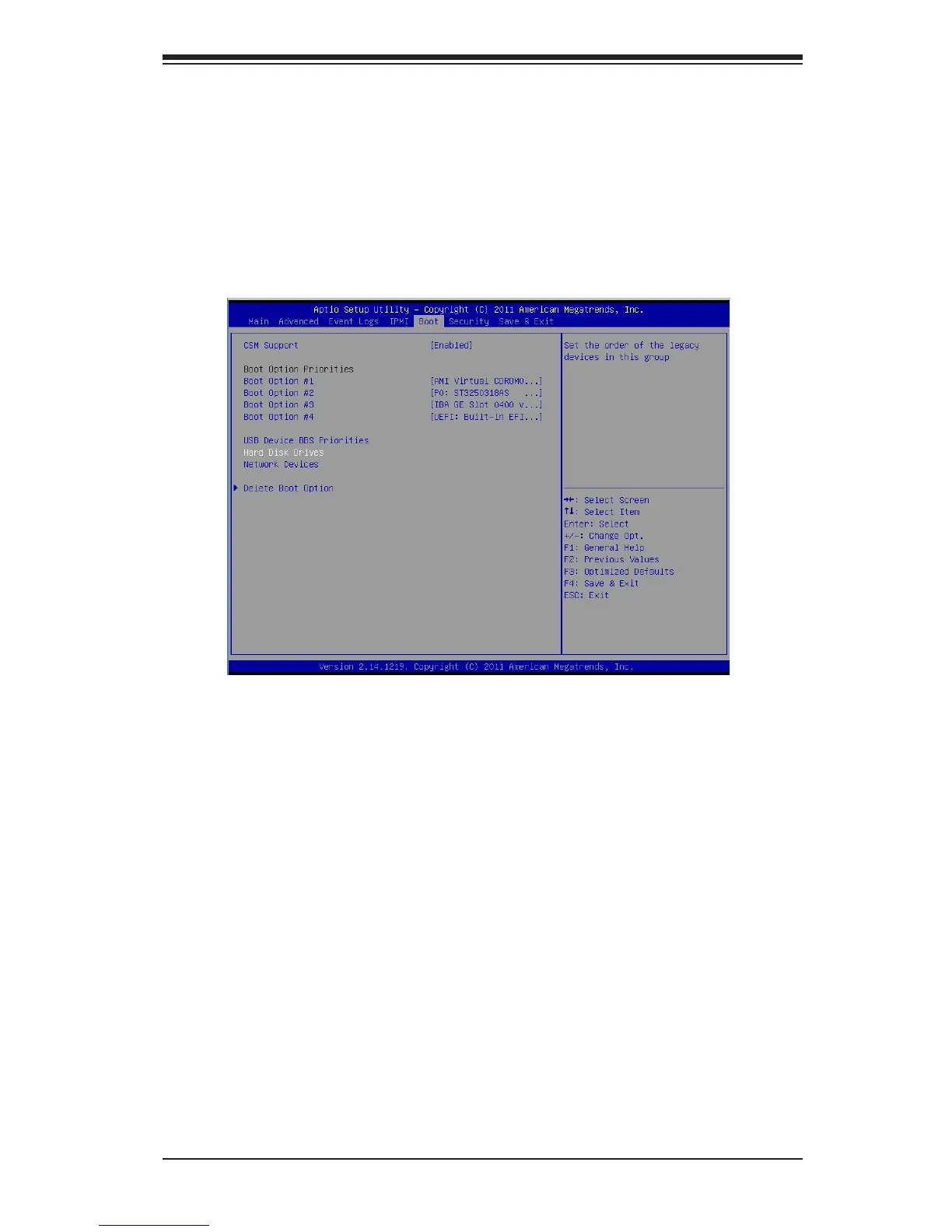

4-6 Boot
This submenu allows the user to congure the following boot settings for the
system.
CSM Support
Select Enabled to support the EFI Compatibility Support Module (CSM), which
provides compatibility support for traditional legacy BIOS for system boot. The op-
tions are Enabled, Disabled and Auto.
Boot Option Priorities
Boot Option #1~ Boot Option #4
This item allows the user to select the rst boot drive. Select a LAN device to
boot the system from the network connection. Select UEFI to boot the system
from the UEFI: Built-in EFI Shell. The options are LAN Device, UEFI: Built-in EFI
Shell, and Disabled.
USB Device BBS Priorities
Hard Disk Drives
Boot Option #1~ Boot Option #3
This item displays the rst boot device.

Supermicro X9DRW-iF Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Memory channels	Dual-channel
Maximum RDIMM memory	512 GB
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Maximum UDIMM memory	128 GB
Number of DIMM slots	16
Supported RDIMM module capacity	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I350
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Matrox G200
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Processor thermal power (max)	135 W
Processor number of cores supported	6, 8
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	305 mm
