4-28
X9DRW-3F/X9DRW-iF Motherboard User’s Manual
Network Drives
Boot Option #1
This item displays the rst boot device.
Delete Boot Options
Delete Boot Option
This item allows the user to select a boot device to delete from the boot priority
list. Select UEFI: Built-in EFI Shell to delete it from the boot priority list which will
prevent system boot from the UEFI Shell. The options are Select One to Delete
and UEFI: Built-in EFI Shell.

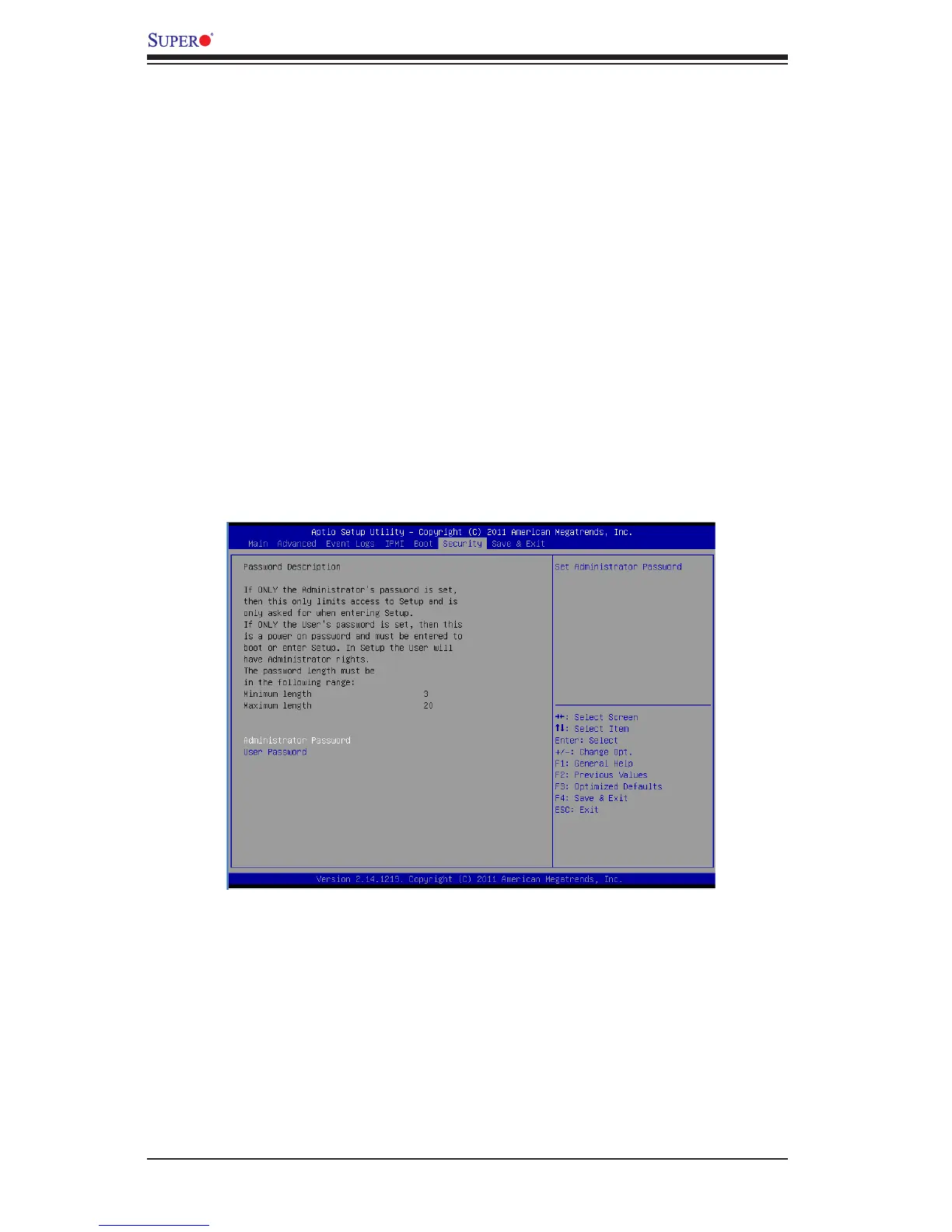

4-7 Security
This menu allows the user to congure the following security settings for the
system.
Administrator Password
Use this feature to set the Administrator Password which is required to enter the
BIOS setup utility. The length of the password should be from 3 characters to 20
characters long.
User Password
Use this feature to set a User Password which is required to log into the system
and to enter the BIOS setup utility. The length of the password should be from 3
characters to 20 characters long.
