X9DRW-3F/X9DRW-iF Motherboard User’s Manual
Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.
Flashing the wrong BIOS can cause irreparable damage to the system. In no event
shall the manufacturer be liable for direct, indirect, special, incidental, or consequential
damage arising from a BIOS update. If you have to update the BIOS, do not shut down
or reset the system while the BIOS is being updated to avoid possible boot failure.
4-2 Main Setup
When you rst enter the AMI BIOS Setup utility, you will enter the Main setup screen.
You can always return to the Main setup screen by selecting the Main tab on the

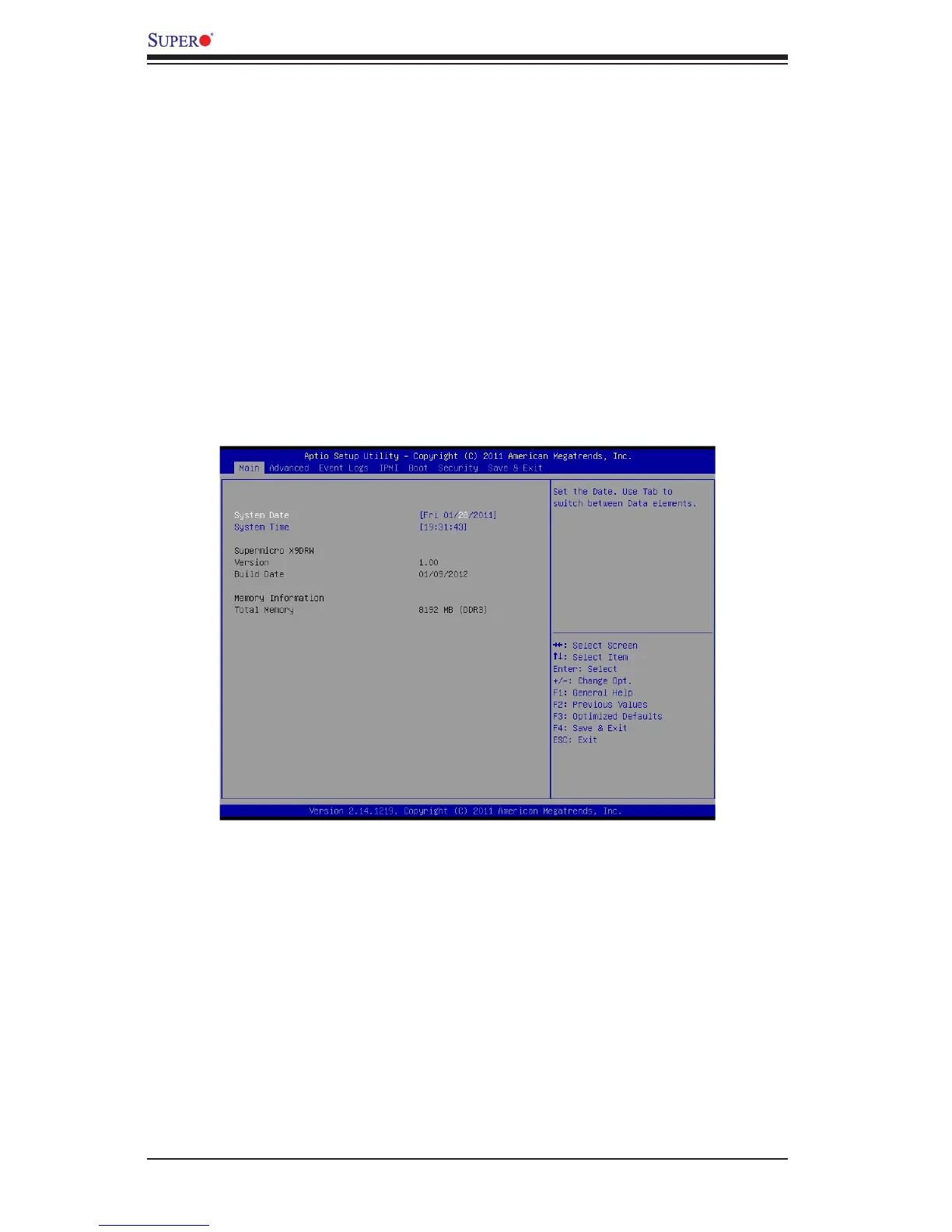

top of the screen. The Main BIOS Setup screen is shown below.
The AMI BIOS main menu displays the following information:
System Date
This item displays the system date in Day MM/DD/YY format (e.g. Wed 10/12/2011).
System Time
This item displays the system time in HH:MM:SS format (e.g. 15:32:52).
Supermicro X9DRW (Motherboard Model Name)
Version
This item displays the SMC version of the BIOS ROM used in this system.
Build Date
This item displays the date that the BIOS ROM was built.

Supermicro X9DRW-iF Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Memory channels	Dual-channel
Maximum RDIMM memory	512 GB
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Maximum UDIMM memory	128 GB
Number of DIMM slots	16
Supported RDIMM module capacity	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I350
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Matrox G200
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Processor thermal power (max)	135 W
Processor number of cores supported	6, 8
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	305 mm
