Chapter 4: AMI BIOS
4-3
Memory Information
Total Memory
This displays the amount of memory that is available in the system.

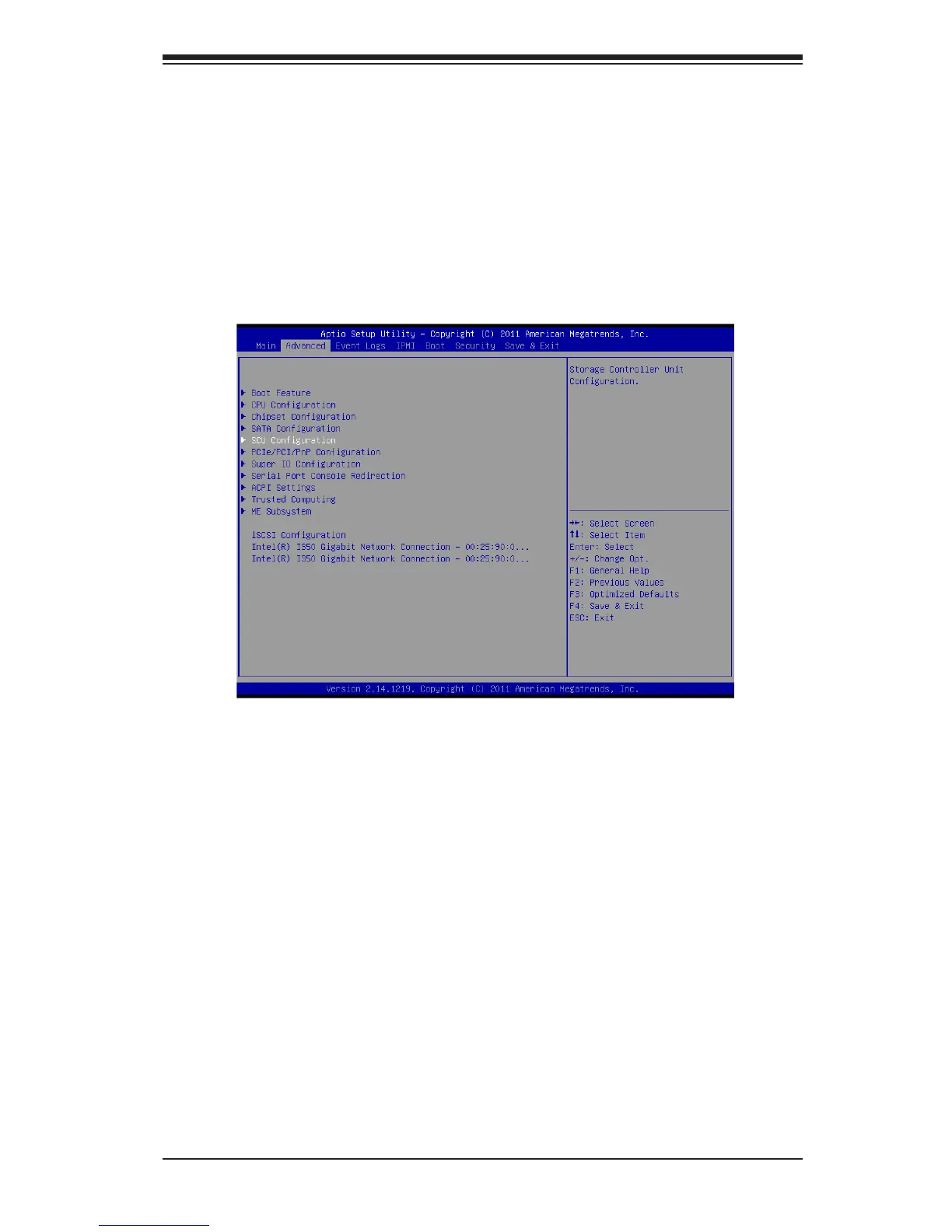

4-3 AdvancedSetupCongurations
Use the arrow keys to select Advanced Setup and press <Enter> to access the
following submenu items.
Boot Features
Quiet Boot
This feature allows the user to select bootup screen display between POST mes-
sages and the OEM logo. Select Disabled to display the POST messages. Select
Enabled to display the OEM logo instead of the normal POST messages. The op-
tions are Enabled and Disabled.
AddOn ROM Display Mode
Use this item to set the display mode for the Option ROM. Select Keep Current to
use the current AddOn ROM Display setting. Select Force BIOS to use the Option
ROM display mode set by the system BIOS. The options are Force BIOS and
Keep Current.
Bootup Num-Lock
Use this feature to set the Power-on state for the Numlock key. The options are
Off and On.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Supermicro X9DRW-iF and is the answer not in the manual?

Supermicro X9DRW-iF Specifications

General IconGeneral
PS/2 ports quantity0
IPMI LAN (RJ-45) portYes
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports2
PCI Express slots version3.0
Memory voltage1.35, 1.5 V
Memory channelsDual-channel
Maximum RDIMM memory512 GB
Supported memory typesDDR3-SDRAM
Supported memory clock speeds800, 1066, 1333, 1600 MHz
Maximum UDIMM memory128 GB
Number of DIMM slots16
Supported RDIMM module capacity16GB, 1GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity1GB, 2GB, 4GB, 8GB
BIOS typeAMI
ACPI version4.0
BIOS memory size128 Mbit
RAID levels0, 1, 5, 10
Supported storage drive interfacesSATA II, SATA III
Wi-FiNo
LAN controllerIntel® I350
Ethernet interface typeGigabit Ethernet
On-board graphics card modelMatrox G200
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)8 - 90 %
Supported QPI8 GT/s
Processor socketLGA 2011 (Socket R)
Intel Xeon seriesE5-2600
Processor manufacturerIntel
Processor thermal power (max)135 W
Processor number of cores supported6, 8
Component forServer
Motherboard chipsetIntel® C602
Sustainability certificatesRoHS
Weight and Dimensions IconWeight and Dimensions
Depth330 mm
Width305 mm
