Supermicro X9DRW-iF User Manual

2-44
X9DRW-3F/X9DRW-iF Motherboard User’s Manual
SP1
JPW3
JPW2
JPW4
JPB1
FAN2
FAN1
FAN4
FANA
FAN3
JPI2C1
LED3
LED1
COM2
JTAG OF CPLD
SXB1A
SXB1B: CPU PCI-E 3.0 x16 + x16
UID
SXB2: CPU2 PCI-E3.0 X16
LAN2
LAN1
USB2/3
USB0/1
IPMI-LAN
COM1
X9DRW-3F/iF
Rev.1.02
VGA
LAN
CTRL
BIOS
BMC
CTRL
JPW1
PHY
JPL1
B1 B2 A1 A2 B1 B2 A1 A2
SXB1C
JVRM_I2C2
JVRM_I2C1
JPG1
JIPMB1
JSTBY1
JSD1
JD1
JI2C1
JI2C2
JL1
JF1
I-SATA1
I-SATA0
JLPC1
JSM1
JSM2
T-SGPIO1
T-SGPIO2
I-SATA3
I-SATA2
I-SATA5
I-SATA4
JBAT1
JPME2
JWD1
JPME1
JP3
FANB
1
LED2
SATA /
USB4/5
PCH
JBT1
SCU0~3
SATA /
SCU4~7
JVR1
JUIDB
JOH1
P1-DIMMA1
P1-DIMMA2
P1-DIMMB1
P1-DIMMB2
P1-DIMMD2
P1-DIMMD1
P1-DIMMC2
P1-DIMMF1
P1-DIMME2
P1-DIMME1
P1-DIMMG1
P1-DIMMG2
P1-DIMMH1
P1-DIMMH2
CLOSE 1st
OPEN 1st
CPU1
CLOSE 1st
OPEN 1st
CPU2
P1-DIMMC1
P1-DIMMF2
Note: For more information on SATA HostRAID conguration, please refer
to the Intel SATA HostRAID User's Guide posted on our website @ http://
www.supermicro.com.
SATA/SCU
PinDenitions
Pin# Denition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA0
B. I-SATA1
C. I-SATA2
D. I-SATA3
E. I-SATA4
F. I-SATA5
G. SCU 0~3
(for X9DRW-
3F/iF)
H. SCU 4~7
(for X9DRW-
3F)

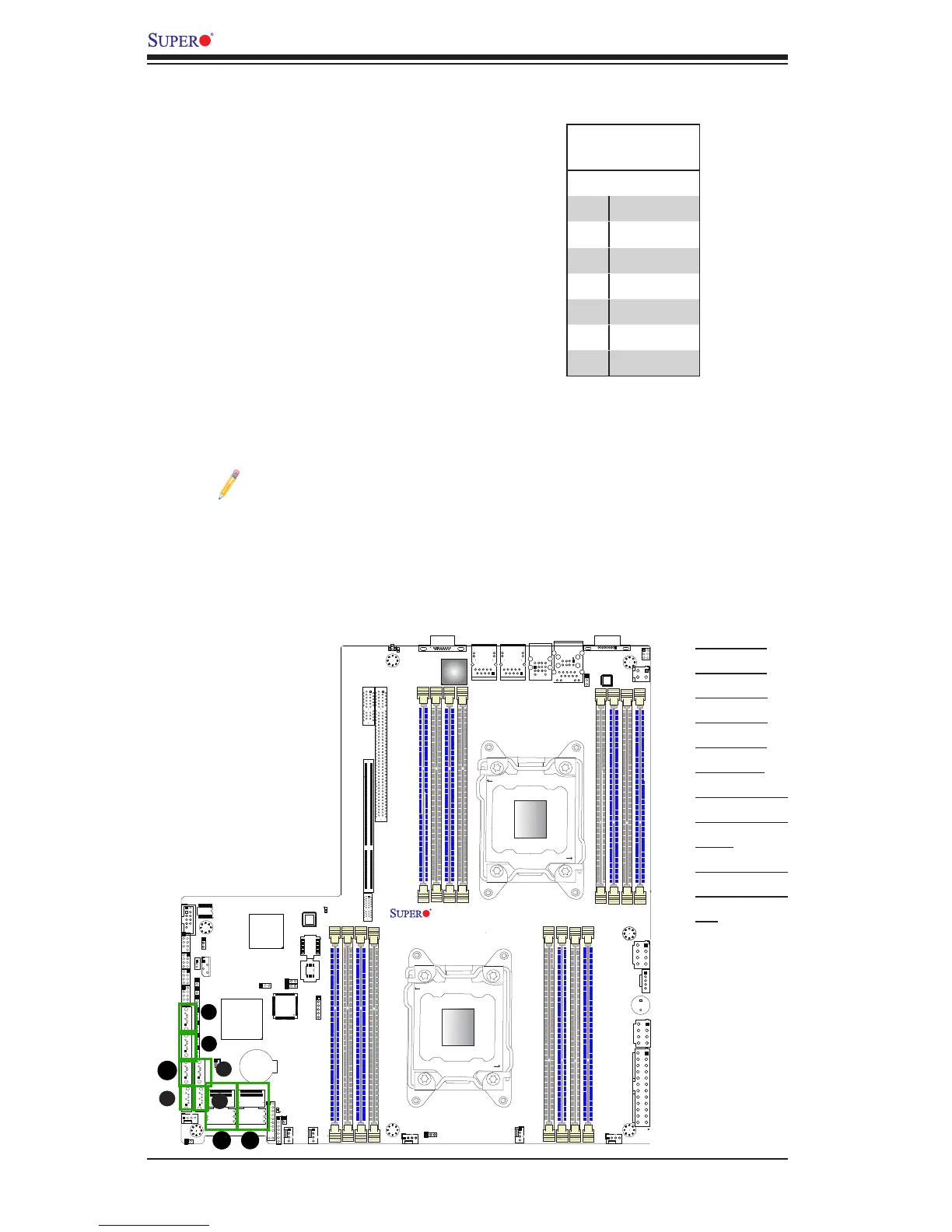

SATA/SCU Ports
There are six Serial ATA ports (I-SATA0~I-
SATA 5) located on the motherboard, in-
cluding four SATA2 ports and two SATA3
ports. There are also eight SCU ports
(0~3, 4~7) located on the X9DRW-3F, and
four SCU ports (SCU 0~3) located on the
X9DRW-iF. These ports provide serial-link
signal connections, which are faster than
the connections of Parallel ATA. See the
table on the right for pin denitions.
C
D
2-10 SATA/SCU Connections
F
A
B
G
H
E

Supermicro X9DRW-iF Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Memory channels	Dual-channel
Maximum RDIMM memory	512 GB
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Maximum UDIMM memory	128 GB
Number of DIMM slots	16
Supported RDIMM module capacity	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I350
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Matrox G200
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Processor thermal power (max)	135 W
Processor number of cores supported	6, 8
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	305 mm
