Chapter 2: Installation
2-7
2-4 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on
the label area. Also, improper CPU installation or socket/pin misalignment can cause
serious damage to the CPU or the motherboard that will require RMA repairs. Be sure
to read and follow all instructions thoroughly before installing your CPU and heatsink.
Notes:
•Make sure that you install the processor into the CPU socket before you
install the CPU heatsink.
•If you buy a CPU separately, make sure that you use an Intel-certied multi-
directional heatsink only.
•Make sure to install the system board into the chassis before you install
the CPU heatsink.
•When receiving a server board without a processor pre-installed, make sure
that the plastic CPU socket cap is in place and none of the socket pins are
bent; otherwise, contact your retailer immediately.
•Refer to the Supermicro website for updates on CPU support.
Installing the LGA2011 Processor

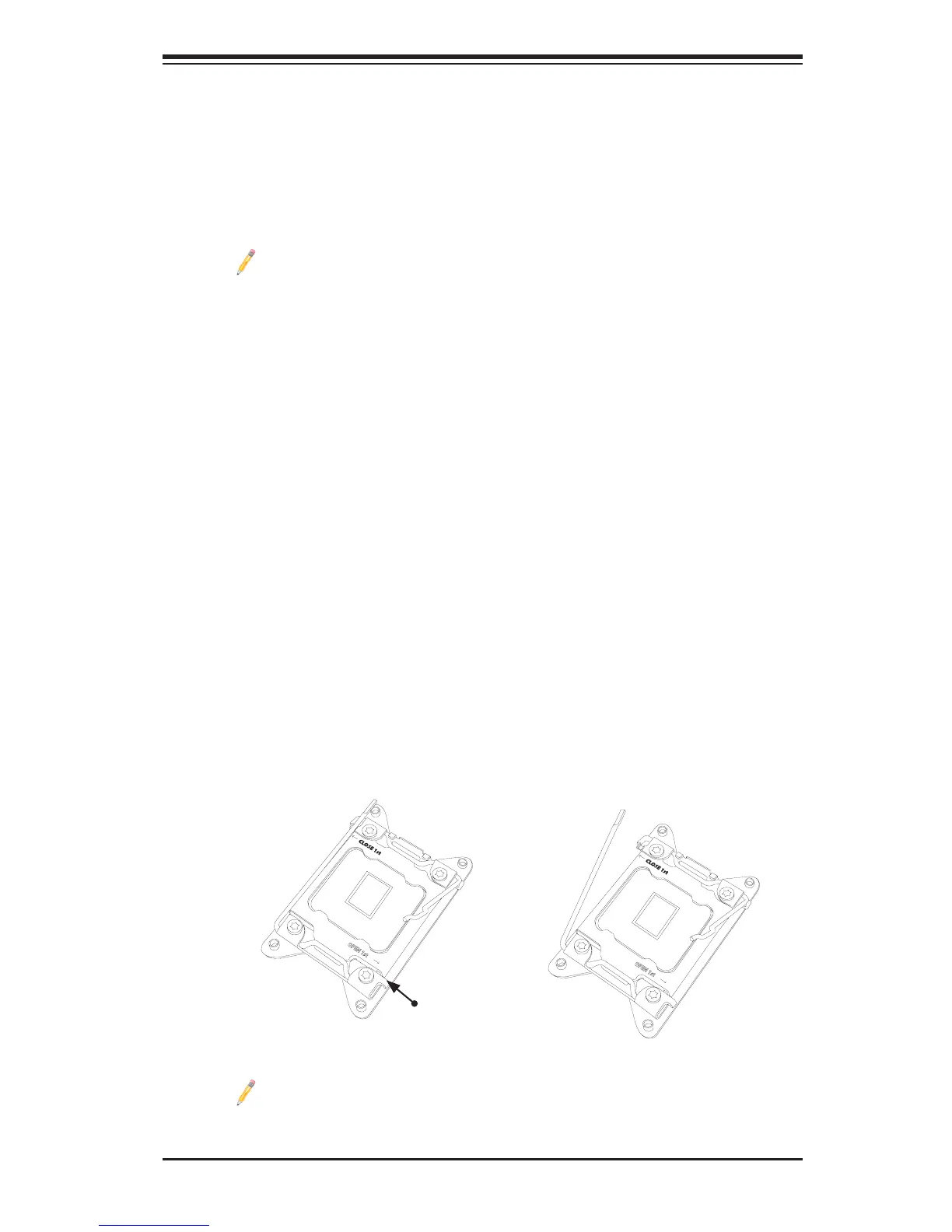

1. There are two load levers on the LGA2011 socket. To open the socket cover,
rst press and release the load lever labeled "Open 1st."
Note: All graphics, drawings, and pictures shown in this manual are for
illustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.
Press down on
load lever labeled
"Open 1st"
1
2
OPEN 1st
OPEN 1st
To Next Page
