Supero X10DAi User Manual

Chapter 2: Installation
2-27
JAUDIO1
JPL1
JPL2
BT1
CLOSE 1st
OPEN 1st
BIOS
BIOS
X10DAi/DAC/DAX
Rev. 1.01
Battery
PCH
LAN CTRL
LAN CTRL
Audio CTRL
SAS
CTRL
FAN7
FP CTRL
LE2
JS7
UARTO
CLOSE 1st
OPEN 1st
SAS CODE
J24
JF1
JSTBY1
FAN2
FAN6
FAN1
FANA
FAN4
FAN3
FAN5
DS1
SP1
J23
JWD1
JI2C1
J30
JPME2
JI2C2
J29
JBR1
J19
JPS1
T-SGPIO3
T-SGPIO1
T-SGPIO2
JTPM1
JSD2
JSD1
JL1
JSPDIF_IN1
JSPDIF_OUT1
JD1
JPP1 JPP0
JS5
JPWR2
JPWR1
JPI2C1
JTBT1
JS2
JS6
BIOS
LICENSE
MAC CODE
BAR CODE
USB0/1
AUDIO_FP
I-SATA5
MDIO
SAS4~7
USB9/10(3.0)
USB7/8(3.0)
TPM/PORT80
I-SATA8
I-SATA6
USB4
USB2/3
I-SATA7
I-SATA9
SAS0~3
CPU1 SLOT1 PCI-E 3.0 X16
I-SATA4
CPU2SLOT2 PCI-E 3.0 X8
I-SATA3
I-SATA2
I-SATA1
JBT1
CPU1 SLOT3 PCI-E 3.0 X16
I-SATA0
CPU2 SLOT4 PCI-E 3.0 X8
CPU2 SLOT5 PCI-E 3.0 X16
PCH SLOT6 PCI-E 2.0 X4 (IN X8)
P1 DIMMC2
P2 DIMME1
P1 DIMMC1
P2 DIMMF1
P1 DIMMD1
P1 DIMMD2
P2 DIMME2
P2 DIMMF2
P1 DIMMB2
P2 DIMMH2
P2 DIMMH1
P1 DIMMB1
P2 DIMMG2
P1 DIMMA1 P1 DIMMA2
CPU1
P2 DIMMG1
LAN1/2
USB5/6(3.0)
CPU2
Battery

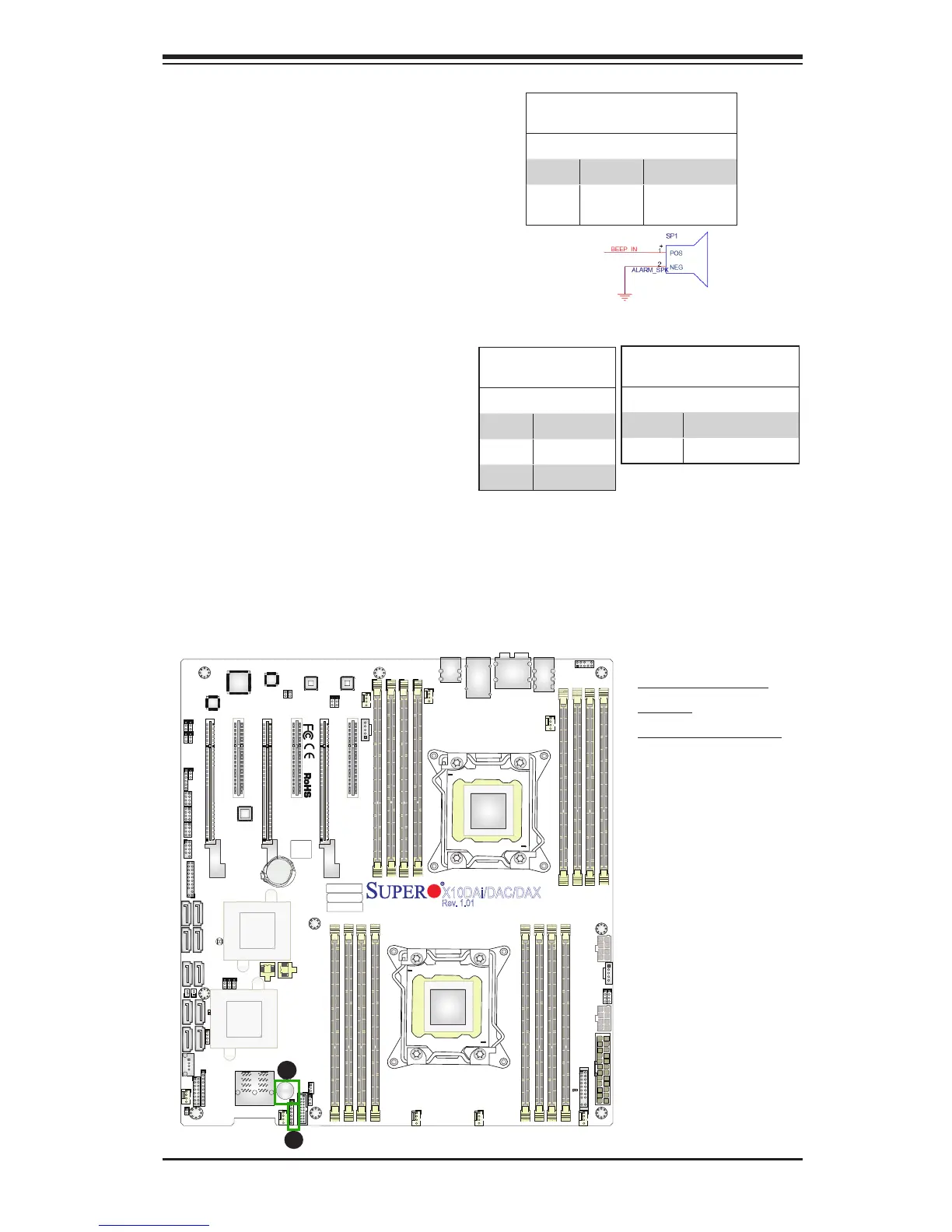

A. Internal Speaker
(Buzzer)
B. PWR LED/Speaker
Power LED/Speaker
On JD1 header, pins 1-3 are used for
power LED indication, and pins 4-7
are for the speaker. See the tables
on the right for pin denitions. Please
note that the speaker connector
pins (4-7) are used with an external
speaker. If you wish to use the on-
board (internal) buzzer, please close
pins 6-7 with a jumper.
Speaker Connector
Pin Settings
Pin# Denition
Pins 4-7 External Speaker
Pins 6-7 Internal Speaker
Internal Speaker
The Internal Speaker, located at SP1,
can be used to provide audible indica-
tions for various beep codes. See the
table on the right for pin denitions.
Refer to the layout below for the loca-
tions of the Internal Buzzer (SP1).
Internal Buzzer (SP1)
Pin Denition
Pin# Denitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
PWR LED
Pin Denitions
Pin# Denition
Pin 1 Anode (+)
Pin2 Cathode (-)
Pin3 NA
A
B
