2-16
X10DAi/X10DAC/X10DAX Motherboard User's Manual
X10DAi/DAC/DAX
Rev. 1.01
SAS CODE
BIOS
LICENSE
MAC CODE
BAR CODE

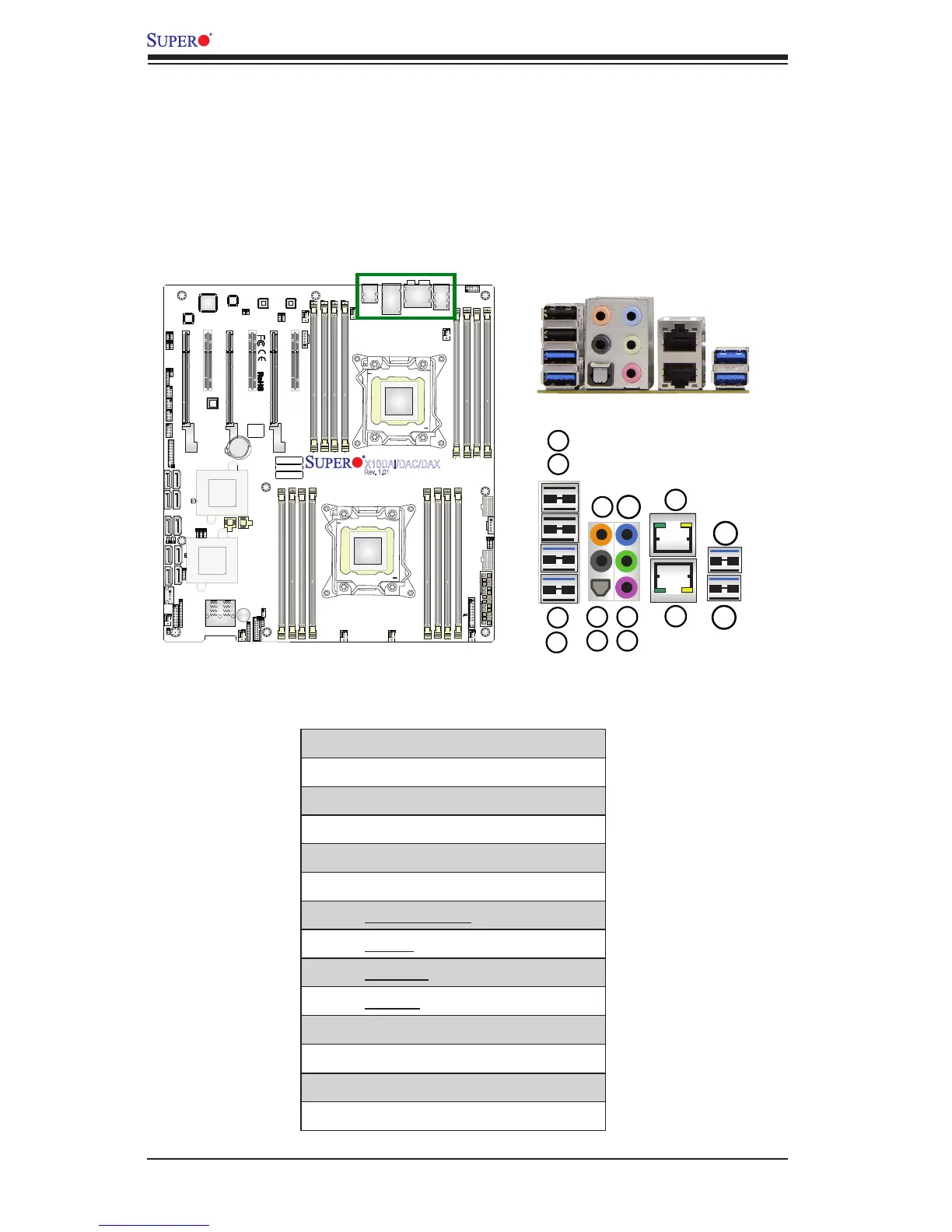

2-6 Control Panel Connectors and I/O Ports
The I/O ports are color coded in conformance with the industry standards. See
the picture below for the colors and locations of the various I/O ports.
Back Panel Connectors and I/O Ports
Back Panel I/O Port Locations and Denitions
1. Rear USB 3.0 Port 5
2. Rear USB 3.0 Port 6
3. Rear USB 2.0 Port 0
4. Rear USB 2.0 Port 1
5. SPDIF_Out
6. Surround_Out
7. CEN/LFE_Out
8. Mic_In
9. Line-Out
10. Line_In
11. Gigabit LAN 1
12. Gigabit LAN 2
13. Rear USB 3.0 Port 7
14. Rear USB 3.0 Port 8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
