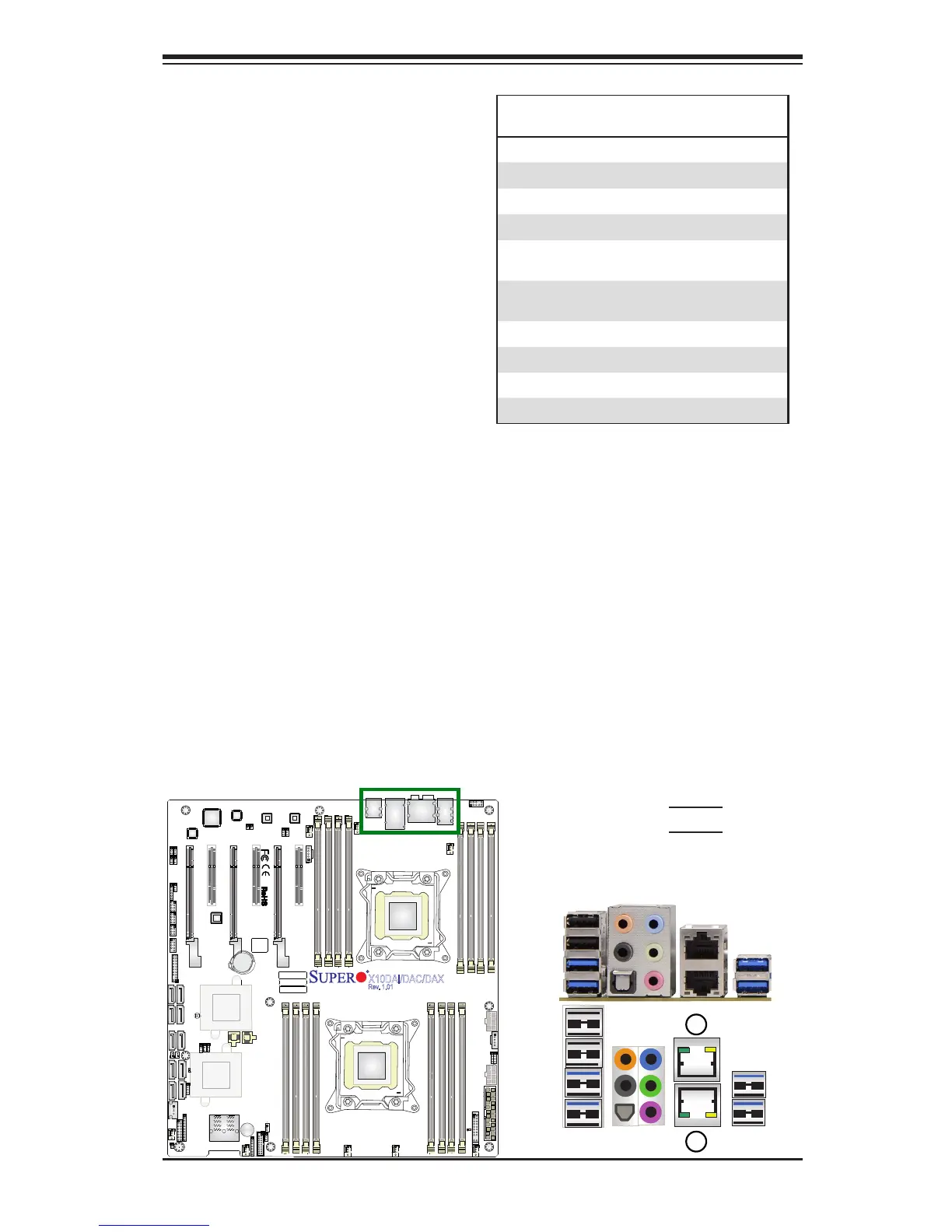

Chapter 2: Installation
2-17
1. LAN1
2. LAN2
Ethernet Ports
Two Gigabit Ethernet ports (LAN1/2)
are located on the I/O back panel on
the motherboard All these ports ac-
cept RJ45 type cables. (Note: Please
refer to the LED Indicator Section for
LAN LED information.)
LAN Ports
Pin Denition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED (Yel-
low, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)
X10DAi/DAC/DAX
Rev. 1.01
SAS CODE
BIOS
LICENSE
MAC CODE
BAR CODE
1
2
