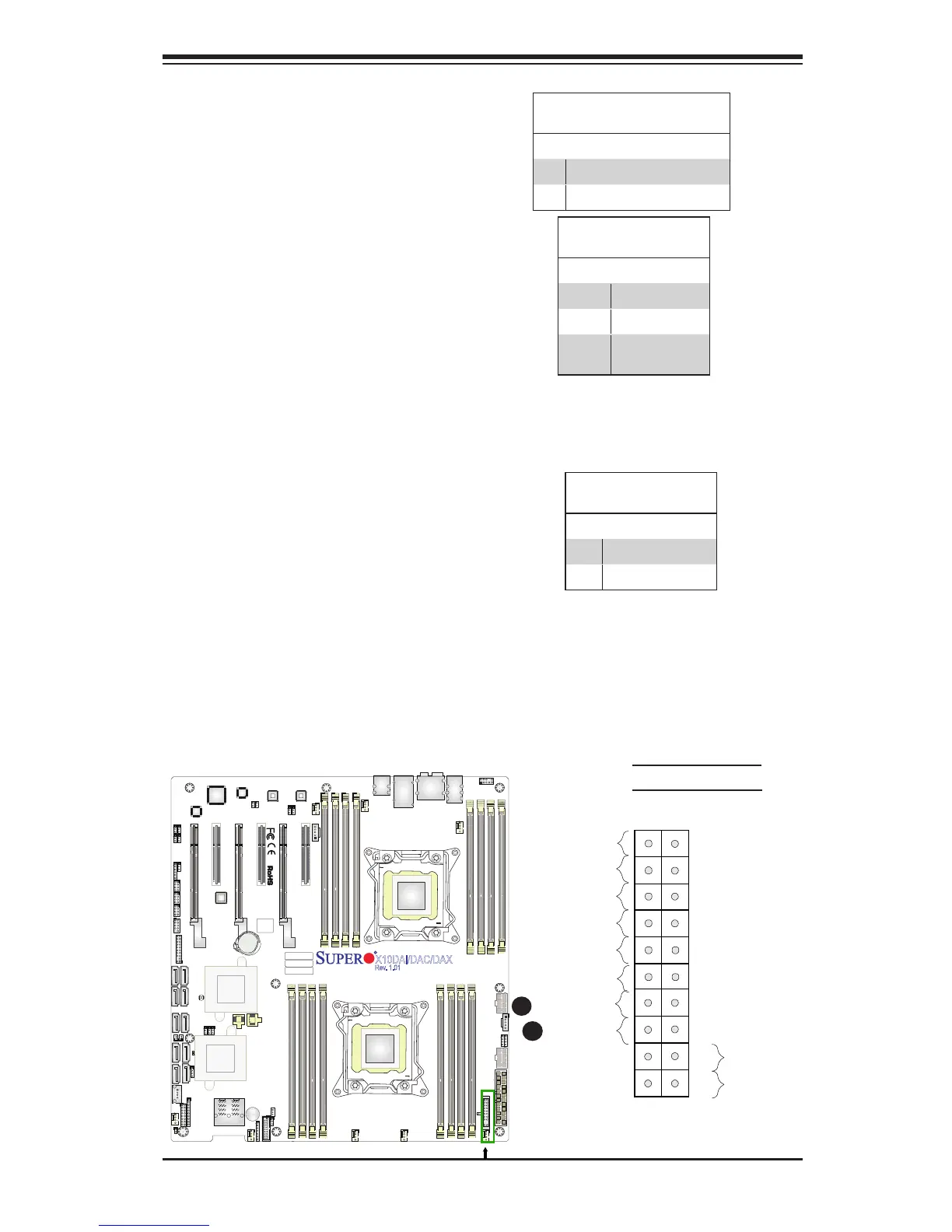

Power Fail LED
The Power Fail LED connection is
located on pins 5 and 6 of JF1. Re-
fer to the table on the right for pin
denitions.
PWR Fail LED
Pin Denitions (JF1)
Pin# Denition
5 3.3V
6 PWR Supply Fail
Overheat (OH)/Fan Fail LED
Connect an LED cable to pins 7 and 8
of JF1 to provide advanced warnings
of chassis overheating and fan failure.
Refer to the table on the right for pin
denitions.
OH/Fan Fail/PWR Fail LED
Pin Denitions (JF1)
Pin# Denition
7 Vcc
8 OH/Fan Fail LED)
OH/Fan Fail Indicator
Status
State Denition
Off Normal
On Overheat
Flash-
ing
Fan Fail
A. OH/Fail Fail LED
B. PWR Supply Fail
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED
A
B
JAUDIO1
JPL1
JPL2
BT1
CLOSE 1st
OPEN 1st
BIOS
BIOS
X10DAi/DAC/DAX
Rev. 1.01
Battery
PCH
LAN CTRL
LAN CTRL
Audio CTRL
SAS
CTRL
FAN7
FP CTRL
LE2
JS7
UARTO
CLOSE 1st
OPEN 1st
SAS CODE
J24
JF1
JSTBY1
FAN2
FAN6
FAN1
FANA
FAN4
FAN3
FAN5
DS1
SP1
J23
JWD1
JI2C1
J30
JPME2
JI2C2
J29
JBR1
J19
JPS1
T-SGPIO3
T-SGPIO1
T-SGPIO2
JTPM1
JSD2
JSD1
JL1
JSPDIF_IN1
JSPDIF_OUT1
JD1
JPP1 JPP0
JS5
JPWR2
JPWR1
JPI2C1
JTBT1
JS2
JS6
BIOS
LICENSE
MAC CODE
BAR CODE
USB0/1
AUDIO_FP
I-SATA5
MDIO
SAS4~7
USB9/10(3.0)
USB7/8(3.0)
TPM/PORT80
I-SATA8
I-SATA6
USB4
USB2/3
I-SATA7
I-SATA9
SAS0~3
CPU1 SLOT1 PCI-E 3.0 X16
I-SATA4
CPU2SLOT2 PCI-E 3.0 X8
I-SATA3
I-SATA2
I-SATA1
JBT1
CPU1 SLOT3 PCI-E 3.0 X16
I-SATA0
CPU2 SLOT4 PCI-E 3.0 X8
CPU2 SLOT5 PCI-E 3.0 X16
PCH SLOT6 PCI-E 2.0 X4 (IN X8)
P1 DIMMC2
P2 DIMME1
P1 DIMMC1
P2 DIMMF1
P1 DIMMD1
P1 DIMMD2
P2 DIMME2
P2 DIMMF2
P1 DIMMB2
P2 DIMMH2
P2 DIMMH1
P1 DIMMB1
P2 DIMMG2
P1 DIMMA1 P1 DIMMA2
CPU1
P2 DIMMG1
LAN1/2
USB5/6(3.0)
CPU2
Battery
