D-2
X10SRL-F
User
’s
Manual
D-1
IPMI G
UI Browser
T
o perform perform the Dual Boot Block through the IPMI GUI browser
, follow the
instructions below:

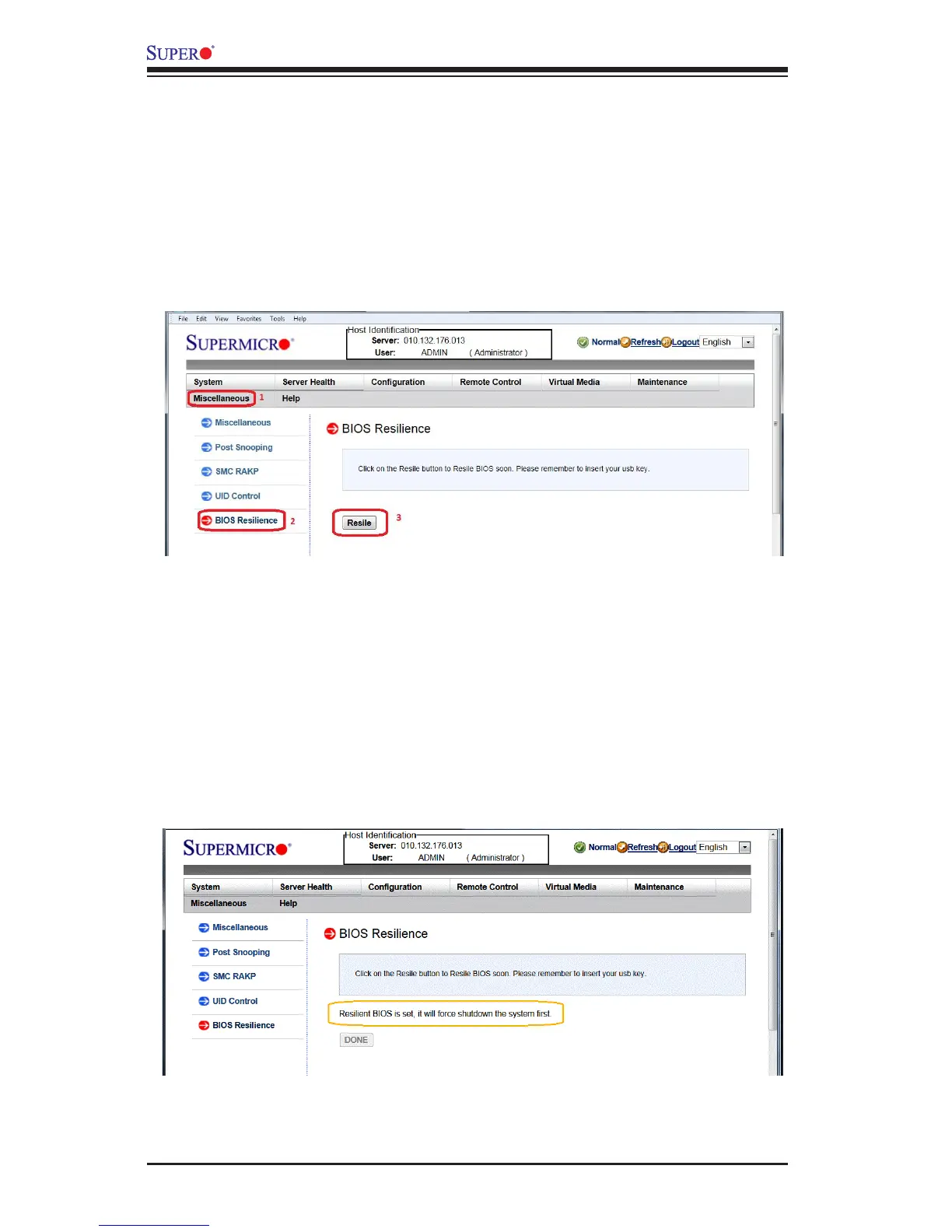

1.
After the IPMI GUI browser log-in, click on the Miscellaneous tab, then BIOS
Resilience, then the Resile button.
2.
IPMI prints out a message that indicates the secondary boot block activation.
If the system is on, IPMI forces it to shut down.
123
