X10SRL-F User’s Manual
Removing Memory Modules
Reverse the steps above to remove the DIMM modules from the motherboard.
Memory Support
The X10SRL-F supports eight ECC/Non-ECC DDR4 RDIMM/LRDIMM/UDIMM
at 1333/1600/1866/2133 MHz memory (1 DPC) up to 256GB RDIMM, 512GB
LRDIMM, or 64GB UDIMM. Populating these DIMM modules with a pair of memory
modules of the same type and size will result in interleaved memory, which will
improve memory performance. Please refer to the table below:
Memory Population Guidelines
Please follow the table below when populating the X10SRL-F.
DDR4 Unbuffered ECC (UDIMM) Memory
DIMM Slots per
Channel
DIMMs Populat-
ed per Channel
DIMM Type POR Speeds Ranks per DIMM (any
combination)
2 1 Unbuffered
DDR4
1333, 1600 Single Rank, Dual Rank
2 2 Unbuffered
DDR4
1333, 1600 Single Rank, Dual Rank
1
1

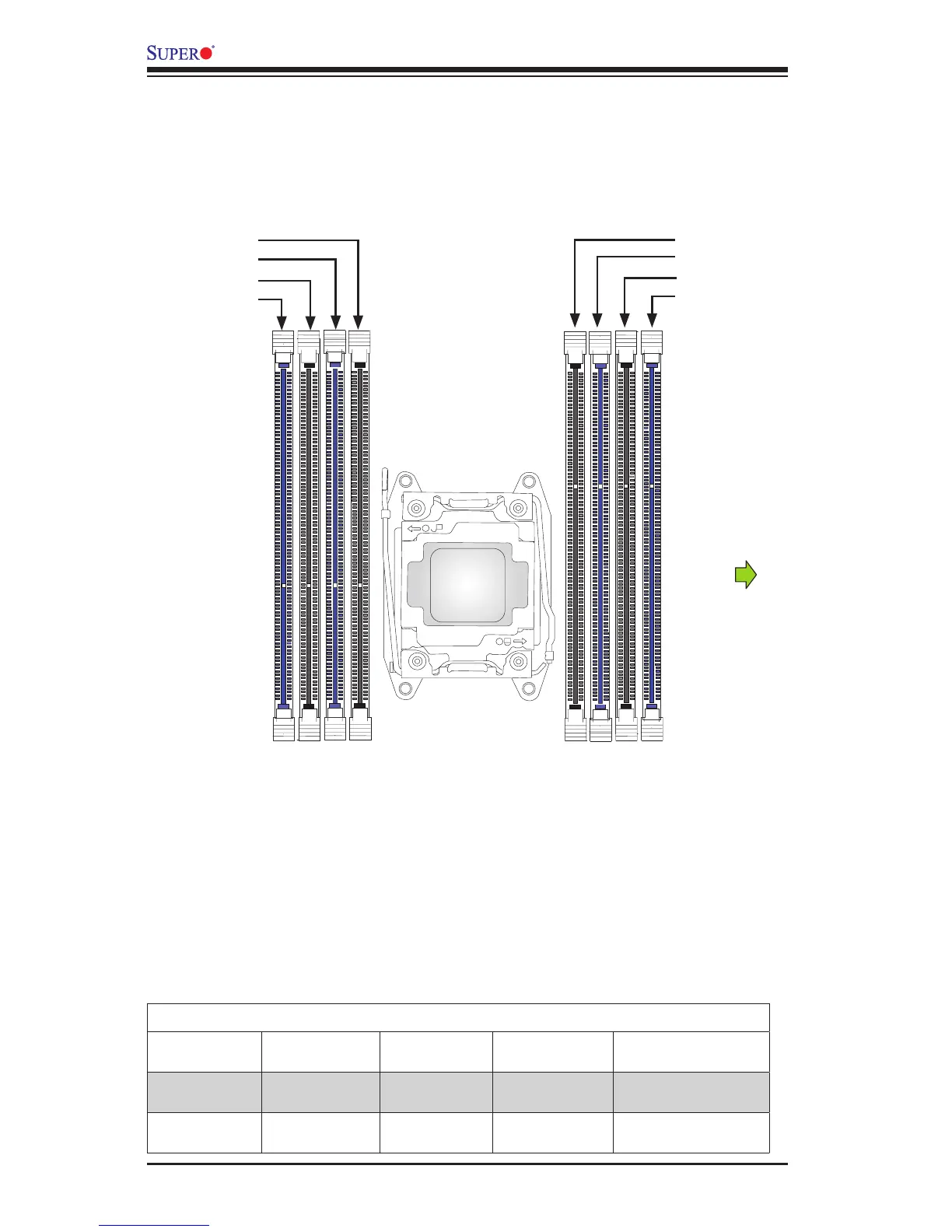

DIMMA1
DIMMA2
DIMMB1
DIMMB2
DIMMC1
DIMMC2
DIMMD1
DIMMD2
Edge of the motherboard
To Next Page
