Supero X10SRL-F User Manual

2-26
X10SRL-F User’s Manual
BIOS LICENSE
IPMI CODE
MAC CODE
BAR CODE
DESIGNED IN USA
1.01Rev:
X10SRL-F
1
+
LAN
CTRL
LAN
CTRL
BMC
JP3
JTPM1
JF1
JD1
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
JI2C2
JI2C1
JBR1
JPL2
JPL1
JVR1
JSD1
JSD2
JIPMB1
JPWR1
UID LED - LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I_SATA4
I-SATA0
I-SATA1I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
CPU
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8(IN X16)
USB0/1
DIMMC2
USB8/9
USB6/7
USB2/3(3.0)
LAN1
DIMMA2 DIMMA1
USB10(3.0)
LAN2
USB4/5
CPU SLOT2 PCI-E 3.0 X4(IN X8) PCH SLOT1 PCI-E 2.0 X4(IN X8)
COM2
COM1
DIMMB2 DIMMB1
DIMMD2
DIMMD1
IPMI_LAN
UID - SW
5V STBY
USB11(3.0)
IPMI
VGA
CPU SLOT7 PCI-E 3.0 X8
DIMMC1
CPU SLOT3 PCI-E 3.0 X4(IN X8)
CPU SLOT6 PCI-E 3.0 X8(IN X16)
Intel PCH
1
1

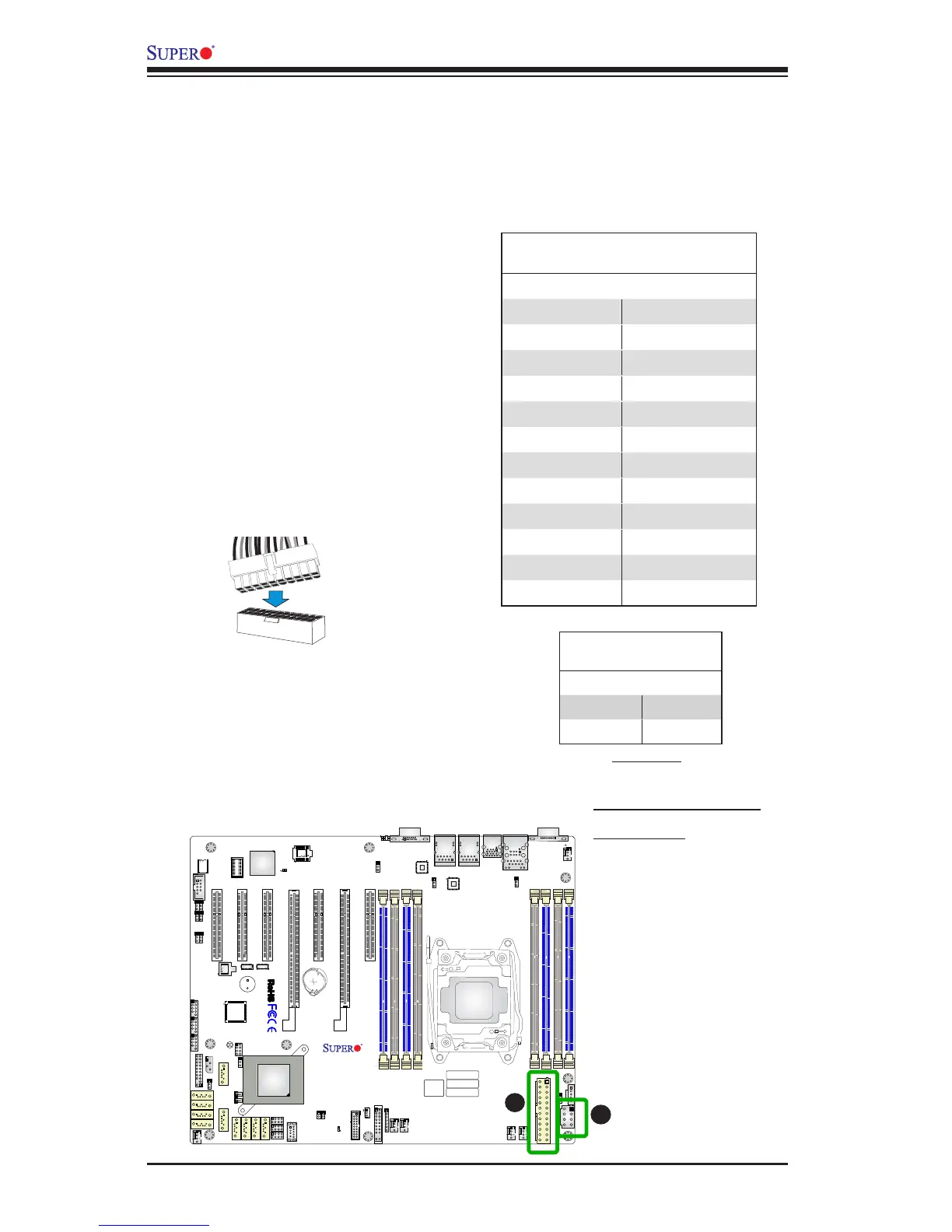

2-7 Connecting Cables
This section provides brief descriptions and pin-out denitions for onboard headers
and connectors. Be sure to use the correct cable for each header or connector.
For information on Backpanel USB and Front Panel USB ports, refer to page 2-17.
A. 24-Pin ATX Main PWR
B. 8-Pin PWR
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 GND 3 GND
16 PS_ON 4 +5V
17 GND 5 GND
18 GND 6 +5V
19 GND 7 GND
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 GND 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR
Connectors (J24 & JPWR1)
The 24-pin main power connector
(J24) is used to provide power to the
motherboard. The 8-pin CPU PWR
connector (JPWR1) is also required
for the processor. These power
connectors meet the SSI EPS 12V
specication. See the table on the
right for pin denitions.
24-Pin Main PWR
A
B
