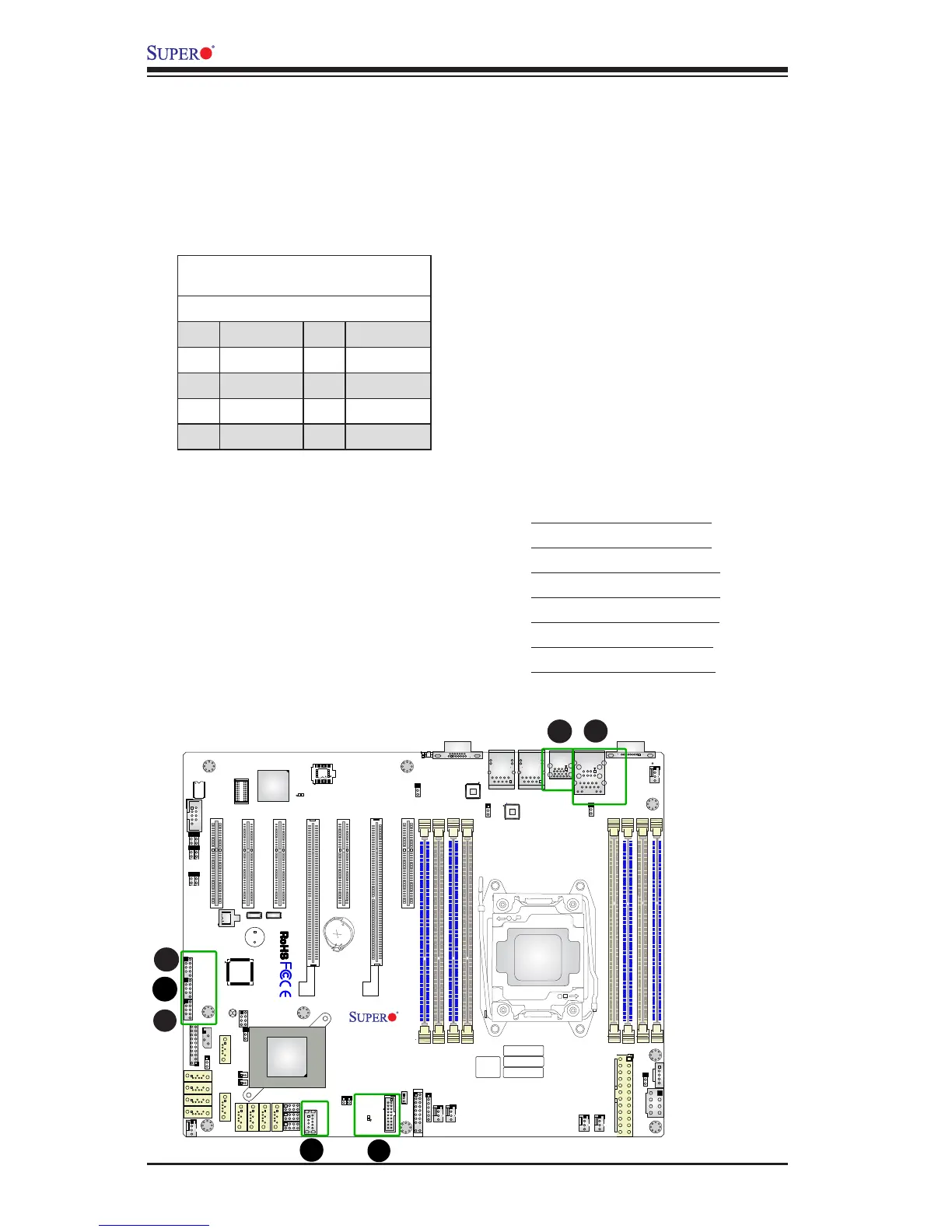

A. Backpanel USB 2.0 #0/1
B. Backpanel USB 3.0 #2/3
C. Front Panel USB 2.0 #4/5
D. Front Panel USB 2.0 #6/7
E. Front Panel USB 2.0 #8/9
F. Front Panel USB 3.0 #10
G. Front Panel USB 3.0 #11
Universal Serial Bus (USB)
Four Universal Serial Bus ports (USB 3.0 ports 2/3 and USB 2.0 ports 0/1) are
located on the I/O back panel. In addition, three USB 2.0 headers (USB 4/5, 6/7,
8/9), and two USB 3.0 connectors (USB 10, USB 11) are also located on the
motherboard to provide USB 3.0 support using USB cables (not included). See the
tables below for pin denitions.
Front Panel USB (2.0) 4/5, 6/7, 8/9
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
A
C
E
B
F
D
G

Supero X10SRL-F Specifications

General

Brand	Supero
Model	X10SRL-F
Category	Motherboard
Language	English
