Supero X10SRL-F User Manual

2-20
X10SRL-F User’s Manual
BIOS LICENSE
IPMI CODE
MAC CODE
BAR CODE
DESIGNED IN USA
1.01Rev:
X10SRL-F
1
+
LAN
CTRL
LAN
CTRL
BMC
JP3
JTPM1
JF1
JD1
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
JI2C2
JI2C1
JBR1
JPL2
JPL1
JVR1
JSD1
JSD2
JIPMB1
JPWR1
UID LED - LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I_SATA4
I-SATA0
I-SATA1I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
CPU
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8(IN X16)
USB0/1
DIMMC2
USB8/9
USB6/7
USB2/3(3.0)
LAN1
DIMMA2 DIMMA1
USB10(3.0)
LAN2
USB4/5
CPU SLOT2 PCI-E 3.0 X4(IN X8) PCH SLOT1 PCI-E 2.0 X4(IN X8)
COM2
COM1
DIMMB2 DIMMB1
DIMMD2
DIMMD1
IPMI_LAN
UID - SW
5V STBY
USB11(3.0)
IPMI
VGA
CPU SLOT7 PCI-E 3.0 X8
DIMMC1
CPU SLOT3 PCI-E 3.0 X4(IN X8)
CPU SLOT6 PCI-E 3.0 X8(IN X16)
Intel PCH
1
1

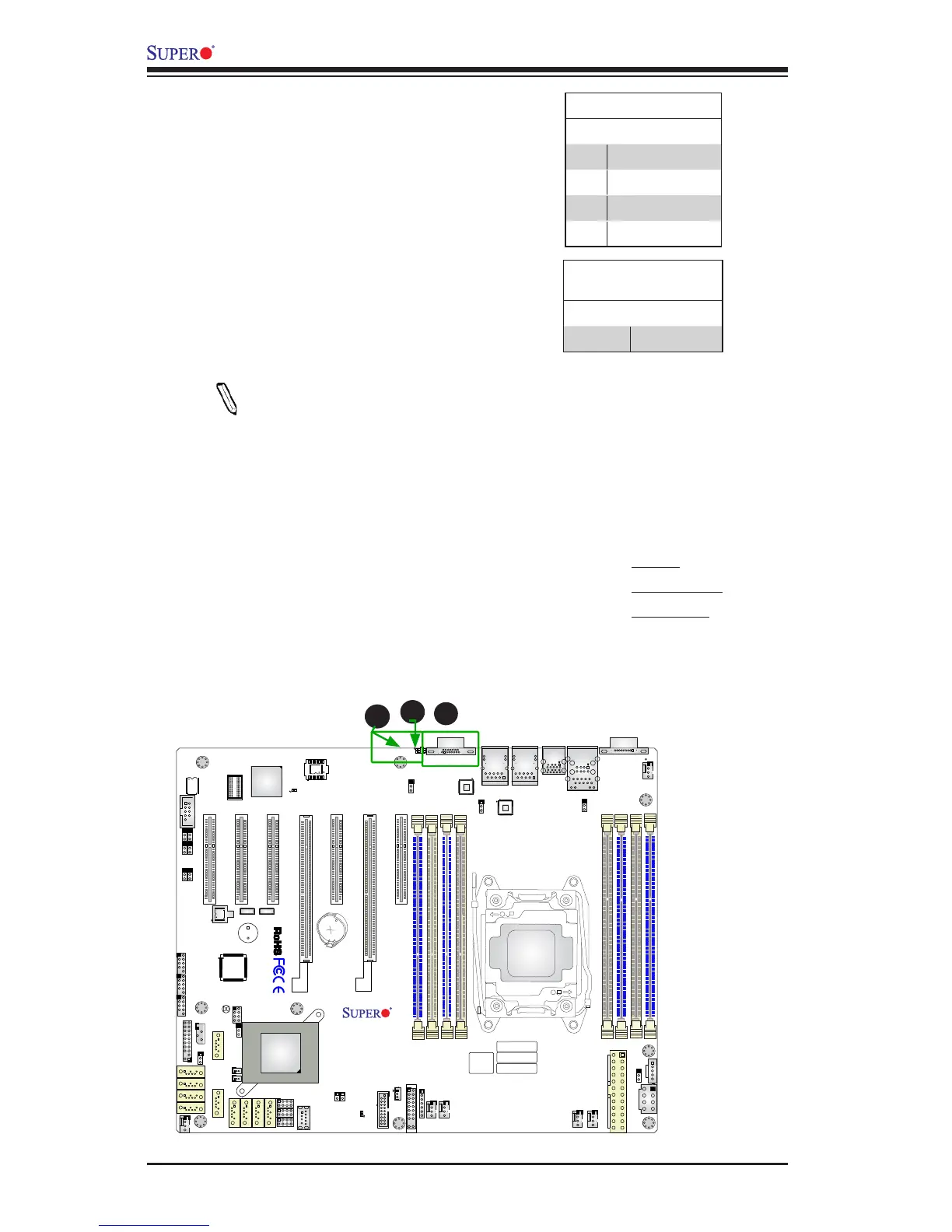

A. VGA
B. UID Switch
C. UID LED
A
B
C
Unit Identier Switch/UID LED Indicator
A Unit Identier (UID) switch and an LED
Indicator are located on the motherboard.
The UID switch is located next to the VGA
port on the backplane. The UID LED (LE1)
is located next to the UID switch. When you
press the UID switch, the UID LED will be
turned on. Press the UID switch again to
turn off the LED indicator. The UID Indicator
provides easy identication of a system unit
that may be in need of service.
Note: UID can also be triggered
via IPMI on the motherboard. For
more information on IPMI, please
refer to the IPMI User's Guide
posted on our website @ http://
www.supermicro.com.
UID Switch
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Button In
UID LED
Status
Color/State Status
Blue: On Unit Identied
VGA Port
The onboard VGA port is located next to
LAN Ports 1/2 on the I/O backpanel. Use
the connection for VGA display.
